Efficacy of Yttrium-90 Time-of-Flight PET/CT in Post Radioembolization Imaging of Microsphere Biodistribution in Radiosynovectomy

Introduction

Yttrium-90 (90Y) is a pure beta emitter with Maximum energy of 2.27 MeV and Mean energy of 0.935 MeV. It has average soft-tissue range of 3.6 mm and the physical half- life of 2.7 days.

While 90Y is traditionally considered to be a pure β emitter, there is also a minor decay branch, resulting in the e+e- creation [1] which can facilitate PET imaging. Despite relatively low administered 90Y activity and delayed imaging at 24h, high resolution PET images in a

90Y bremsstrahlung scintigraphy suffers from a low spatial resolution, ranging between 11 to 15 mm depending on the choice of energy window, collimator, and image processing [2, 3, 4] (Figure1).

pattern concordant with bremsstrahlung imaging can be obtained. PET/CT imaging following 90Y radiation synovectomy is feasible and would be useful in further delineating the location of the activity seen on bremsstrahlung imaging. This technique may also help to predict treatment response or potential local complications.

Click to enlarge

This is due to its inherent technical limitation as a form of indirect imaging of a continuous scatter radiation spectrum without a pronounced photo-peak, resulting in a coarse representation of the microsphere bio distribution. 90Y bremsstrahlung activity on SPECT/CT often appears smooth and diffuse, with ill-defined margins, which are difficult to distinguish from closely adjacent activity foci. As a result, assessment of activity within sub centimeter tumors or tumor vascular thrombosis are often suboptimal on 90Y bremsstrahlung SPECT/CT. Quantitatively, 90Y bremsstrahlung scintigraphy is largely inaccurate, despite compensation techniques for attenuation, scatter, and collimator- detector response, making it unsuitable for dose– response analysis [5, 6, 7].

Positron emission tomography with integrated computed tomography (PET/CT) represents a technological leap from 90Y bremsstrahlung SPECT/CT, both qualitatively and quantitatively, allowing direct imaging of 90Y microspheres. Although 90Y is predominantly a β−emitter, coincidence imaging of 90Y is possible because of a minor decay branch to the 0+ first excited state of zirconium90 followed by β−β+ internal pair production at a very low branching ratio of 31.86 ± 0.47 × 10−6 [8, 9, 10, 11]. However, the clinical application of 90Y PET/CT has been fraught with challenges.

Today’s time of flight PET/CT scanners uses lutetium based crystals due to its superior timing resolution. Such crystals, such as lutetium- yttrium- oxyortho silicate (LYSO), contain 2.6% of naturally occurring lutetium176 (176Lu) which results in a background activity of intrinsic true and random coincidences which cannot be distinguished from coincidences by an external radioactive source [12, 13, 14, 15]. This issue was previously International Journal of Nuclear Medicine & Radioactive Substances

thought to be clinically irrelevant until recent interest in 90Y PET/CT. In addition, the low positron activity of 90Y and the intrinsic activity of 176Lu can have an impact on scatter correction. For time of flight PET, several authors have computed the scatter based on the PET activity [16, 17, 18]. Since the scatter correction algorithm depends on the PET activity map, which is poor due to low signal and intrinsic noise, scatter correction will be negatively affected. The unfavorable combination of intrinsic background activity and a very low positron fraction result in reconstructed 90Y PET/CT images which at the outset, seem un-interpretable due to high background noise.

Despite this, several institutions have published encouraging early experiences using 90Y time of flight PET for post radioembolization imaging [19, 20, 21]. These early reports suggest that despite background noise, it is possible to obtain high resolution images of microsphere biodistribution using conventional time of flight PET scanners, with only minor adjustments to scan technique and image reconstruction such as PET acquisition time, number of bed positions, reconstruction iterations, and subsets.

From a clinical standpoint, 90Y PET provides a superior post infusion evaluation of treatment technical success owing to its improved resolution. Absorbed dose maps generated from quantitative PET data can be used to predict treatment efficacy and manage patient follow up. For patients who receive multiple treatments, this information can also be used to provide patient specific treatment planning for successive therapies, potentially improving response. The broad utilization of 90Y PET-CT has the potential to provide a wealth of dose–response information, which may lead to the development of improved radioembolization treatment planning models in the future. Furthermore, after radiation synovectomy and microsphere treatment a delayed PET-CT acquisition at 24h can assist to investigate potential extra- articular radiotracer extravasation.

The investigation was a pilot methodology study attempting to investigate feasibility of 90Y PET/CT imaging as a proposed technique, to improve overall detection accuracy of 90Y distribution and leakage post radiation synovectomy. Furthermore, to compare the ability of 90Y PET/CT versu 90Y bremsstrahlung SPECT/CT in providing conclusive information about the presence or absence of 90Y activity within the target area.

Materials and Methods

The radiosynovectomy technique involves insertion of an 18-gauge needle through the medial aspect of the knee positioned at 45 degrees flexion, aspiration of joint fluid, followed by injection of yttrium-90 citrate. Corticosteroid is next injected and flushed with saline. The knee is then tightly bandaged (Figure 2).

Click to enlarge

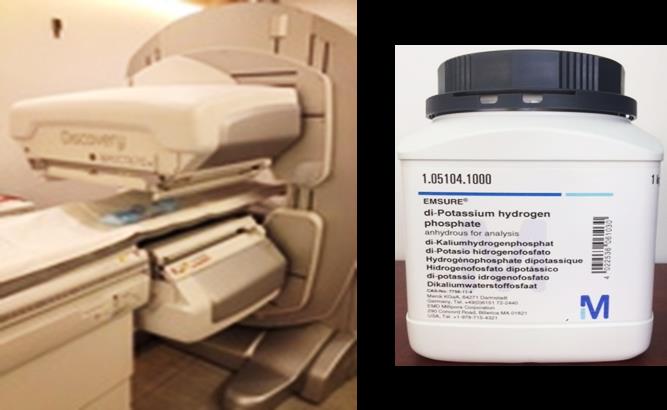

At the initial stage of our study a small neck phantom with the composition equivalent to soft tissue were utilised and a vial containing 185 MBq 90YCl3 (the same amount as a patient dose) was embedded inside the phantom to be imaged. At the later stage an in-house phantom to imitate the knee region with the compartments that is mimicking the bone and soft tissue scattering – attenuation was developed using saline solution (with the atomic number close to soft tissue) and Dipotassium Hydrogen Phosphate (K2HPO4) that has the atomic number (Z) close to bone (Figure 3).

Click to enlarge

At our center, we employed a PET/CT GE Discovery 690 (General Electric Medical Systems, GEMS, Milwaukee, International Journal of Nuclear Medicine & Radioactive Substances

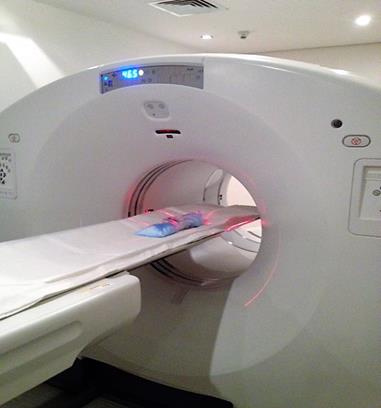

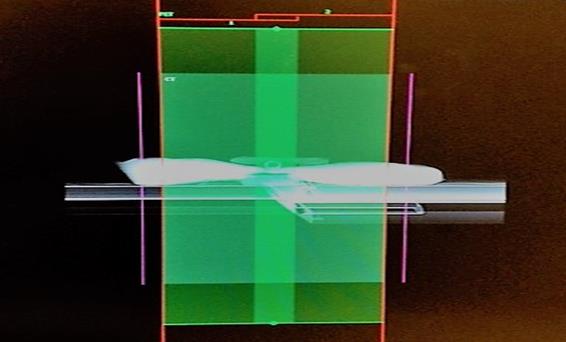

WI, USA) with Cerium activated LYSO crystals and a 64 slice CT for anatomical and attenuation correction. 90Y PET was acquired using positron fraction 3.186 × 10−5, half-life 64.1 h, 15 min per bed position and maximum axial field-of-view (AFOV) of 15.7cm (Figure 4).

Click to enlarge

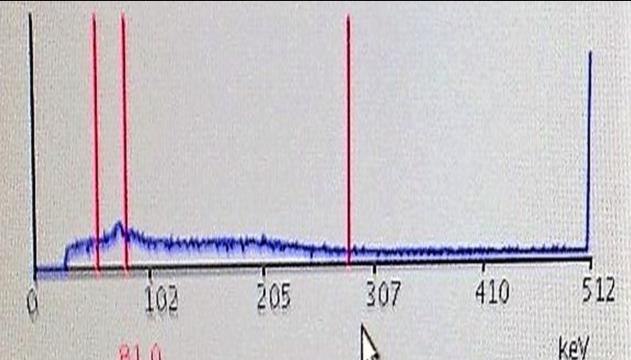

90Y bremsstrahlung SPECT/CT was performed on a GE670 discovery, which has a dual head gamma camera and 16 slice CT. A medium energy general purpose collimator was used based on our earlier literature review. The energy windows were set at lower and upper limit of 55 KeV and 285 keV to capture the most prominent photopeak amidst a continuous bremsstrahlung spectrum (Figure 5).

Click to enlarge

Scans were acquired in 60 frames over 360°, 25s per frame; Matrix size 128 × 128 and low-dose 16 slice CT for anatomical correlation and attenuation correction. All paired 90Y PET/CT and 90Y bremsstrahlung SPECT/CT scans were performed within 30 min of each other. The acquired data and the reconstructed images were assessed for image resolution, the ability to confirm technical success and detection of non- target activity. Imaging tests were performed on 4 separate occasions with the same amount of activity at each time. Acquisition and processing parameters were kept unchanged to maintain constancy.

Results

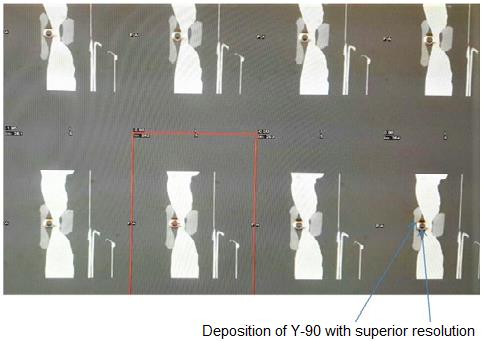

For PET image acquisition and reconstruction, we used an Algorithm which incorporates time of flight and point spread function information and non-time of flight (GEMS name: VUE point FX; Sharp IR; VUE.HD) together with fully three dimensional (3D) ordered subset expectation maximization (3DOSEM). The acquired data were reconstructed with 3 & 5 iterations and 18 & 32 subsets. The resulting images were corrected for attenuation, scatter, random, dead time, and normalization. (Figures 6, 8 & 9) SPECT images were reconstructed utilizing 3D-OSEM with 3 iterations and 18 subsets and corrected for anatomical correlation and attenuation correction using a Low-dose 16 slice CT was. The acquired data and the reconstructed images were assessed for image resolution, the ability to confirm technical success and detection of non- target activity. However, the 90Y activity was embedded in a standard vial and as such we did not investigate the detection of non- target activity at this stage.

90Y PET images appeared to be suffering from low true coincident rate. The authors considered increasing scan time (from 15 min to 30 min) to compensate for low true coincidence rates in an effort to improve image quality. Qualitative evaluation based on visual inspection of phantom images by an expert demonstrated superior resolution of 90Y PET/CT over bremsstrahlung SPECT with a clear edge definition of the phantom (5cm H x 1cm D containing less than 1 ml 90Y) (Figures 7 & 8).

Following the success of the preliminary study, the authors have instigated a plan to perform further qualitative and quantitative imaging and analysis in relation to target and non-target ROIs, utilising sub- centimetre active ROIs. The authors are aiming to employ the modified procedure on patient imaging in conjunction with SPECT. It is anticipated that the PET scan of patients for microsphere bio-distribution in radiosynovectomy will be the first time to be carried out in the state of Kuwait.

International Journal of Nuclear Medicine & Radioactive Substances

Click to enlarge

Click to enlarge

Click to enlarge

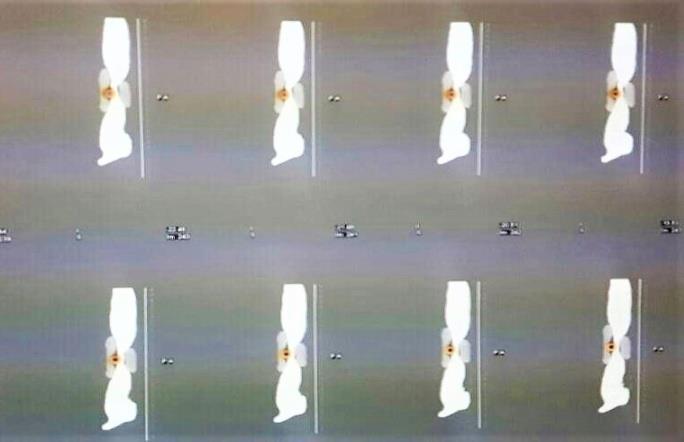

Deposition of Y-90 with degraded resolution Figure 7: A selected SPECT/CT sagittal images of the in-house phantom and the embedded 90Y.

Click to enlarge

(a) (b) Figure 8: An enlarged PET/CT (a) and SPECT/CT fussed (b) sagittal images of the knee phantom for visual and edge definition.

Click to enlarge

The preliminary study using a developed in-house phantom to imitate the knee region is suggesting, although 90Y PET is suffering from low true counts, but it has demonstrated qualitative superiority. The result is suggesting that 90Y PET-CT imaging can serve in two primary clinical roles in radiosynovectomy: (1) evaluating technical success (2) predicting treatment efficacy. It is further suggesting that conclusive information about quantitative and qualitative assessment of 90Y radionuclide imaging can be obtained and it is feasible to establish a platform for the follow up in-vivo (patient study) imaging utilizing the state of art TOF PET/CT at the molecular level. Furthermore, the information obtained International Journal of Nuclear Medicine & Radioactive Substances

can also be used to provide patient specific treatment planning for successive therapies and potentially improving response and therefore the quality patient care. The authors are aiming on the next phase to implement the technique on number of patient cases as the initial results are promising.

Acknowledgement

The Authors and the associated collaborative institutions would like to thank Kuwait Foundation for the Advancement of Sciences (KFAS) for its continuous financial support via the research grant (KFAS - P115- 93MN-02) which facilitated the initial phase of this investigation utilizing the state of art technology, technique and advanced science.
