The Ichthyofauna of Aghstev and Debed River Basins (North Armenia) and the Impact of Separate Factors on its Transformation

Introduction

The area of the Republic of Armenia is 29.8 thousand square kilometers and is located in the southern part of Transcaucasia, occupying a small northeastern part of the vast Armenian upland. From north and east Armenia is framed by the ridges of the Lesser Caucasus. The area of Armenia belongs to East Transcaucasian District

tributary of Khram River. It is formed by the mix of Dzoraget and Pambak Rivers. The length of river Pambak is 178 km, hydrologic basin is 4080 square kilometers. The length of Debed River in Armenia is 152 km, and the rest is in the territory of Georgia. Flows of Debed and its tributaries are sharply seasonal, maximum spring flows exceed minimum winter flows 100 times. The large tributaries of Debed are Dzoraget, Pambak, Tashir, Marts and Shnogh. Dzoraget rises in the southern slopes of Javakhq Ridge, at the height of 2320 meters. The length is 67 kilometers; the hydrologic basin is 1460 square kilometers. The large tributary of this river is Tashir which rises at the height of 1800 meters; it has 54 kilometers length and 470 kilometers hydrologic basin. Pambak rises at the height of 2100 meters; it has 92 kilometers length and 1370 square kilometers hydrologic basin. Mart rises at the height of 1980 meters. The length is 29 kilometers, and the hydrologic basin is 252 square kilometers. The length of Shnogh is 20 kilometers; the hydrologic basin is 114 square kilometers.

Click to enlarge

Click to enlarge

1865, Chondrostoma cyri Kessler, 1877, Cobitis cf. satunini, Leucalburnus satunini (Berg, 1910), Paracobitis cyri (Berg, 1910), P. malapterura (Valenciennes, 1846), Ponticola cyrius (Kessler, 1874), Pseudophoxinus atropatenus (Derzhavin, 1937), P. sojuchbulagi (Abdurakhmanov, 1950), Rhodeus cf. amarus, Romanogobio macropterus (Kamensky, 1901), Rutilus rutilus (L., 1758), Salmo ischchan Kessler, 1877, S. aestivalis Fortunatov, 1926, S. danilewskii Gul’elmi, 1888, S. gegarkuni Kessler, 1877, Oxynoemacheilus bergi (Gratzianow, 1907), O. bergianus (Derzhavin,1934), O. brandtii (Kessler, 1877), O. lenkoranensis (Abdurakhamanov, 1962) [1]. The East Transcaucasian region is characterised by vertical zonation among the fish assemblages. Quite distinct are successive species assemblages: in high mountainous (alpine) sections the brook trout Salmo trutta (L., 1758) (riverine forms of Salmo) is the only species. In lower mountainous sections down to the foothill zone, other rheophilous species appear in addition to the trout (species of the genera Squalius Bonaparte, 1837, Barbus Cuvier, 1816, Chondrostoma Agassiz, 1832, Alburnoides Jeitteles, 1861). Downstream, in piedmont to lowland sections, species of the genera Gobio Cuvier, 1816, Romanogobio Bănărescu, 1961 and Phoxinus Rafinesque, 1820 often predominate. The lower reaches are mostly inhabited by phytophilous species, which are typical inhabitants of slow flowing rivers and stagnant waters [1]. The recent studies conducted by us showed that the number of fish species inhabiting in rivers Debed and Aghstev and in their tributaries is not stable and is periodically being subject to changes. The latter is often conditioned by the impact of certain factors, among which can be various hydraulic structures constructed and operating on those freshwaters. In particular, in 1990 Metsavan reservoir which is 1586.5 meters high above the sea level was constructed on river Tashir up to 330 hectares. Besides, currently 34 SHPPs operate on rivers Debed and Aghstev flowing in the territory of Armenia and on their tributaries and 7 more are being constructing. Although hydropower is considered as an important branch of renewable energy and is often viewed as an alternative, ecologically clean and environmentally friendly, a number of problems and obstacles have emerged as a result of the operation of RA SHPPs which increase the risk of SHPPs from the ecological point of view. So, being mostly constructed on small beds of rivers, the SHPP intake headquarters, from where the water of the river penetrates into pressure pipeline and flows into SHPP turbines, the riverbed is usually covered with a concrete or metal barrel. As a result, the water of small rivers stagnates and the defined volume of water environmental flow and the structure of fish ladders don’t often provide the free movement of fish species and other organisms from the one side of the river to the other [7, 8]. Besides, the absence of fish protecting nets in SHPP water intake headquarters or large cracks of current floating trash nets don’t forbid the penetration of fish species inhabiting in upstream of the river especially fingerlings into the SHPPs pressure pipeline and afterwards in turbines where they are subject to mechanical and other impacts. As separate studies witness while passing through the HPPs turbines mass destruction of fish alevins and fingerlings is observed only as a result of swim bladder pressure injuries [9]. The analysis of SHPPs fish ladders types and structural solution indicated that most of the fish ladders don’t meet the vital needs and physical opportunities of periodically migrating fish species of those rivers. In this sense they are mostly end in themselves and don’t meet the modern requirements towards such structures. The latter is the main reason for them not to function properly.

Material and the Methods

The Ichthyological material has been collected during the period 1998-2017 - 2965 individuals of 16 fish species have been captured and studied from different areas of rivers Debed and Aghstev and their tributaries Dzoraget, Pambak, Tashir, Shnogh, Bldan, Haghartsin and Genik. While collecting and processing the material (Selection of tools and methods of fishing, conduction of morphometric measurements, etc.) the methods of research used in Ichthyology were used [10]. The fish were caught by hand fishing nets with 45 cm diameter, 1.5 meter handle, 4 mm size net crack, fishing lift net with 70 cm diameter, 5mm crack and fishing hooks as well as electro fishing by poachers or hand hooks. The species identification of the individuals studied was carried out according to the determinant of the fish of Armenia [11]. Afterwards the defined species were subject to morphometric measurements, their gender, maturation of sexual glands and age was determined according to the methods suggested by Pravdin [10]. When determining the number of species (numerous, common, rare) in separate reservoirs, the percentage of these species was taken from the total number of fish caught in a given reservoir or in its various areas. Conditionally "rare" was considered the taxon, the number of which in the caught fish was less than 10%, "common" - from 10 to 30% and "numerous" - more than 30% [4].

Results and Discussion

Currently the following fish species are found in the basin of river Debed: Salmo trutta Linnaeus, 1758, Alburnoides eichwaldii (De Filippi, 1863), Barbus lacerta De Filippi, 1865, Capoeta sevangi De Filippi, 1865, Capoeta capoeta (Güldenstädt, 1773) Alburnus filippii Kessler, 1877, Alburnus hohenackeri Kessler, 1877, Luciobarbus mursa (Güldenstädt, 1773), Romanogobio macropterus (Kamensky, 1901), Oxynoemacheilus brandtii (Kessler, 1877), Leucaspius delineatus Heckel, 1843, Abramis brama (Linnaeus, 1758), Carassius gibelio (Bloch, 1782), Pseudorasbora parva Temminck & Schlegel, 1846, Cyprinus carpio Linnaeus, 1758, Oncorhynchus mykiss (Walbaum, 1792). Generally, currently in the basin of river Debed within Armenia 16 fish taxon are found Cyprinus carpio and Oncorhynchus mykiss of which periodically penetrate here from fish farms located along the banks of the river and its tributaries; Leucaspius delineatus, Abramis brama, Carassius gibelio и Pseudorasbora parva have penetrated here and acclimatized over the past decades [4, 12, 13, 14, 15, 16, 17]. According to M. Dadikyan [18] during the period 19th century of 70s 7 fish species were found in river Aghstev - Salmo trutta, Salmo caspius Kessler, 1877, Capoeta capoeta, Barbus lacerta, Squalius orientalis Heckel, 1847, Alburnus filippii, Alburnoides eichwaldii. In recent years, apart from the above mentioned taxons (excluding Salmo caspius) the following fish species were discovered in river Aghstev in the territory of Armenia: Alburnus

hohenackeri, Capoeta sevangi, Luciobarbus mursa, Oxynoemacheilus brandtii, Sabanejewia aurata [19], Cobitis cf. satunini [20], Carassius gibelio, Pseudorasbora parva, Cyprinus carpio, Oncorhynchus mykiss. So, currently the total amount of identified fish species in river Aghstev in the territory of Armenia is 16 from which Cyprinus carpio and Oncorhynchus mykiss periodically penetrate here from fish farms located on riverbeds, as for Carassius gibelio and Pseudorasbora parva are acclimatized. Moreover, taxonomic diversity of fish in river Aghstev and its tributaries differs in different parts. In upstreams, at the height of 1800-2000 meters above the sea level Brook trout is usually found. In lower streams at the height of 1000-1800 meters above the sea level Capoeta sevangi, Barbus lacerta, Alburnoides eichwaldii are found. Other species are found in much lower heights, especially not far from state border between Armenia and Azerbaijan. Such a regularity of change of vertical Ichthyofauna is observed both in uptreams and middle streams of river Kura in eastern Georgia which is conditioned by ecological characteristics of fish habitat [21]. At the same time, in river Kura flowing in the territory of Georgia and in lowlands the taxonomic fish diversity is high. So, according to Elаnidze [21] in river Kura to the basin of which rivers Debed and Aghstev belong, 77 fish species are found and according to Ninua & Japoshvili [22] - 24 fish species are found excluding climate adopted species (Table 1).

Table 1: Native fish of upper and middle streams of Kura River and its tributaries. It is of vital importance to state that in river Kura, belonging to middle stream in the territory of Azerbaijan, from the border of Georgia up to Mingechaur reservoir only 17 fish species are registered. The mentioned fish species are found in river Kura and in the lower parts of its tributaries. Before the construction of Mingechaur HPP the following fish species were found in the middle streams of river Kura- Caspiomyzon wagneri (Kessler, 1870), Acipenser nudiventris Lovetsky 1828_, Acipenser_ gueldenstaedtii Brandt & Ratzeburg, 1833, Salmo caspius Kessler, 1877, Leuciscus aspius, Alburnus chalcoides and Ballerus sapa [23]. During the last 10 years changes in Ichthyofauna both in river Aghstev and Debed occurred. So, since 70th of past century the fish species of Ichthyofauna of Debed and Aghstev has gone essential changes. Mainly, separate fish species such as Salmo caspius has disappeared and new species have appeared: Carassius gibelio, Cyprinus carpio, Pseudorasbora parva, Alburnus hohenackeri, Leucaspius delineatus, Oncorhynchus mykiss. The periodical changes of the fish species in the above mentioned rivers are conditioned by the existence of different hydraulic buildings on the river streams (HPP, reservoirs, Chanels, irrigation nets, etc.) and their exploitation inadequate to environmental norms [7, 8, 24] exploitation of numerous fish farms, poaching (including banned measures such as by electricity and toxic substances), the import of some fish species in the natural reservoirs by amateur fishers (e.g: Carassius gibelio, Cyprinus carpio, Pseudorasbora parva), pollution of mining and household waste, using waters of rivers for agricultural purposes, climate changes and by other factors. It’s worth mentioning that from those factors we have taken into consideration the SHHPs. Currently, as our studies show the significant negative impact on the biodiversity of fish species of Debed and Aghstev flowing along Armenia and their streams play the small hydro power plants. According to our preliminary observations in small hydro power plants (SHPP) intake head structures from where the water flows into a pressure pipeline and flows into small hydro power plants (SHPP) turbines, the river stream is usually fenced by concrete or metal bulwark. As a result, small rivers’ water stagnates and the defined volume of the water environmental flow and fish ladders structures don’t often provide the free movement of fish species and other organisms from the one side of the river to the other side. The analysis of small hydro power plants (SHPP) fish ladders types and structural solution indicated that most of the fish ladders don’t meet the vital needs and physical opportunities of periodically migrating fish species of those rivers. In this sense they are mostly end in themselves and don’t meet the modern requirements towards such structures (Figures 3-6). The latter is the main reason for them not to function properly.

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

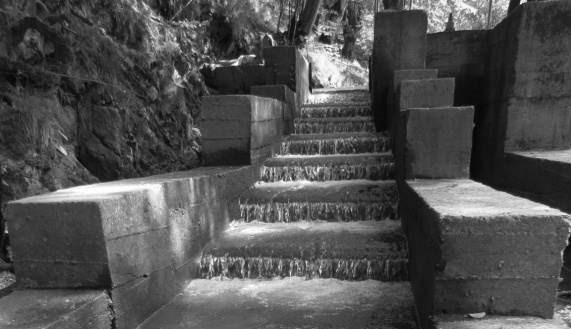

Besides, the absence of fish protecting nets in the head buildings of small hydro power plants (SHPP) intake or comparatively large cracks of floating trash nets aren’t an obstacle for the appearance of fish, especially fingerlings inhabiting in upstream of the river into the small hydro power plants (SHPP) pressure pipelines and in afterwards in turbines where they are subject to various mechanical impacts. As separate studies witness fish alevins and fingerlings destruction is being noticed while passing through HPPs turbines only as a result of swim bladder pressure injuries [9].

Conclusion

The biodiversity of fish species in the Basins of Rivers Debed and Aghstev has increased twice reaching up to 19 due to the imported weed fish species which often push out the habitat fish species from their ecological niche, the resources of most of the habitat fish species especially Salmo caspius, Capoeta capoeta, Cyprinus carpio have strongly decreased, as for some migrating fish species, they are not found any more, Most of the fishes of Rivers Aghstev and Debed cannot overcome the obstacles such as concrete dams, arising as a result of small hydro power plants construction, the structures of the fish ladders don’t provide their main aim, i.e. to serve as a bridge for the free movement of the fish species inhabiting different parts of the river and to ensure normal reproduction of fish resources, the absence of fish protecting nets is the reason for the loss of a large number of fingerlings and alevins. Recommendations: (Re) construct fish ladders and fish protecting nets near reservoir dams at the small hydro power plants in accordance with the newly defined criteria, restrict the construction of small hydro power plants on the rivers that have 30% derivation or more load, review the defined dimensions of water environmental flow according to each river, review the Repubilc of Armenia legislation and the normative field for enlarging the environmental element in the usage of water resources, make the fight against poaching more effective especially against poaching with banned means, restore the damage caused to the river ecosystem and Ichthyofauna.

Acknowledgements

The authors express their gratitude to Inga Zarafyan for her support during the implementation of the work and Gohar Arakelyan for the translation of the article and for her efforts.
