Radio-Induced Chondrosarcoma of the Scapula: A Rare Localization (About One Case)

Introduction

The chondrosarcoma of the scapula can have a primary or secondary origin, either by degeneration of a benign tumor of cartilaginous origin, or by irradiation which is rare with a frequency of 0, 5-2%. The authors report a rare case of a radio-induced chondrosarcoma of the scapula treated by total scapulectomy, with review of the literature.

Case Presentation

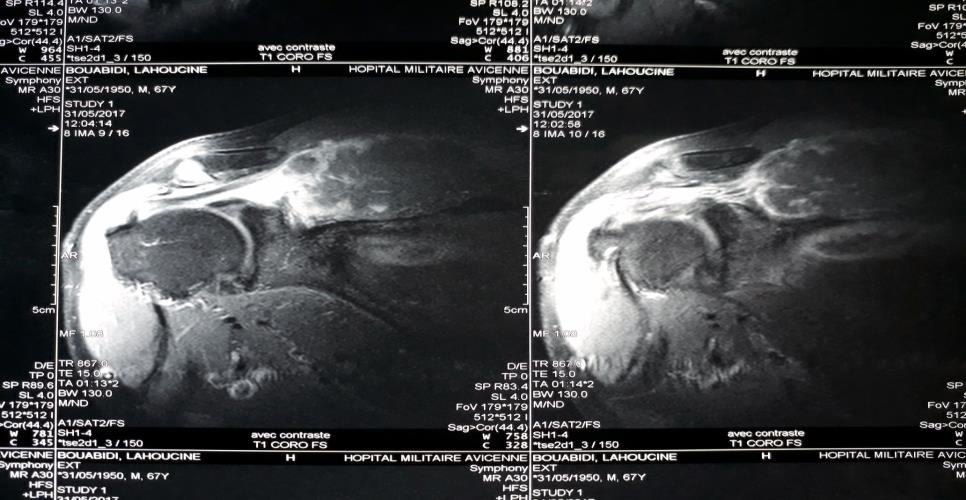

A 62-year-old Moroccan man, retired from the army, married, a chronic tobacco smoker, without any medical history, underwent concomitant chemo radiation for stage IIIB SCC of his right lung in 2007 [1]. His regular follow-up evaluations did not reveal any notable pathologic findings, and he did not need to take any specific medication. However, 10 years later he presented a right scapula pain. He stopped smoking tobacco in 2007, and suffered from right scapula pain for 3 months. A clinical examination found a fixed, sensitive right scapular mass that measured 10 cm at its big axis (Figure 1). Motricity of arms and inferior members was well conserved without any involuntary movements. Muscular force was preserved as well as sensitivity (light touch, temperature, vibration, joint position sense) .A Magnetic resonance imaging (MRI) of the scapular region showed malignant tumor process centered on the supraspinatus and infraspinous muscles with hypo signal at T1 and heterogeneous hyper signal at T2 measuring 90 mm on the longest axis and 60 mm on the shortest axis (Figure 2). Laboratory tests did not reveal any abnormalities, showing good liver and renal functions. A surgical biopsy of the tumor was performed. Histopathological examination showed a grade 1 chondrosarcoma. An extension assessment, including CT of his chest and abdominal ultrasonography, did not find distant metastasis surgical resection was performed with safe margins (Figure 3). The surgical procedure consisted of a resection of his right scapula, with fixation of his right arm (Figure 4). A follow-up at 12 months (clinical examination and CT scan) did not show any sign of recurrence or specific complication.

Click to enlarge

Click to enlarge

Click to enlarge

Figure3: Scapulectomy with safe margins.

Click to enlarge

Figure4: X-ray of the right shoulder in postoperative.

Discussion

Radiation-associated sarcoma (RAS) is a rare, malignant tumor of mesenchyme tissue that arises in the setting of radiation exposure, most commonly from radiation therapy (RT) for the treatment of another primary oncologic process [2].

The diagnostic criteria for RAS were first proposed in 1948 by Cahan in a case series of 11 sarcomas that manifested in irradiated bone. This definition of radiation-associated sarcoma was later revised in 1971 by Arlen et al. and in 1999 by Murray, et al. [3]. Criteria for RAS include the following: 1) The sarcoma must have arisen in the setting of previous radiation exposure within the 5% isotope line of the irradiated field (i.e. the volume of tissue receiving at least 5% of the prescription dose), 2) The histologic features of the sarcoma must be of a different pathology than that of the primary malignancy, and 3) There must have been no evidence that the sarcoma was likely to have been present prior to the onset of radiation [4].

The required length for latency period following initial treatment is controversial, as recent literature has suggested that as few as 6 months of latency can suffice for the diagnosis of radiation-associated sarcoma while other authors have suggested a 5-year latency period [5].

The main treatment is the surgical resection of the tumor with a subtotal or total scapulectomy, depending on the size of the tumor [1]. The radiotherapy and chemotherapy do not provide better survival Rates than surgery as a single treatment [6]. For this reason, the surgical planning becomes greatly important and adequate safety margins are needed, which can hinder in some cases the function of the affected limb. The use of surgery that pre- serves the basic function of the upper limb and the non-affected articulations, such as the hand and the elbow, become as important as those approaches that try to preserve part of the shoulder articulation, always with an adequate oncological resection. Surgeons may consider the suspension of the limb without reconstruction, but nowadays there are tumor prostheses for the proximal third of the humerus, prosthesis of the scapula or plastic reconstructions with bank grafts for the articular part [7, 8, 9, 10].

Conclusion

The radio induced chondrosarcoma of the scapula remains exceptional. Total scapulectomy with the suspension of the limb showed good functional and emotional results, as well as a good survival rate.
