Biomechanical Stress Distribution of the Mandibular Condyle in Orthognathic Surgery with Occlusal Plane Counterclockwise Rotation-A Case Report

Introduction

Phillips and Bell, in 1978, were the first to report a case of condylar resorption after mandibular advancement orthognathic surgery, although at the time they could not establish the cause, it is believed that it could be a biomechanical phenomenon with increased muscle tension [1]. Among several causes of condylar alterations, biomechanical stress (including stretching or compression) can cause adaptation in soft and hard tissues that is frequently manifested by condylar elongation or reabsorption [2]. Condylar resorption has a multifactorial etiology, including factors related to the host and biomechanical factors [3]. After mandibular and maxillary orthognathic surgery, the condyle tends to be located in a concentric way within the glenoid cavity. However, it may not necessarily trigger joint symptoms, being the most stable position [4]. Also, bimaxillary orthognathic surgery with counterclockwise rotation has usually been stigmatized due to the increased risk of condylar resorption.

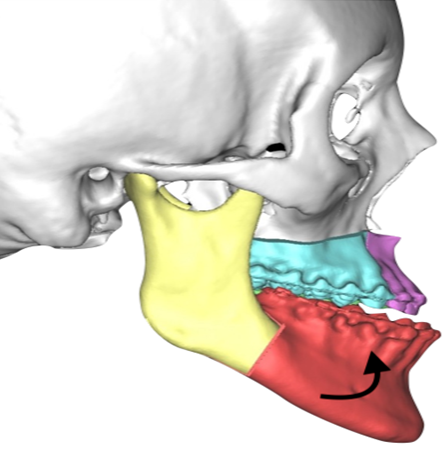

The aim of this article is to show a case that assesses the biomechanical stress of the condyles with a three-dimensional simulation of a class III patient with an anterior open bite in maxillomandibular surgery with counterclockwise rotation.

Results

Collision analysis of pre and post-surgical images was initially performed; showing a rotation of the mandibular condyle and anterior displacement of the proximal segment of the right mandibular ramus at the level of the neck of the condyle of 2.66 mm and at the level of the anterior border of the ramus 2.86 mm. On the left side, there was evidence of condylar rotation with a displacement of the proximal segment anteriorly of 2.93 mm at the level of the condyle and a displacement of the ramus of 3.2mm anteriorly. The distribution patterns and areas of most significant stress of the mandibular condyles were measured in stress variables:

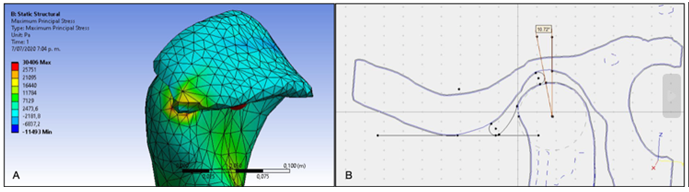

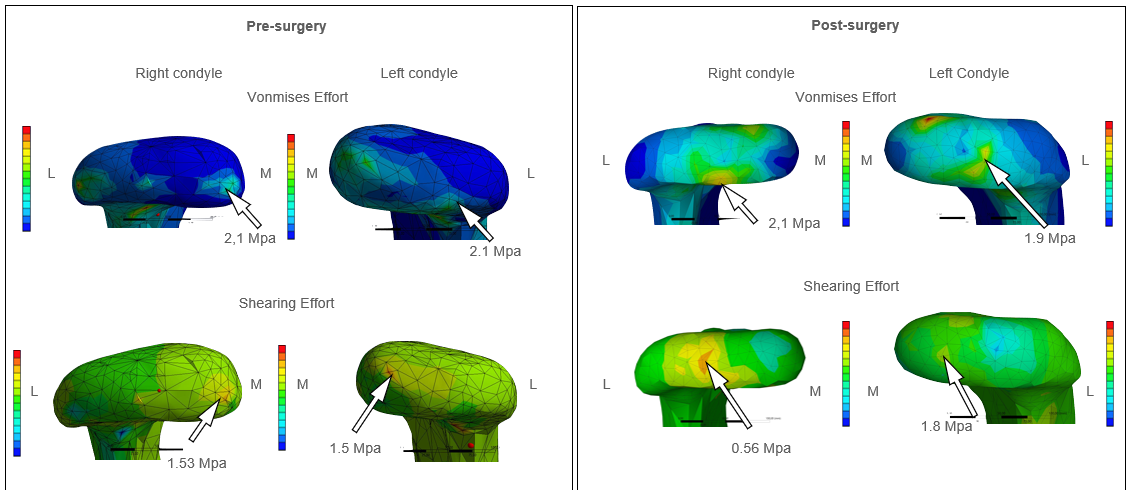

Von Mises and Shear. In the presurgical simulation, the right condyle showed a Vonmises effort of 2.1 Mp in the medial region (MR), and a shear stress of 1.53 Mp reflected also in the MR of the condyle. In the left condyle, the area of ​most tremendous pre-surgical stress was the lateral region (LR) showing a Von Mises effort of 2.1 Mp and the central region (CR) with a shear stress of 1.5 Mp. The distribution patterns and areas of most significant stress of the mandibular condyles in the post-surgical simulation were: Von Mises effort of 2.1 Mp for the right condyle in the CR and a shear stress of 0.56 Mp also in the CR. For the left condyle, the ​most significant post-surgical stress area was the CR with 1.9 Mp in Von Mises effort and 1.8 Mp in the MR for shear stress (Figure 3).

Click to enlarge

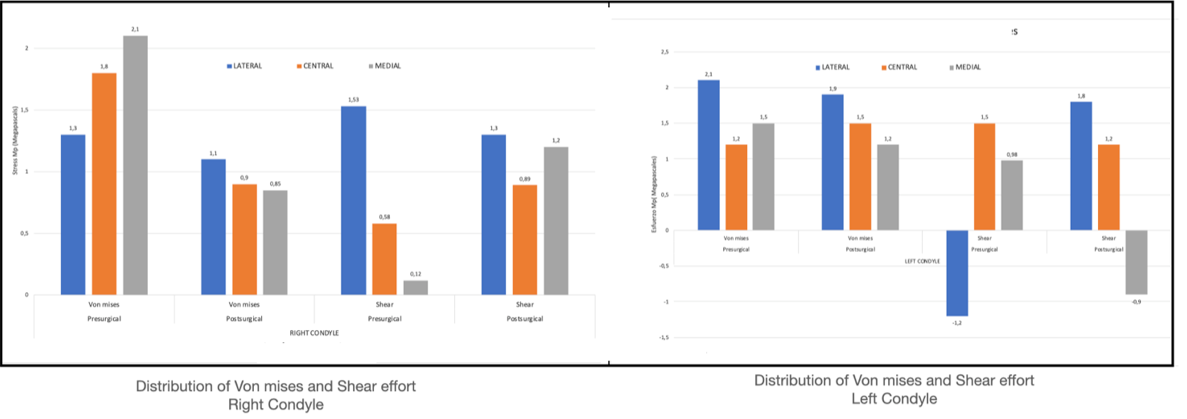

Average Von Mises stress was 1.73 Mpa in the pre- surgery and 1 MPa for the post-surgery in the right condyle (reduction of 42.1%). Shear effort average for the pre was 0.74 Mpa and the post average was 0.15 Mpa (79% decrease). According to T students’ test, it was observed that the results of the right condyle in Von Mises effort before and after surgery had a statistically significant reduction, CI = 95% (p= 0.008), while the Pearson Correlation expresses a perfect correlation linearly negative (-0.96). On the other hand, the pre and post shear stress does not represent a statistically significant reduction for the right condyle, CI = 95% (p= 0.27) and a weak linear positive Pearson correlation (0.41). Regarding the left condyle, the average of Von Mises effort was 1,6 for the preoperative period and 1,53 for the post- surgical period (decrease of 4.4%). The average shear effort showed a slight increase for the left condyle, being 0,42 for the preoperative period and 0,7 for the postoperative period (an increase of 66%). The pre and postsurgical Von mises effort does not represent a statistically significant reduction, CI = 95% (p= 0.75) for the left condyle. On the other hand, the Pearson correlation showed a significantly positive linear (0.71). The pre and post shear stress does not represent a statistically significant reduction either, CI = 95% (p= 0.86), with a moderately linear negative Pearson correlation (-0.52). Finally, preoperative and postoperative X rays were compared to evaluate facial changes and osteosíntesis material was in position without infection signs (Figure 4).

Click to enlarge

Discussion

Orthognathic surgery can trigger some changes at the condylar level. These changes can be divided into condylar remodeling or condylar resorption. In the second situation, the condyle exceeds the adaptive capacity, becoming a pathological process due to load and position changes in the condyle. The systematic review by Vandeput, et al. [5] found condylar remodeling in class III patients due to mandibular setback. However, the literature was not conclusive due to the heterogeneity of the studies and the level of evidence [5].

Regarding condylar position changes Kim, et al. [6] conducted a study in 33 subjects with class III malocclusion. Bimaxillary orthognathic surgery was performed with a 1-year tomographic follow-up. Condylar movements in different directions were observed up to six months, which influenced a relapse of surgery. However, they note that these movements stabilize after one year suggesting condylar remodeling not condylar resorption [6]. On the other hand, Park, et al. [7], 22 patients with class III malocclusion who underwent Le Fort I osteotomy and mandibular setback by sagittal osteotomy were studied to observe changes in height and condylar shape in those who observed remodeling and loss of height after surgery. The anterior and superior visualization remodeling changes, and the superior and lateral visualization resorption changes [7]. This suggests the importance of assessing the intraoperative condylar position in whichever procedure to be performed.

Regarding changes in the occlusal plane, Kor, et al. [8] conducted a study in 29 patients with class III malocclusion and anterior open bite divided into two groups. One group consisted of patients with a clockwise occlusion change and the other group in a counterclockwise direction. Changes occurred in both groups; however, in the group with counterclockwise rotation, more remarkable changes occurred at the level of point B, pogonion, and chin. Despite these results, both groups were relatively stable techniques [8]. This could destigmatize the counterclockwise rotation, showing that when it is not carried out there may also be a remodeling; however in both cases it can be stable.

Regarding the differences between a jaw or bimaxillary surgery, a study was carried out by Kim, et al. [9] where they evaluated the condylar changes in class III patients managed with sagittal osteotomy mandible or bimaxillary surgery. The results observed in the 43 patients analyzed did not show statistically significant differences in condylar displacements in the frontal, sagittal and axial planes. In addition, the remodeling variation was less than 2 mm, which lacked clinical relevance [9]. However, the possibility of condylar resorption in forward or mandibular setback by sagittal osteotomy with and without Le Fort I osteotomy is in a percentage lower than 4.2%, according to a systematic review and meta-analysis [10]. In our case of bimaxillary surgery, an excessive overload was not observed in the finite element analysis. This may suggest that the risk of presenting condylar changes is lower with bimaxillary surgery with counterclockwise rotation, but studies with a larger number of patients should be carried out.

Additionally, Al-Moraissi and Wolford conducted a systematic review and meta-analysis in which they observed the stability of the counterclockwise rotation of the maxillomandibular complex in orthognathic surgery with or without treatment of coexisting temporomandibular joint pathology. Three hundred forty-five patients were included from a total of 12 studies where they performed the fixed- point evaluation, linear measurements, and evaluation of the occlusal plane. They concluded that the maxillomandibular complex’s counterclockwise rotation was a stable procedure in healthy patients or those who had joint pathology previously or concomitantly treated. However, it was unstable in patients with joint pathology that had not received treatment [11]. In our case, the patient did not present joint pathology before surgery and neither development after it. Therefore, no surgical intervention related to the ATM was necessary, other than passive condylar repositioning during orthognathic surgery.

Finally, it must be considered that relapse has a multifactorial etiology where variables such as age, degree of advancement or retreat, muscular activity, and even the surgeon’s ability to accentuate the mandibular condyle in the glenoid cavity passively can affect results. In addition, it is believed that the fixing material can play a relevant role. Al- Moraissi and Ellis, in a systematic review and meta-analysis, observed a slight advantage over bicortical screws in terms of postoperative stability, however no statistically significant differences were found [12]. In our team we always use three bicortical screws on each side of the mandible, and so far we have had good results.

In our study, the condylar topography showed changes in mechanical stress distribution uniformly in the three- dimensional model’s post-surgical simulation. The reductions of the various stress areas were shown not to have a statistical significance. However, the patterns of the overturning of the forces in the right mandibular condyle evidenced a more significant pre-surgical Von Mises effort in the medial region, presenting a change in the pattern of this effort, towards the lateral side in the post-surgical simulation. On the other hand, the pre-surgical shear stress presented a more accentuated component in the medial region, with a better post-surgical distribution of the shear stresses. The left mandibular condyle demonstrated an undiminished pattern of pre and post-surgical Von Mises efforts. The pre and post-surgical shear stresses showed negative patterns that initially appeared in the lateral portion of the left condyle. In the postsurgical simulation, these biodynamic patterns’ clinical relevance was observed in the medial portion, which should be evaluated in the clinic scenario since the shear forces are highly damaging to the disc and articular cartilage. Therefore, proper manipulation of the proximal segment at the time of performing a bimaxillary orthognathic surgery procedure with occlusal plane change does not represent a risk in altering the condylar morphology if the distribution of the biomechanical efforts can be distributed adequately with a passive accentuation of the condyle in the mandibular fossa during the surgical procedure.

Conclusion

Despite the fact that many articles report cases of condylar resorption or remodeling after orthognathic surgery, most articles suggest that search information is needed with technological tools that provide better information. Consequently, this case of finite element analysis, which to our knowledge is the first to use this technique to evaluate the load received after this type of procedure. Likewise, it is observed that an adequate load distribution on the condyle is possible after bimaxillary orthognathic surgery with anticlockwise rotation. Finally, our case can be the basis and the beginning of studies with finite element analysis that use larger samples and adequate control of variables in order to obtain higher quality information.

Consent

The consent for publication was obtained.
