Energy Deposition by High Energy Particle Beam Radiation

Introduction

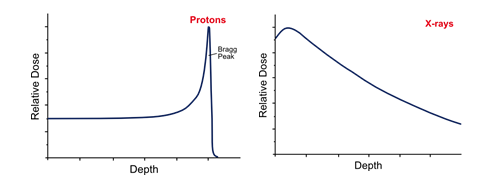

Over the past several decades, energy deposition into materials has become ever more useful, ranging from electronics manufacture to tumor treatment. In recent times, a fast ion beam, frequently a proton beam is impinged on a material. The reason for this is that the maximum in the relative dose (the amount of energy deposited) as a function of the depth from a sample surface from an ion beam can be selected much more specifically than that from a photon beam such as x-rays, resulting in the ability to irradiate a particular area, for an ion beam, while for a photon beam this is not possible, as shown in Figure 1 [1]. Thus, in the case of particles, there is less damage to the surrounding area in the case of a proton beam than in the case of an x-ray beam. This is particularly important for treatment of tumors.

Click to enlarge

The translational energy of the protons of mass m traveling at velocity v is transferred to the target material of density n by electronic excitation in the target. The beam particle energy lost by the projectile to the target per unit path length, or target stopping power [2], is related to the stopping cross section of the target, ( ) S v by:

$$ - \frac {d E}{d x} = n S (v) $$

(1) The stopping cross section is given by:

4 2 2 4 2 1 2 ln 2

π = e Z Z mv S v ( )

(2) I mv

0 Here, Z1 and Z2are the projectile charge and the target electron number. I0 is the mean excitation energy of the target material, and it measures the ability of the target to absorb energy from the projectile. I0 can be determined from the dipole oscillator strength distribution (f) of the target:

df EdE dE I df dE dE

= ∫ ln ln (3)

0 ∫ Using this scheme, the mean excitation energies and thus the stopping powers of atoms and ions can be calculated.

Click to enlarge

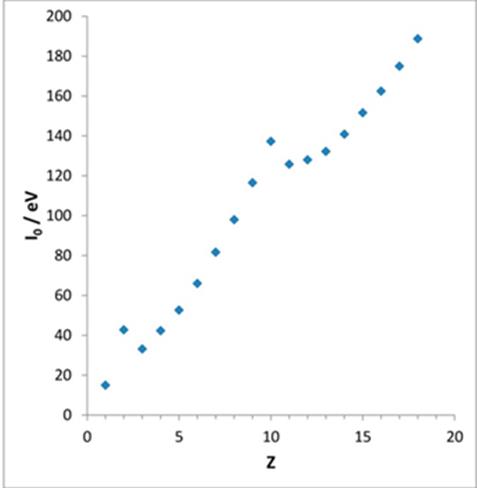

It is clear that I0 increases with Z across a row of the table, drops for the beginning of the next row, and then continues, but with a smaller slope then that for the previous row. The slopes (dI0/dZ) for the first three rows from Figure 2 are 15.84, 15.39, and 10.34 respectively.

This behavior is expected [3] from equation 3. For the neutral atoms as expected the energy requirement and the oscillator strength distribution determine the target mean excitation energy, and thus the stopping power. Thus, the biggest changes occur when the electron occupation changes involve occupation changes from one orbital to another. Thus, at this point, rather than increasing with occupation number increase, the mean excitation energy drops significantly. For example from He (1s2) to Li (1s22s1) or from Ne (…2p6) to Na (…2p63s1).

Comparing ions of equal charge, for q=+2, the biggest changes occur for Be2+ (1s2) to B2+ (1s22s1) and for Mg2+ (…2p6) to Al2+ (…2p63s1). For the q=+5 ions, the changes comes from N5+ (…2s2) to O5+ (…2s22p1) and from P5+ (2p63s2) to S5+ (…2p63s23p1), and for the q=+8 ions, for Ne8+ (1s2) to Na8+ (1s22s1) and from Mg8+ (1s22s2) to Al8+ (1s22s22p1).

Comparing ions of various charges of the same atom, as shown for Ne in Table 2,

The behavior of the mean excitation energy of these series of systems is governed by the behavior of the dipole oscillator strength distribution for the various systems, and is fully explained in reference 3. As the stopping power of a system varies inversely as the natural logarithm of the mean excitation energy, the stopping power will decrease with increasing mean excitation energy.

In the case of tumor treatment, individual atoms and monatomic ions are not generally of greatest interest; molecules and functional groups are! Although mean excitation energies of smaller molecules can be calculated directly as described above, for larger systems one usually involves the Bragg Rule [5], and assumes that the stopping cross section of a larger molecule, functional group, or molecular ion can be approximated by an aggregate of fragments and/or functional groups, as in equation 4:

$$ S _ {m o l e c u l e} (v) = \sum_ {i = a t o m s} S _ {i} (v) $$

(4) Similarly, the mean excitation energy of the full system would be given as:

$$ \ln I _ {0} = \frac {1}{N} \sum_ {i = a t o m s} n _ {i} I _ {0} ^ {i} $$

i I n Ii i atoms N

(5) The stopping power of such a multi-atom entity can thus be calculated from individual fragment stopping cross sections, or can be calculated as a single entity using eq.5. As the Bragg peak is projectile velocity dependent, the velocity of the projectile beam can be adjusted so that the peak comes at the location of the tumor, and thus the collateral damage is minimized.
