Choledochal Cyst with Pancreatic Divisum- A Rare Occurrence

Introduction

Pancreatic divisum (PD) is one of the most common congenital anomaly of pancreas [1] and is a known causative factor for chronic pancreatitis. The prevalence of PD based on autopsy and MRCP studies are around 8% and based on ERCP studies vary from 4% to 8% [2]. Choledochal cyst is an abnormal dilatation of part of biliary tree. The incidence is comparatively high in Asian population (1 in 1000) with majority of the cases being reported from Japan [3]. An association of pancreatic divisum with choledochal cyst is not often seen. There are few case reports in literature with similar findings. The management option becomes limited in such cases as both pathology needs to be addressed. An associated large pancreatic duct calculi further narrows the management options. Here we present a case of Chronic Atrophic pancreatitis secondary to pancreatic divisum associated with multiple main pancreatic duct MPD calculi and choledochal cyst.

Clinical Presentation

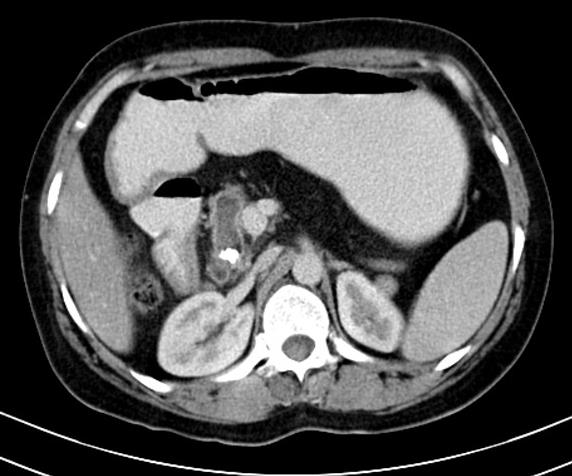

31 year old female, presented with complaints of intermittent pain abdomen and vomiting. Pain was moderate to severe in intensity, located in epigastric region not radiating and had no aggravating or relieving factors. Patient had no history of jaundice or fever. On examination abdomen was essentially within normal limit except for tenderness in epigastric region on deep palpation. On investigation her S. Bilirubin was 0.8 mg/dl, AST - 144 IU/L, ALT – 202 IU/L. Serum lipase was 31 IU/L and ALP was 228 IU/L. Patient underwent USG abdomen which showed dilated CBD with diameter of 22 mm at further investigations in form of MRCP (Figure 1) and CECT abdomen the images of which are shown below.

Click to enlarge

Click to enlarge

removed from MPD. Also the choledochal cyst was excised just below the confluence of hepatic ducts. Roux en Y pancreaticojejunostomy and hepatico-jejunostomy was done. Patient remained stable in post op period and was discharged on post op day 8. Patient has remained on routine follow up and is presently asymptomatic.

Click to enlarge

Discussion

Choledochal cyst in association with pancreatic divisum is a rare occurrence in adults. There are less than 10 cases reported till now in literature [4]. Both these condition on its own is associated with significant morbidity. While choledochal cyst is associated with cholangitis and biliary tract malignancy, PD is associated with recurrent acute pancreatitis (RAP) and chronic pancreatitis.

Pancreatic divisum (PD) is the most common congenital anomaly seen with pancreas. It occurs due to failure of fusion of dorsal and ventral pancreatic duct which usually occur at the end of second month of embryogenesis. Based on the degree of fusion of the duct PD is classified as Type 1, 2 and 3 as proposed by Warshaw, et al. [5]. Type 1: No communication between two ducts (70%) Type 2: Absent ventral duct (20-25%) Type 3: Incomplete/Partial/functional PD (5-6%)

The patho-physiological mechanism of RAP in patients of PD is a debatable topic. Why 90% of patients remain asymptomatic and a relative few presents with troublesome symptoms again remain a mystery. There have been reports of isolated dorsal pancreatitis associated with PD [6, 7]. This is supposedly caused due to raised intraductal pressure following relative blockage of pancreatic secretion through minor papilla. However, reports of chronic pancreatitis involving both dorsal and ventral pancreas in patients of PD brings the above statement to question. Could there be a confounding factor in the hypothesis of causation of RAP? The latest hypothesis suggests that PD is a supporting factor for genetic mutation leading to RAP. Studies show that the prevalence of PD is around 47% in patient of CFTR related pancreatitis and only 5% in idiopathic pancreatitis without genetic mutation [8]. Treatment of PD is indicated only in symptomatic patients and endoscopic therapy is the treatment of choice. The response rate of patients is variable. Patients of RAP had response ranging from 43 to 100% while in patients of chronic panceatitis, response ranged from 21 to 80% [9]. Choledochal cyst is classified by Todani, et al. [10] from Type I to type V. Type I which is usually a fusiform dilatation is the most common variant [10]. The pathogenesis of choledochal cyst is unclear. The ‘common channel’ theory as proposed by Babit, et al. still remains widely accepted. According to this theory, there is a reflux of pancreatic secretion into bile duct caused due to abnormal pancreatico biliary junction (APBJ). Other theories include those proposed by Singham, et al. & Davenport, et al. [11, 12]. Singham, et al. [11] proposed that the dilatation is caused due to embryological proliferation of epithelial cells. Davenport and Basu proposed that dilatation is due to decreased number of ganglion which causes distal obstruction and resultant proximal dilatation. An article by ES Rho, et al. [13] describes a case of Choledochal type IV cyst with APBJ and associated SPINK1 gene mutation [13]. Whether SPINK1 mutation really has any role in pathogenesis of choledochal cyst remains to be found out. In a hypothetical sense, the activated pancreatic enzyme caused by SPINK1 mutation could cause weakening of bile duct wall. The investigation of choice for diagnosis of choledochal cyst is MRCP and management involves surgical excision. The procedure followed depends on the type of cyst, but broadly involves complete excision of cyst and bilio- enteric anastamosis to maintain continuity. Even after excision there is an increased risk of malignancy and hence patient should be kept on follow up.

Conclusion

Choledochal cyst with pancreatic divisum is not a common occurrence. The management options need to be considered on case to case basis. Evidence of genetic mutation playing role in patho-physiology of pancreatitis in pancreatic divisum is accumulating. If the same genetic mutation has any role in pathogenesis of choledochal cyst remains to be found out. Further studies on the prevalence of SPINK gene mutation in patients of choledochal cyst will help in solving this problem.
