An Optimization Method for Quiescence in Chess-Playing Automata

Wheeler SF*
* Corresponding author
ISSN: 2996-671X  10.23880/oajda-16000138  Received: August 01, 2024  Published: August 13, 2024
 — views
 17 references
 5 figures
 2 tables
PDF
Keywords
Alpha-Beta Minimax Negamax Optimization Quiescence
Abstract

The purpose of this paper is to report the results of a study of a method for improving the performance of the quiescence phase of Alpha-Beta (α-β) search. The α-β enhancement to the Minimax algorithm optimizes the performance of depth-first search when the solutions being searched are arranged in near best-first order reducing the computational effort from O(bd) to O(√bd), where b is the branching factor of the game-tree and d is the depth of the search, Knuth and Moore. To postpone the asymptotic behaviour of the combinatorial explosion, a full breath search is only carried out to 5 levels of depth in this research. A narrow width search expanding only solutions involving the exchange of material, a pawn promotion or kingin- check situation is then expanded until the position reaches quiescence where no material exchanges or promotions are present. When quiescence is reached, the evaluation function is called to score the leaf node of the game-tree. For chessplaying programs, it has long been held that material exchanges should be explored first before other solutions are expanded to ensure optimum performance of α-β pruning, Gillogly. The research reported in this paper has established statistically that α-β pruning is improved if a solution not involving an exchange of material or promotion is tried first rather than a material exchange solution during the quiescence phase of α-β search.

Abbreviations

MCTS: Monty Carlo Tree Search; HAL: Heuristic Associative Linear-Algorithm; PVB: Provisional Backed-up Value; NLP: Natural Language Processing; OS: Operating System.

Introduction

In 1944, mathematician, physicist, and computer scientist, John von Neumann in collaboration with an economist, Oskar Morgenstern, authored their seminal work, “Theory of Games and Economic Behaviour” [1]. Together they conceived a revolutionary mathematical theory of economic and social organization based on a theory of games of strategy. Not only would this theorem revolutionize economics, but it would give rise to an entirely new field of scientific inquiry known as Game Theory and the Minimax Theorem.

Claude E Shannon [2], an MIT mathematician and Bell Labs researcher is regarded as the founder of information theory and the father of computer chess, applied this principle in a paper he published in 1950 titled “Programming a Computer for Playing Chess” [2]. By applying game theory to the chess problem he identified the principles that form the essence of today’s chess playing programs. Since the publication of Shannon’s paper, programming a computer for playing chess has moved from a conceptual framework to one of the early cornerstones of artificial intelligence research. Chess was then and is now the Drosophila Melanogaster (fruit fly) of artificial intelligence research.

Minimax Search, the Essence of Applied Game Theory

The Minimax Theorem is the algorithmic realization of Game Theory in two-player, zero-sum games of perfect information, such as chess. In the minimax theorem, the two players are Min and Max. The algorithmic realization of Minimax requires a Minimizer and a Maximizer. The Minimizer returns the minimum of the values produced by the Maximizer and passes that value one level up the game- tree toward the root of the game-tree, if that value is less than the value previously passed up one level of the game-tree. The Maximizer, on the other hand, returns the maximum of the values produced by the Minimizer and passes that value one level up the game-tree if that value is greater than the value previously passed up. This process continues until the best move, from the machine’s perspective, has been backed up the game-tree to the root node of the game-tree. Minimax search discovers the Principle Continuation that is the best path through the game-tree from the root node to the leaf node of the game-tree with the best minimax value [3]. A four ply illustration of a minimax game-tree is shown in Figure 1 with its backed-up values shown in parentheses.

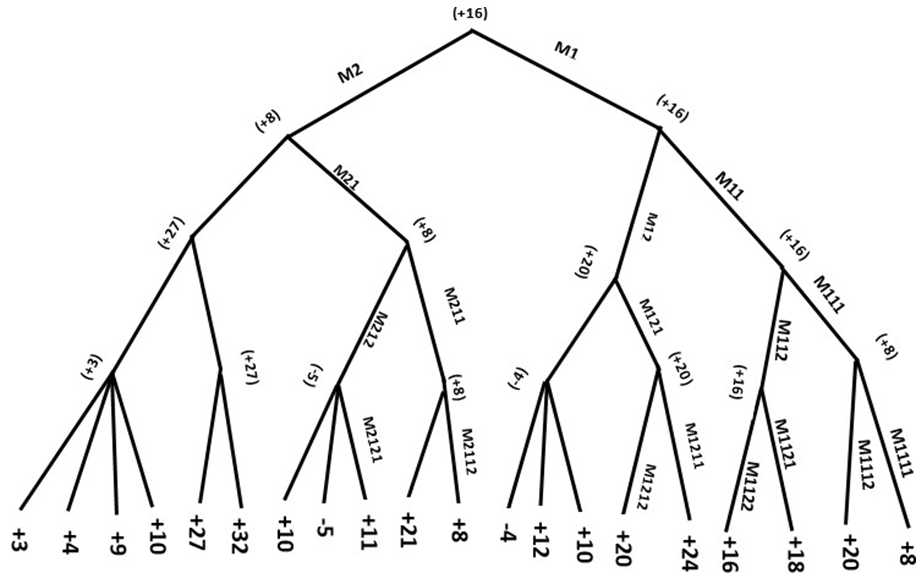

Figure 1: MiniMax game-tree above showing branches without pruning provided by α-β.
Click to enlarge
Figure 1: MiniMax game-tree above showing branches without pruning provided by α-β.

Alpha-Beta (α-β) Enhancement to Minimax

The discovery of the α-β extension of minimax search is not clear. Arguably, the most thorough and detailed description of the α-β extension was described by Donald E Knuth [4] and Ronald W Moore [5] of Stanford University who described the algorithm in a paper they published in 1975 Knuth and Moore [4]; Marsland [5]. Although, Knuth and Moore were among the first to describe the algorithm, other researchers included some of the principles of the α-β extension of minimax in their experimental models, including Arthur Samuel of IBM in his checkers playing program, [6]. Without α-β pruning, the minimax game-tree grows exponentially, where b is the branching factor of the game- tree and d is the depth of search, where the effort coefficient is described as O(bd). With α-β enhancement of minimax search, when the game-tree is arranged in near best-first order, the game-tree growth rate is reduced to O(√bd), Knuth and Moore [4]. The odd levels of the α-β game-tree including the root node are Alpha nodes. Even levels of the α-β game- tree consist of Beta nodes. Alpha nodes of the game-tree maximize and Beta nodes minimize. During α-β search of the game-tree a node that has a returned value that is less than Alpha or that is greater than Beta will be pruned from the game-tree search as an Alpha or Beta cutoff. Alpha and Beta are dynamic values that when taken together form what is known as the Alpha-Beta window. The α-β window narrows as α-β search progresses and more nodes and branches of the game-tree are pruned whose values fall outside of the narrowing α-β window [4, 7].

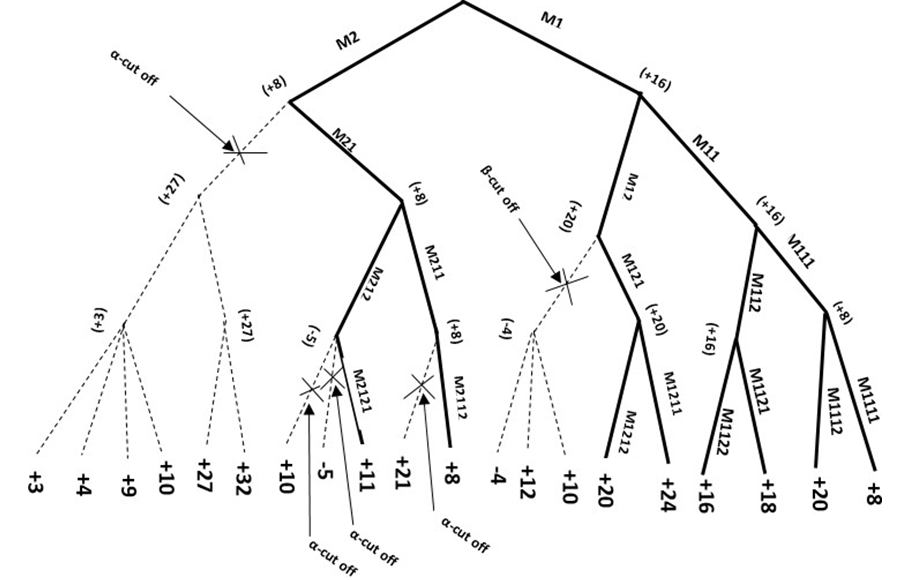

Figure 2: Alpha-Beta game-tree above showing branches pruned as α and β cut offs.
Click to enlarge
Figure 2: Alpha-Beta game-tree above showing branches pruned as α and β cut offs.

Monty Carlo Tree Search (MCTS) forms the search component of Deep Mind’s Alpha Zero reinforcement machine learning algorithm that was trained to play chess, beat Stock fish 8 in a computer chess match. Independent research, however, has shown that in certain applications α-β search might out-perform MCTS [8]. The Komodo-mc chess program, for example, has effectively replaced α-β search with MCTS. Komodo-mc plays at Grandmaster level, but not quite as strong as Komodo with α-β search presently. Komodo’s FIDE rating is 3200. Komodo is the world’s second highest rated linear symbolic chess-playing computer program. Stock fish 11 is currently the highest rated chess program in terms of player strength.

HAL (Heuristic Associative Linear-algorithm), this author’s chess-playing program has never been officially rated in terms of its player strength. However, in a chess game played between HAL and Komodo on chess.com, Komodo required 50 moves to defeat HAL, and HAL was not playing at its highest level of play [9].

The forward pruning of α-β search, cuts-off or prunes branches of a strongly ordered game-tree whose backed- up values fall outside the established α-β search window as illustrated in Figure 2.

Quiescence Extension of Alpha-Beta

Quiescence search is a narrow extended search after the full-width fixed-depth α-β search reaches its fixed-depth limit. This is known as the search horizon (Figure 3).

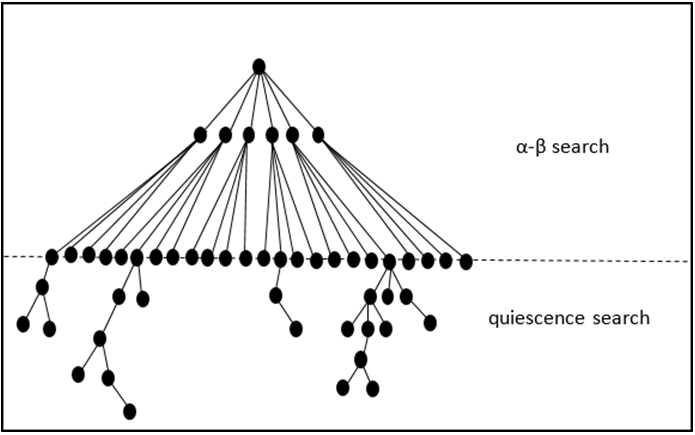

Figure 3: Quiescence Extension to Alpha-Beta Search
Click to enlarge
Figure 3: Quiescence Extension to Alpha-Beta Search

By extending α-β search with a narrow but deep quiescence search, the horizon effect can be addressed and eliminated. The horizon effect refers to a condition occurring when a fixed-depth, exhaustive α-β search ends on a terminal- node that contains an action that might be incomplete without knowing the consequence of that action if the next level of the game-tree were known, Berliner [11]. For example, if the fixed-depth search ends at a terminal-node on the search horizon that is a capture of an opponent’s piece, the returned score of the exchange of material might appear to be a good action for the program, but had the search been extended another ply of depth we might discover that the opponent would capture the capturing piece. The net value of the exchange might be less than favourable for the machine. By extending the search with a narrow search until the position becomes quiet where no exchanges occur, the program can avoid the consequences of the horizon effect. This narrow extended search is known as quiescence search, Marsland and Schaeffer [12]. In addition to single-ply extensions for capture moves, many implementations of quiescence search also extend for king-in-check situations for one or two additional ply of depth. Some implementations of the quiescence phase of α-β search also extend additional plies of depth when a pawn promotion is present at a terminal- node [13]. This author’s chess program, HAL, will also extend an additional ply of depth for a capture, pawn promotion or a king-in-check situation.

In this author’s chess-playing program, HAL, the quiescence phase of α-β search is managed by a Decrement function that is called as a parameter within the recursive call to the α-β search function, NFAB. In a recursive call to α-β search (NFAB) we must include a reference to a variable that contains a value initially indicating to what depth (number of plies) we wish the full-width fixed-depth α-β search to be performed. If, for example, we wish the program to generate a fixed-depth game-tree of five levels of depth, we would initialize the value of that variable to 5 and decrement it by 1 each time another recursive call to the α-β search function is performed. When the Depth variable is decremented to 0, five levels (or ply) of the game-tree have been generated. At that point the program has reached the terminal-node (leaf node) of that path through the game-tree. An Evaluation function is then called to score the value ascribed to that path through the game-tree.

In this author’s chess-playing program, HAL, the depth- limit for recursive calls to the α-β search function is located in an integer variable named Depth. This variable is passed to the Decrement function as an imbedded parameter within the recursive call to the α-β search function NFAB thusly:

Value: = −NFAB (NewPly, −Beta, −Max (Alpha, Score), Decrement (P, Depth));

It should be noted that the initial call to the Alpha-Beta algorithm NFAB is as follows:

Value: = NFAB (P, Alpha, Beta and Depth));

The Decrement function will then decide whether to decrement the Depth variable or not. If the Decrement function does not decrement the Depth variable, then it has found that the move at the terminal-node is a capture, a pawn promotion, or a King-in-check situation, and an additional level of the game-tree will be generated until Quiescence has been reached. When Quiescence is reached during the Quiescence phase of α-β search the terminal position is said to be a Dead position to which the Evaluation function (Eval) is invoked to compute the value of that path through the game-tree that ends on the terminal-node in question [14]. The value returned by the Evaluation function will be backed- up the game-tree toward the root-node of the game-tree by the rules of Minimax. The value returned by the Evaluation function is known as the Provisional Backed-up Value (PVB) [3]. The Pascal source code for the Decrement function of the HAL chess program follows below.

(* QUIESCENCE *) (* Decrementor for Depth Value in Quiescent NFAB Search Function *) FUNCTION Decrement (P: POINTER; N: INTEGER): INTEGER; VAR D, I, L, S, X: INTEGER; BEGIN S: = P ^. SX; (* S = Side whose turn it is to move, White = 1, Black = 2 *) I: = P ^. IX; (* I = Index of move i n Move−List that might be a capture or Promotion *) L: = P ^. LX; (* L = Level of depth of the Game−Tree being expanded *) D: = N − 1; (* D = Recursive alpha −beta value of full –width level syet to be expanded *) X: = S + ( ( S − 1 ) * −2 ) + 1; (* X = Opponent; If S = 1 t hen X = 2, I f S = 2 t hen X = 1 *) (* Test for Singular Extension for Quiescence Move Generation *) IF (N = 1) THEN (* A Leaf −Node of the Game−Tree has been reached *) BEGIN IF ( (L = Horizon) OR (L = Quiescence) OR (P ^. Move_List [P ^. MLI [I] ] . Mode_Cell = ’M’) )

THEN

(* Mated or Search Horizon Reached *)

$$ \begin{array}{l} \mathrm {B E G I N} \\ D: = 0 \\ \mathrm {E N D} \\ \mathrm {E L S E} \\ \mathrm {B E G I N} \\ \mathrm {I E} (6) \\ \end{array} $$

IF (P ^ . Move_List [P ^ . MLI [I] ] . Mode_Cell IN

[ ’C ’,’ P’] ) THEN

(* Capture or Pawn Promotion *)

BEGIN D: = N

(* IF a Capture or Pawn Promotion, Don’t

decrement Depth *)

END

(* Allow one more level to be generated *)

$$ \begin{array}{l} \mathrm {E L S E} \\ \mathrm {B E G I N} \\ D: = N - 1 \\ \end{array} $$

(* Else, IF not a Capture or

Promotion, decrement Depth *)

$$ \begin{array}{l} \mathrm {E N D} \\ \mathrm {E N D} \\ \mathrm {E N D} \\ \mathrm {E L S E} \\ \mathrm {B E G I N} \\ D: = N - 1 \\ \end{array} $$

(* Else, IF None of above,

decrement Depth *)

END;

Decrement: = D (* Return Depth value to Alpha−Beta

Recursive Call *)

END;

Code 2: Pascal code for the Quiescence search function.

The Experiment

When the chess program, HAL, enters the quiescence phase of α-β search of the game-tree, the search is extended one additional ply (level) of depth if the last move considered was a capture move or a pawn promotion or king-in-check situation. This process continues until there are no captures or promotions produced and the search is said to have reached quiescence. At which point the static evaluator is called and the terminal position is scored and the returned value is backed up the game- tree toward the root node of the tree.

This research expands on the author’s earlier published research involving the behaviour of α-β search on game- trees [15], and an optimization technique first introduced in theory by Dr. Monroe N [16] in his chess playing algorithm: Ostridge Newborn. Dr. Newborn [16] incorporated a one- move-generator to generate and try only the first move of a move-list before generating a complete list of all legal moves for the present board position. If the first move causes an Alpha or Beta cut off, generating a complete move-list is unnecessary. If a cut off does not occur on the first move, the full- move-list-generator is called and a list of all legal moves is generated for the current board position. The Experimental Model The experimental model that rendered the metrics reported in this research paper was created by its principal author Wheeler S [9]. The source code is written in Turbo Pascal 6.0, consisting of 8,000+ lines of source code. The program has been setup to report the metrics that support this research. The Turbo Pascal 6.0 compiler produces only a 32-Bit DOS executable (.exe). To execute HAL on a 64-bit Windows Operating System, an emulator, such as DOSBOX must be used. HAL can be executed on a Linux or UNIX operating system with DOSEMU.

The chess program, HAL, utilizes the Iterative- Deepening, Fail-Soft Negamax α-β search algorithm (NFAB) with Quiescence search singular extensions, the Killer Heuristic that maintains four Killer moves in its Killer-Table and a larger Refutation-Table of previously discovered moves that caused pruning to occur [17]. These methods collectively help ensures that moves with the highest probability of achieving maximum α-β pruning will be arranged at the top of the move-list after reordering of the move-list occurs. These processes are applied to each level of the game-tree as each new ply of legal chess moves is generated [5, 9]. The chess program, HAL, has full communications capability through natural language processing (NLP) such that it can be configured through a series of English directives given to the chess automaton, HAL, at start-up. The hardware on which HAL was executed consisted of a Hewlett Packard, Elitebook 8530w laptop computer with 8 Gigabytes of DRAM memory and an Intel T9900 3.06 Gigahertz Core2 Duo CPU installed. The operating system (OS) was 32- Bit Windows Professional.

The Test Runs

To gather the metrics supporting the research reported in this paper, the chess program, HAL, was run twice. Both runs of the program were given the identical 24 chess moves. HAL (the chess program) played the black pieces in both instances. One execution of the chess program was setup to include the author’s quiescence search optimization enhancement. The other execution of the chess program was setup to exclude the quiescence search optimization enhancement.

The setup for both runs of the program, HAL, only required setting a Boolean variable to true (quiescence optimization) or False (without quiescence optimization) through natural English typed commands. The two executions of the chess program were configured by commands given to HAL’s initial NLP (Natural Language Processing) interface dialogue. To set the chess program up to run with quiescence optimization the following request was entered: “HAL, attempt quiescence optimization.” To set the chess program up to run without quiescence optimization the following request was entered: “HAL, do not attempt quiescence optimization.” HAL must also be requested to report the metrics for both program setups by entering the following request when the chess program prompts for user input, “HAL, report game statistics.” HAL was also requested to play with skill level 5, which generates a 5-ply full-width game-tree before extending with a narrow- width quiescence search.

The Metrics Produced by the Experimental Model, HAL

The metrics produced by the two separate runs of the chess program, HAL, are included in the Table 1 above. One run was without quiescence optimization and the other was run with quiescence optimization. The following table shows the computation time and number of nodes processed for each of the twenty-four chess moves for both runs of the chess program, HAL.

Human
White
Moves		HAL
Black
Moves		Time with
Opti- mization
Min:Sec.Hnd		Time Without
Opti- mization
Min:Sec.Hnd		Nodes
Expanded
with Opti-
mization		Nodes
Expanded
Without
Optimization		Branches
Pruned: Alpha-
Beta Cutoffs
without
Optimization		Branches
Pruned:
Alpha-Beta
Cutoffs with
Optimization
e2-e4e7-e50.0006940.00.50792860108107
g1-f3g8-f60.0008910.01.431,18,9871,19,03115,20014,066
f1-b5f8-d60.0007060.01.2598,1231,03,68513,66513,809
d2-d3a7-a60.00.430.00114656,11685,60811,2579,740
b5-c4b7-b50.00.310.00075239,37459,9787,5656,085
c4-b30-00.00.320.02.1446,3801,49,23225,1616,993
0-0b8-c60.0009490.07.581,42,6617,73,16367,94017,437
a2-a3c6-d40.04.510.14.507,78,28811,50,2341,35,37478,988
b3-a2c8-b70.04.170.16.1578,55,65716,06,8441,46,69575,755
h2-h3d4xf30.0126160.43.183,39,7794,85,8553,53,6832,45,852
d1-f3d6-c50.12.410.01618111,29,70522,18,8762,01,9301,19,815
b1-c3d7-d60.0119210.02822915,41,25138,13,6303,69,2831,58,496
g3-h2d8-h40.0077550.49.319,50,45847,18,6024,31,83796,570
b2-b4c5-d40.51.510.01475744,47,00117,82,2101,78,7614,38,498
c1-b2h5-f40.51.251.08.0049,84,94862,73,2666,10,0994,83,596
a1-e1a6-a50.0787270.1670831,08,07,6572,22,14,77222,17,02710,69,545
b4xa5a8xa50.034850.08864646,67,7481,16,46,84711,66,1994,56,105
h2-h1d4xc30.0300120.05510439,64,59771,51,2027,46,3774,23,911
b2xc3a5-a30.05.480.0051624,77,9925,93,87374,41261,489
a2-b3f4xd30.07.250.10.446,65,9849,97,1501,15,03382,843
e1-e3d3-f40.0065860.0106258,56,41814,38,7751,45,66589,376
c3-b2a3-a50.09.560.21.258,91,36419,88,3362,02,73193,377
b2-c3a5-a60.0132750.26.3518,39,57024,35,2212,45,1401,76,240

Table 1: Table produced from the two runs of the chess program, HAL, both with and without optimization.

A line graph illustrating a comparison of the performance metrics and variance produced by quiescence optimization as compared to the performance metrics without quiescence optimization are offered in Figures 4 & 5 below.

In both line graphs below, a solid line is with optimization and a dashed line is without optimization.

Figure 4: Line Graph of the Elapsed Move Times with Optimization and without Optimization.
Click to enlarge
Figure 4: Line Graph of the Elapsed Move Times with Optimization and without Optimization.

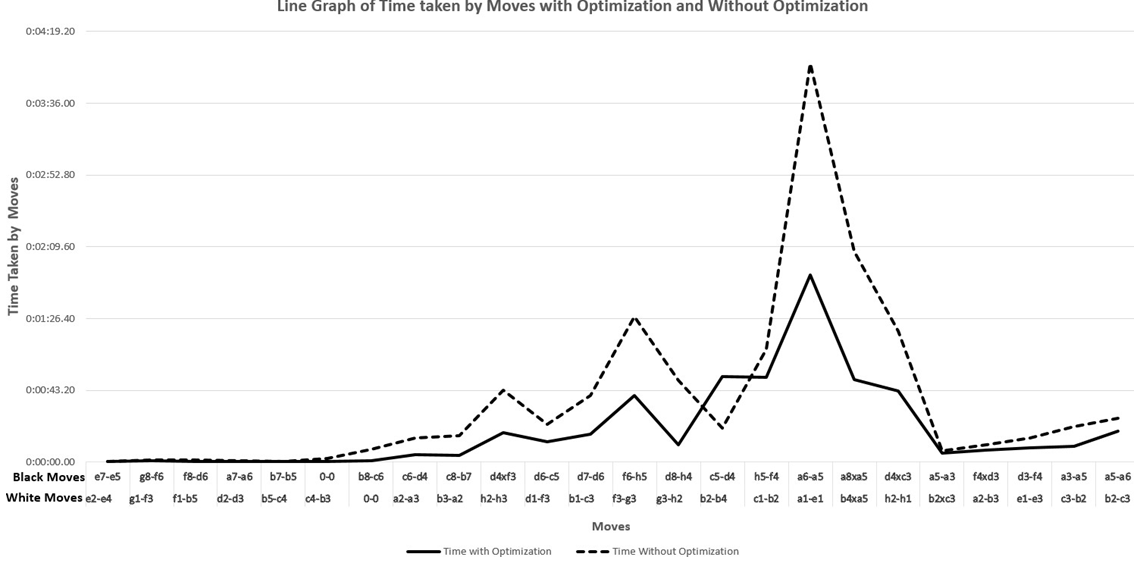

Figure 5: Line Graph for the Computational Effort of moves with Optimization and without Optimization.
Click to enlarge
Figure 5: Line Graph for the Computational Effort of moves with Optimization and without Optimization.

The Hypothesis

The Null Hypothesis

H0: Trying a move that will not cause a singular extension of the game-tree before a move that will cause a singular extension will not demonstrate a statistically significant improvement in performance of the quiescence phase of α-β search.

The Alternative Hypothesis

Ha: Trying a move that will not cause a singular extension of the game-tree before a move that will cause a singular extension will demonstrate a statistically significant improvement in performance of the quiescence phase of α-β search.

The Hypothesis Test

The hypothesis test was performed with a standard T-Test as applied to the output metrics produced by the chess program for both the quiescence alpha-beta search with optimization and quiescence alpha-beta search without optimization.

T-Test Results

With a confidence interval of 95% and an α (alpha) of 0.05, for both a two-tailed and a one-tailed t-test of the standard distribution of the data points, the P value of the t-test was less than α rejecting the aforementioned Null hypothesis in favour of the alternative hypothesis. Thus, this establishes the statistical significance of quiescence alpha- beta search with optimization over quiescence alpha-beta search without optimization. The t-test results follow below.

import numpy as np import pandas as pd from bio in fokit . analys import stat df = pd . read csv (“chess data 1.csv “) dframe = df [ [’Moves Without Optimization’ , ’Moves with Optimization’] ]

res = stat ( ) res. ttest (df = dframe, res = [’Moves Without Optimization’, ’Moves with Optimization’] , test_ type = 3) print (res . summary) Code 4: Python program for T-Test Results.

The P value is less than 0.05 in both one-tail and two- tail t-test, which means we can reject the null hypothesis in favour of the alternative hypothesis (Table 2).

PairedT-Test
Sample Size24
Difference Mean1.52E+06
t2.63178
Df23
P-value (one-tail)0.007454
P-value (two-tail)0.014908
Lower 95.0326237
Upper 95.02.72E+06

Table 2: Hypothesis Test Results.
