A Brief Review of the Thermochemical Platform as a Promising Way to Produce Sustainable Liquid Biofuels in Biorefinery Concept

Introduction

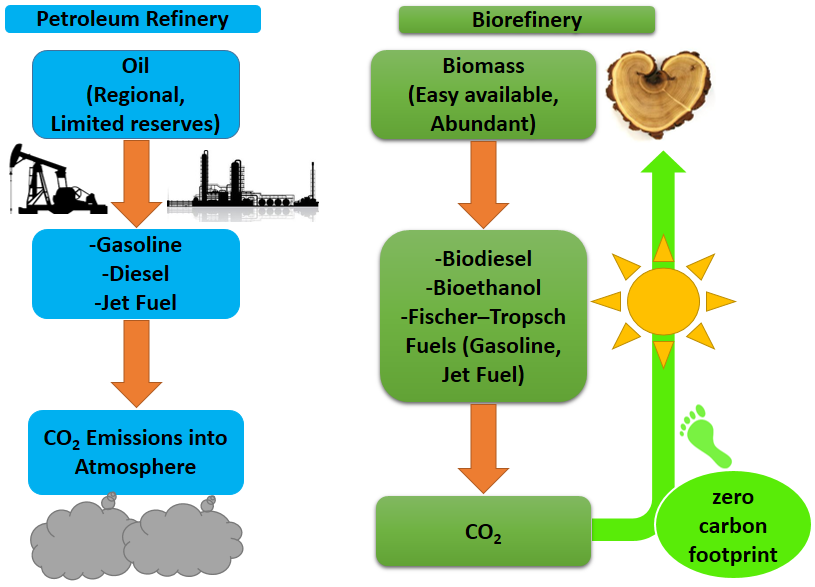

The scientists have made many investigations on the replacing biomass resources with fossil fuels due to environmental, economic and political issues. The biomass and biomass-based waste resources are renewable, abundant, economic, easily accessible, sustainable, clean, and have the potential to replace oil in the production of liquid hydrocarbon fuels for the transportation sector with a zero-carbon footprint [1]. Today, lignocellulosic biomass can be converted by thermal, biological or catalytic routes to a broad range of value-added fine chemicals, biofuels and green polymeric materials via biorefinery concept. The biorefinery is analogous to today’s petroleum refinery and it works like a facility that defragments the conversion methods of biomass and equipment to obtain above-mentioned products from different kind of feedstock [2]. A simplified flow chart that compares these two different concepts was given in Figure 1. The biorefinery is not a single or fixed technology. It is collection of processes that utilize renewable grain, lignocellulosic or high moisture content biomass to produce a final product, or products, in a manner that is a no waste leaving behind, and by means of every component from the process is converted or used in a manner to add value, and therefore sustainability to the plant. Biomass can be converted into a great variety of energy and fuels by using different kind of chemical, biological and thermal techniques. The biorefinery concept basically consists of sugar and thermochemical platforms [3].

Click to enlarge

and fructose via hydrolysis reactions. Then, these sugar molecules are transformedto furfural and HMF in the presence of an acid catalyst using dehydration reactions. Finally, these intermediates are converted to liquid alkanes (C9-C15) by aldol-condensation over a solid base catalyst and hydrogenation over a metal-acid bifunctional catalyst [5]. The “thermochemical platform” aims to convert biomass to intermediates such as bio-oil, syngas, and bio- polyols. Liquid transport fuels, top value chemicals and environmental-friendly polymeric materials obtained via different liquefaction techniques. In this platform, for the production of liquid fuels from lignocellulosic biomass, the common practices consist of the removal of the extensive oxygen content from raw material for the purpose of the increasing the energy density and the molecular weight of the obtained hydrocarbons generating C–C bonds between the intermediate compounds. The procedure for reaching this target usually involves two principal stages. In the first stage, the lignocellulosic raw material converted into a gaseous or liquid phase that involves a diverse range of compound via partial reduction of oxygen. Then, in the second stage, these compounds are upgraded catalytically to the targeted hydrocarbons via controlled C–C coupling reactions and reduction of the remaining oxygen content [6].

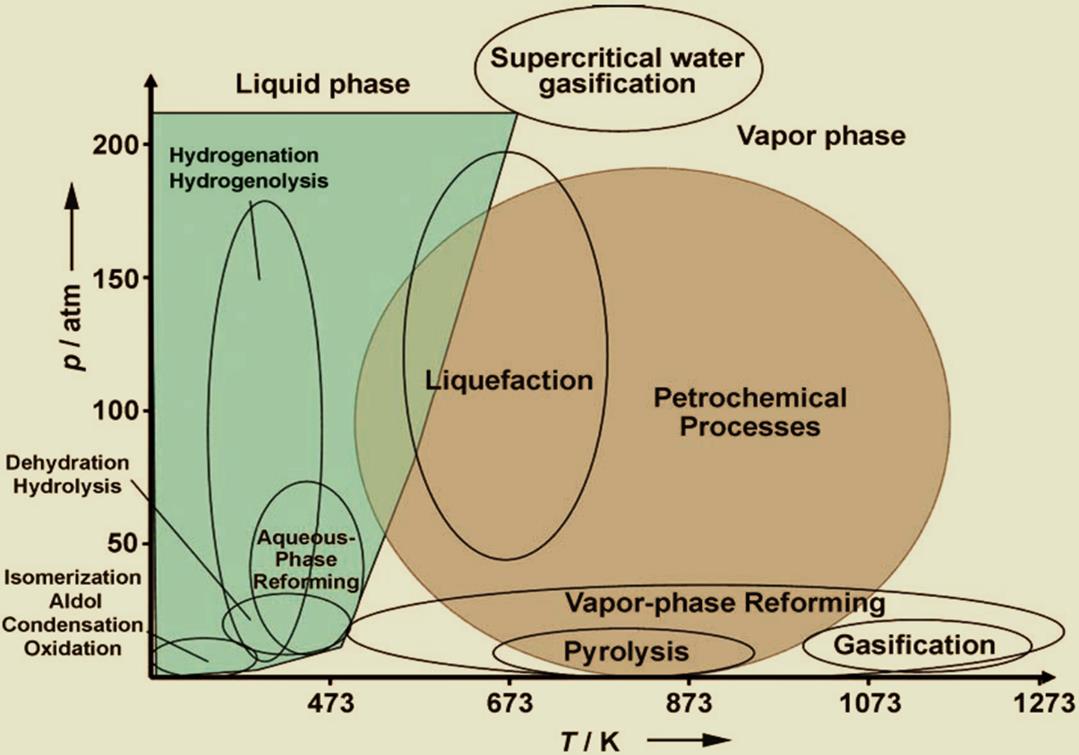

Figure 2 presents the temperatures and pressures of the thermochemical methods mostly used for the conversion of petroleum and biomass based raw materials. Petroleum operations are generally carried out at raised high temperatures, and most of these operations are performed in the vapour phase. On the other hand, the thermochemical processing of biomass based raw materials are usually carried out at moderate temperatures, and these operations are predominantly performed in the liquid phase.

Click to enlarge

Biofuels via Biorefinery

The biofuel is defined as the solid, liquid, or gaseous fuels that are overwhelmingly obtained from renewable biomass based raw materials. To eliminate the contradiction in terms, these fuels can be classified as first generation, second generation, third generation, and fourth generation depending on their production methods and feedstock. Some key information about these 4 different generations was briefly summarized in Table 1. The first generation biofuels such as biodiesel,

Table 1: Key information and examples for different generations of biofuel. With the exception of the production of first generation biofuels and conventional direct combustion of biomass, several thermochemical processes have been used for the production of second-generation biofuels such as bioalcohols, bio-oil, Fischer–Tropsch diesel and gasoline, biohydrogen and liquid alkanes. Second-generation technologies use a wide range of biomass resources, from agriculture to forestmostly non-food lignocellulosicssuch as straw, wood and energy crops. Moreover, during the production of second-generation biofuels a great majority of the raw material is converted to end-product with very low or zero residue which is a major problem for the first- generation biofuels [10]. The third generation biofuels involve the fuels that obtained from photosynthetic microorganisms such as microalgae which have any rivalry with edible oily seeds and agricultural energy crops. Microalgae have a substantial lipid content that encourages the researchers to utilize it as a biofuel feedstock. The high growth rate, short harvesting cycle and limited land necessity of microalgae were also another factors that made it an important candidate to meet the cumulative demand for biofuels. The algal biomass or lipids extracted can be converted into various types of renewable biofuels such as biodiesel via transesterification of algal oil along with bio-alcohols, bio-oils from via hydrolysis, fermentation, and liquefaction of whole algal biomass or extraction wastes [11, 12] . Recently, the desire to produce biofuels in a more efficient way with alternative raw materials brought about a new generation of biofuels. Scientists assume that the fourth generation biofuels (i.e. photobiological solar fuels, electrofuels) will generate a novel perspective in the field of biofuels. The idea grounds on a new concept called “synthetic biology”, in which biological systems can be genetically modified via metabolic engineering techniques in order to improve the productivity of the microorganisms. The genetically modified microbes are able to convert the solar energy to fourth generation biofuels using non-depletable feedstocks such as light, water, and CO2.A considerable amount of biofuel would be obtained via engineered photosynthetic microorganisms or synthetic “living factories” in near future. For example, the cyanobacteria have been genetically modified to produce a variety of biofuels and value added chemicals (e.g. H2, ethanol, isobutanol, isoprene, lactic acid). Transformation of various genes about fermentative metabolism pathways into cyanobacteria via metabolic engineering methods has made it possible to obtain biofuels directly from sun light and Calvin–Benson cycle intermediates [13, 14]. From a sustainability perspective, biofuels have both advantages (e.g., energy security, GHG reductions, and reduced air pollution) and disadvantages (e.g., intensive use of resources, monocultures, reduced biodiversity, and even higher GHGs through land use change). The sustainability of biofuel is based on three fundamental columns of economic, environmental and social sustainability in an integrated way to maximize benefits and minimize risks. Competitiveness of biofuels in the long terms will continue to depend on the economics of fossil based energy, the policy support environment, and the comparative incentives and disincentives to bolster the renewable versus fossil-energy resources. Several sustainability initiatives were described via standards, principals and criteria as a regulating tool for biofuel and raw material trading. Both national and international initiatives lead for a lot of biofuel-specific certification schemes either pointing all biofuels as an entirety or predisposed to specific biofuel feedstock (e.g., sugarcane, soybeans, palm oil). Although they have a variety, the most of the biofuel certification schemes pursued a ruler kind of governance: voluntary, industry-led, multi- stakeholder forum with some input from civil society [15]. Economic sustainability (viability) needs to long-term benefit, minimum rivalry with the food chain and competitiveness with fossil based fuels. The financial aspects of biofuels have been in part maintained via active policy consolidation standards (grants and mandates) which make it hard to estimate the long-term economic viability of biofuel systems current or future. On the other hand, economic sustainability ay conflict with ecological contemplations when the requirement to the augment returns on ventures directs seeking after escalated administration practices that could conflict with the economical utilization of assets, and intensify rivalry with food for gainful sources such as land. Consequently, extensive profitability gains are required to limit such clashes and conquer any hindrance amongst proficiency and long-run supportability [15]. Environmental sustainability appraisals for biofuels are tough due to the multifaceted nature and the assortment of the indicators, some of which are worldwide (e.g., GHG, renewable energy), while others are local or regional (water management, soil and source exhaustion, local contamination, etc.). Activities on maintainability by means of controls, mandates or private-drove certification plans have had no reasonable and quantifiable effect, aside from expanded consciousness of their significance, and this despite the various activities and the great sustainability debates. A key issue keeps on being an absence of agreement on estimation procedures (e.g., life-cycle assessments and the best approach to handle indirect land utilize change) [15]. The social effects of biofuel certification plans remain the weakest connection in most manageability activity up to this point. Most certification plans, scorecards, and regulations go on about social effects but only look to relieve few of the conspicuous negative effects (e.g., child labor, minimum wage, compensation for lost land and resources) or call for adherence to national laws or worldwide traditions. Besides, confirmation of how these measures are really actualized, or their effects on the ground, has been exceptionally restricted, and fruitful cases are uncommon. Unambiguously, the social sustainability measurement requires a subjective reconsider that goes beyond moderating couple of negative effects, yet rather incorporates participatory procedures that guarantee more extensive monetary advantages to negligible stakeholders and local groups, and therefore ensures more extensive acknowledgment and dependable stewardship of sources [15].

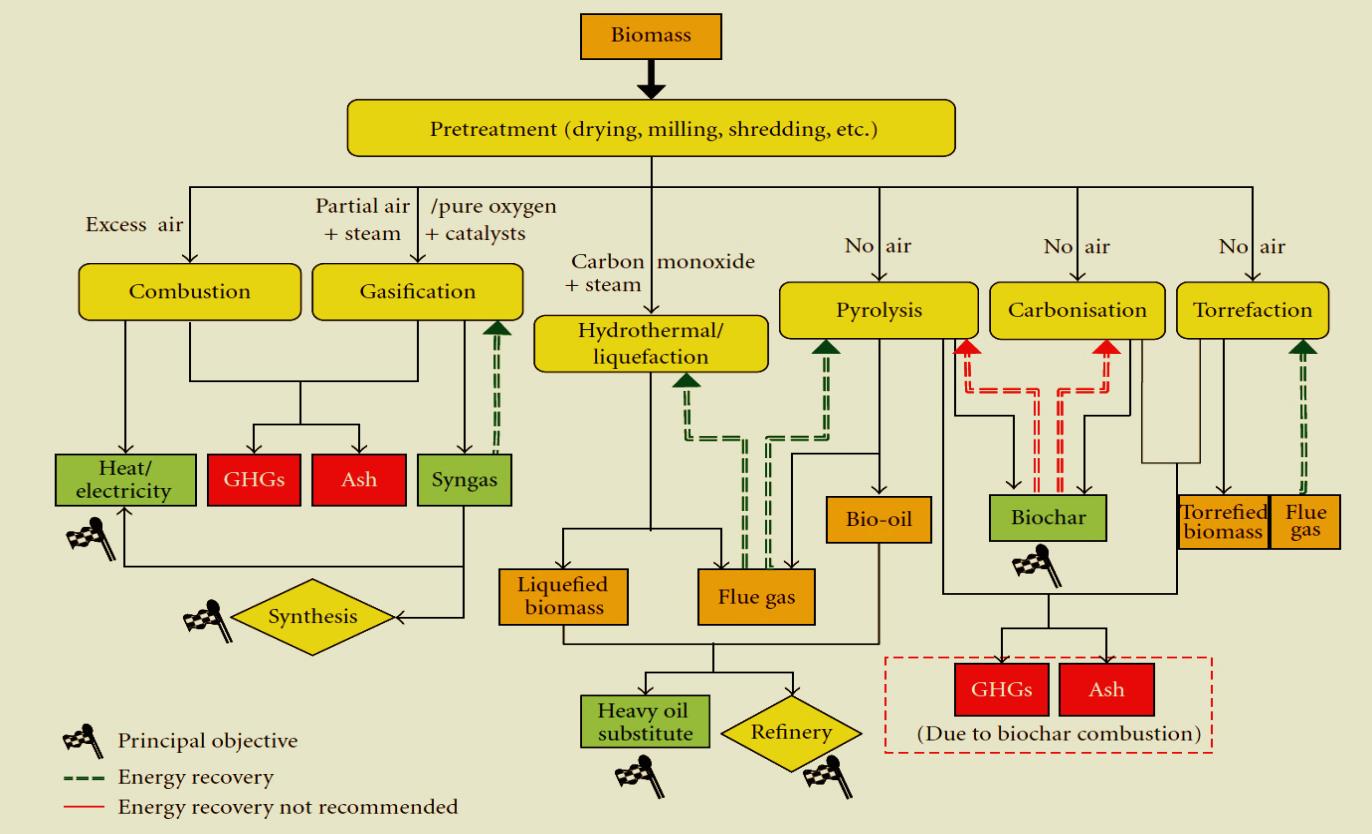

Pyrolysis

The pyrolysis process can be defined as the thermal destruction of biomass in the absence of oxygen or air under inert atmosphere producing three main valuable product solid char, noncondensable gases and a liquid rich in oxygenated compounds called as bio-oil [24]. Depending on the process conditions, the proportion of these fractions varies significantly. Pyrolysis process usually operates in the range of 300-500 ˚C temperatures and sometimes goes up to 700˚C. During the pyrolysis operation, raw biomass undergoes a number of reactions including depolymerization, dehydration, decarboxylation, esterification, and C–C bond breaking which lead to the formation of reactive vapors [25]. The carbohydrate polymers partially depolymerize into smaller sugar units, after raw material is heated at low temperatures (<200°C) for prolonged reaction times (i.e., hours). The dehydration process occurs at higher temperatures about 300°C, generating unsaturated polymers and char. After it is heated at higher temperatures, an extended cracking of C-C and C-H bonds occurs, which gives varied C2-C4 oxygenates and over 700°C gas mixture contains CO, CO2, H2 and CH4 [26]. Bio-oil is a potential source of fuel and energy applications with a higher heating value of around 17 MJ/kg. Bio-oil can substitute for fuel oil or diesel in many stable applications including boilers, furnaces, engines, and turbines. However, the bio-oil has different chemical and physical properties combustion characteristics due to pyrolysis condition and raw material. That situation makesfull-scale processes more difficult. Nevertheless, compared to traditional biomass fuels such as black liquor or hog fuel, bio-oil has a higher energy density which presents a much better opportunity for high-efficiency energy production [27, 28]. Although pyrolysis bio-oil can be used directly in furnaces, boilers and turbines for heat and electricity production, its utilization as a transportation fuel has various lacks. Because some unfavorable properties of bio-oil such as high oxygen content, high water content, high density, high viscosity, high acidity, low heating value and incompatibility with oil derived hydrocarbons adversely affect fuel quality of bio-oil [29]. Therefore, an upgrading process such as catalytic cracking is required in order to obtain a suitable fuel before its application for transportation. Many techniques have been developed to upgrade the bio-oil to conventional hydrocarbons fuels such as gasoline, diesel, kerosene, LPG and methane [30].

Hydrothermal/Solvolytic Liquefaction

The high-pressure liquefaction is an elevated temperature process during which high molecular weight components of biomass is broken into smaller molecules in the hot compressed water or alcohols (e.g. ethanol), acetone and mixtures of the solvents like alcohol-water, water-phenol and dioxane-water co-solvents in the presence of the most commonly used alkaline catalysts (e.g. sodium carbonate, sodium hydroxide) and different catalysts (e.g. Raney nickel, iron (II) sulfate, hydrochloric acid) or without the presence of a catalyst with/without reducing gas such as H2 and CO [31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41]. Even though water is an inexpensive and extensive solvent for the high-pressure liquefaction, it has some technical problems because of its vapor-liquid critical point (374.3°C, 22.1 MPa). This high pressure and corrosive properties of water cause compelling process conditions. Moreover, water environment as a solvent for liquefaction of biomass, yields a liquid product which has higher oxygen content, therefore lower heating value. Hence, because of the critical values of organic solvents are lower than that of water, many scientists have used hot pressurized mixtures of water-solvent or only organic solvents as the reaction medium. It was reported organic solvents improve liquid product yield with lower oxygen content and mixed solvents show positive synergistic effects on liquefaction of biomass with the loweramount of the solid residue [42, 43]. Hydrothermal liquefaction is usually operated at a temperature range of 280-370°C and pressure range of 10 and 25 MPa. In this process, unlike the pyrolysis process, the raw material with high moisture can be directly converted into liquid products without an energy- consuming drying step [44]. Generally, feedstocks containing 80% water are subjected to subcritical temperatures with reactive hydrogen or carbon monoxide. The oxygen content of biomass is removed mainly as carbon dioxide (CO2) during the process. The liquid product obtained after the high-pressure liquefaction usually called as “bio-crude” and bio-crude is a mixture with a broad molecular weight distribution and consists of different kinds of molecules. It is not miscible with water, the heating value is in the range 30–36 MJ/kg, the atomic H/C ratio is 1.0–1.3 and average molecular weight is about 300 [45, 46]. Hydrothermal liquefaction process can be operated both at sub- and super-critical solvent conditions. The water behaves as a reactant and catalyst at the same time during the process. The water has a few very interesting properties such as low viscosity and high solubility of organic substances at the conditions near its critical point. This makes the sub-critical water an excellent medium for productive, homogeneous and rapid reactions [47]. Subcritical water acts very differently from water at room temperature and in some way from supercritical water. The dielectric constant decreases from 78 Fm-1 at 25°C and 0.1 MPa to 14.07 Fm-1 at 350°C and 20 MPa. Thus, the solubility of hydrophobic organic compounds, such as free fatty acids is increased [48]. Usually, liquefaction efficiency of the process is correspondingly relevant with the dielectric constant of the solvent [49]. The most attractive approach to such improvement was believed to direct high-pressure liquefaction of biomass by using supercritical solvents [50, 51]. The supercritical fluid environment has unmatched transport properties which are diffusivity similar to gases and density similar to liquids and has perfect complete miscibility with the liquid/vapor products. Also, materials which are insoluble in both liquid and gaseous state of the solvent can dissolve in the supercritical phase of solvent and supercritical solvents can ensure a single state medium for reactions that would otherwise happen in a multiphase medium under conventional conditions [52].

Conclusions

Nowadays alternative resources have been very imported for chemical, fuel and energy production due to economic and environmental issues about fossil fuels. Biomass based resources as an alternative feedstock have a great potential for the production of sustainable liquid biofuels. Because of abundance, easy availability, carbon neutrality, clean and eco-friendly features of biomass, there is a growing interest in “green production” by using biorefinery concept. Today, thermochemical conversion technology is seen the most feasible and practicable platform to convert biomass into value-added products via complex chemical and thermal reactions with a minimum residue. However, it still needs more research & development studies for the commercialization and competition with the petroleum refinery. Thus, a significant majority of the main transportation fuels would be obtained from biomass using this platform in the near future. This also will help overcome some critical concerns about land use, economic viability and long- term security of food based crops etc.
