Comparative 3D Modeling of Anti-HRP Sea Star Primitive
Antibodies and Their Relationships with Mus Musculus Fab

Leclerc M

doi:10.23880/vvoa-16000170

Vaccines & Vaccination Open Access Research Article 5 min read

Comparative 3D Modeling of Anti-HRP Sea Star Primitive Antibodies and Their Relationships with Mus Musculus Fab

Leclerc M^*

^* Corresponding author

ISSN: 2578-5044 10.23880/vvoa-16000170 Received: May 17, 2024 Published: May 30, 2024

— views

4 references

15 figures

PDF

Keywords

Sea Star Mus Musculus Antibodies

Abstract

Presentations of sea star primitive antibody 3D modelizations, according AlphaFold and Swiss Model predictions were performed in EMBL Grenoble a superposition of the 2 predictions lead us to envisage a true link with a « part » of Mus musculus IG antibody: the Fab one of Heavy Chain. But, at every time, in such presentations, it could be contested by those who don’t believe in the existence of the IPA (Invertebrate Primitive Antibody) for various reasons we don’t want enumerate.

Introduction

Recently, (2024) we have discovered CDR1, CDR2, CDR3? In sea star Immune system [1] with the help of Dr Sofia Kossida (IMGT Montpellier) [2, 3]. We try in the present study to give modelizations of the sea star IGKappa protein [4] which recognizes specifically the antigen HRP. In the first part we recall the different data and characteristics of sea star IGKappa: i-e sequence and different alignments (AA) when compared to mammal sequences in AA. At last we attempt to find again, in the 3D modelization, the « regions »which may be compared to CDR1, CDR2, and CDR3.

Material and Methods

AlphaFold and Swiss Model entities, which predict a protein’s 3D structure based on its primary amino acid sequence, were used. Recalling of IGKappa gene sequence and comparison of AA alignments between this last one and mammal ones are first given:

Sequence

MRGNMASLWMFFFVVGITLQRSLAIYTFREQPSDTSALQGS

TVVLHCSVEQYINTTAIVWWSRDSVISHNKDLKLSSLNTDQ LQRYSISGDASRGEFNLKIVNFTATDAASYRCQMFA (Figure 1)

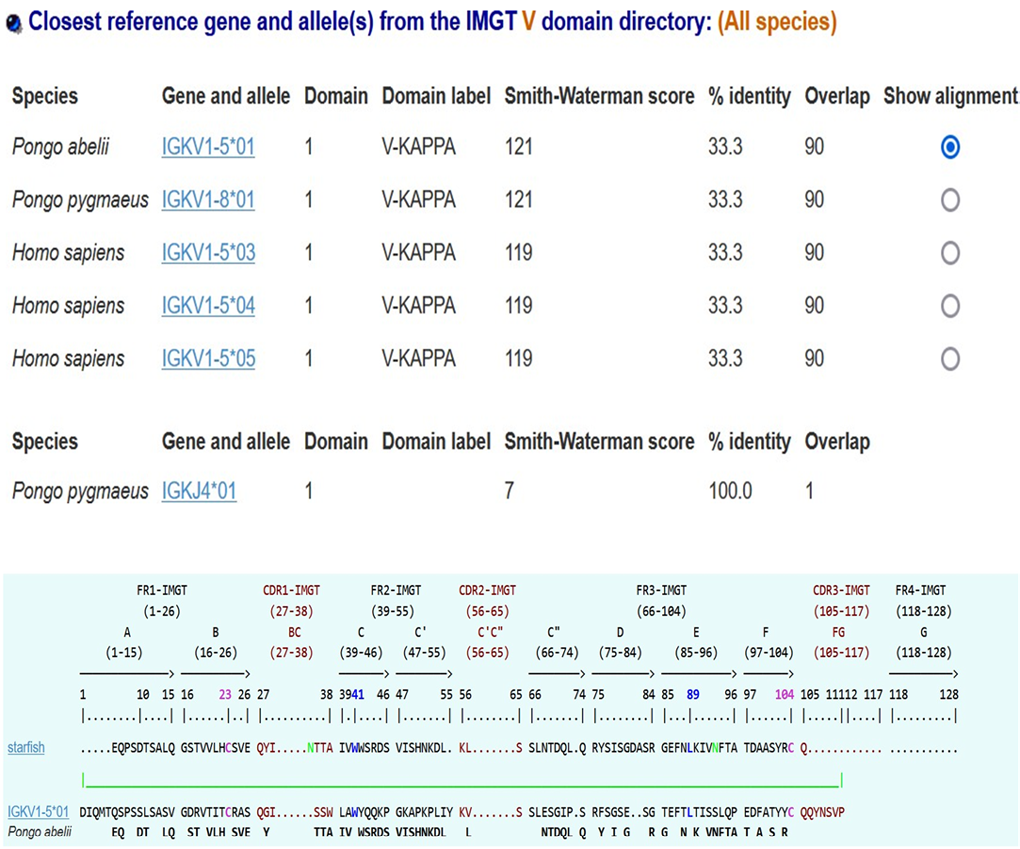

Figure 1: IMGT/DomainGapAlign version: 4.10.3 (2021- 12-06).

Results

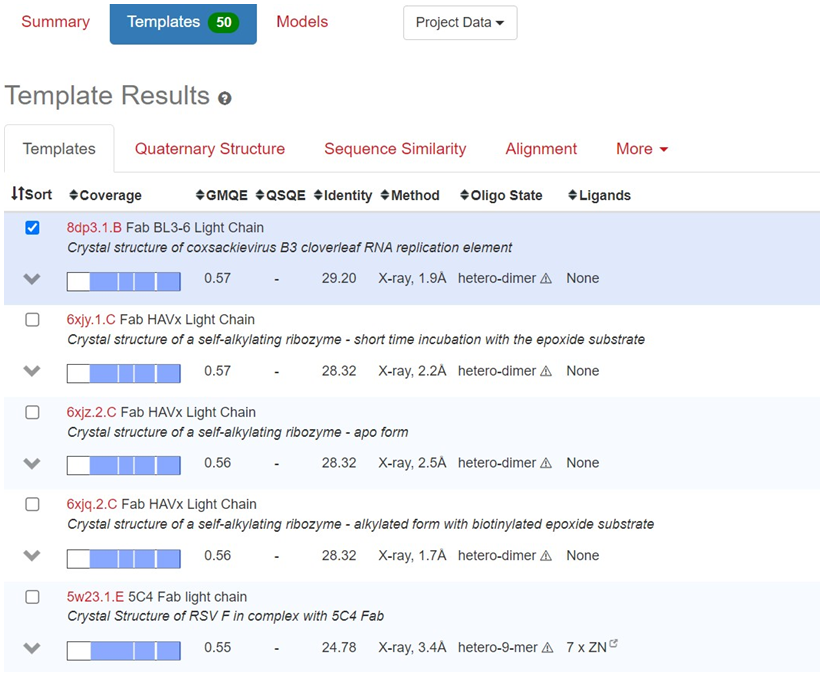

Comparisons with Fab Light Chain(crystal): Swiss Model (Figure 2)

Figure 2: Comparisons with Fab Light chain (crystal): Swiss Model (https://swissmodel.expasy.org/).

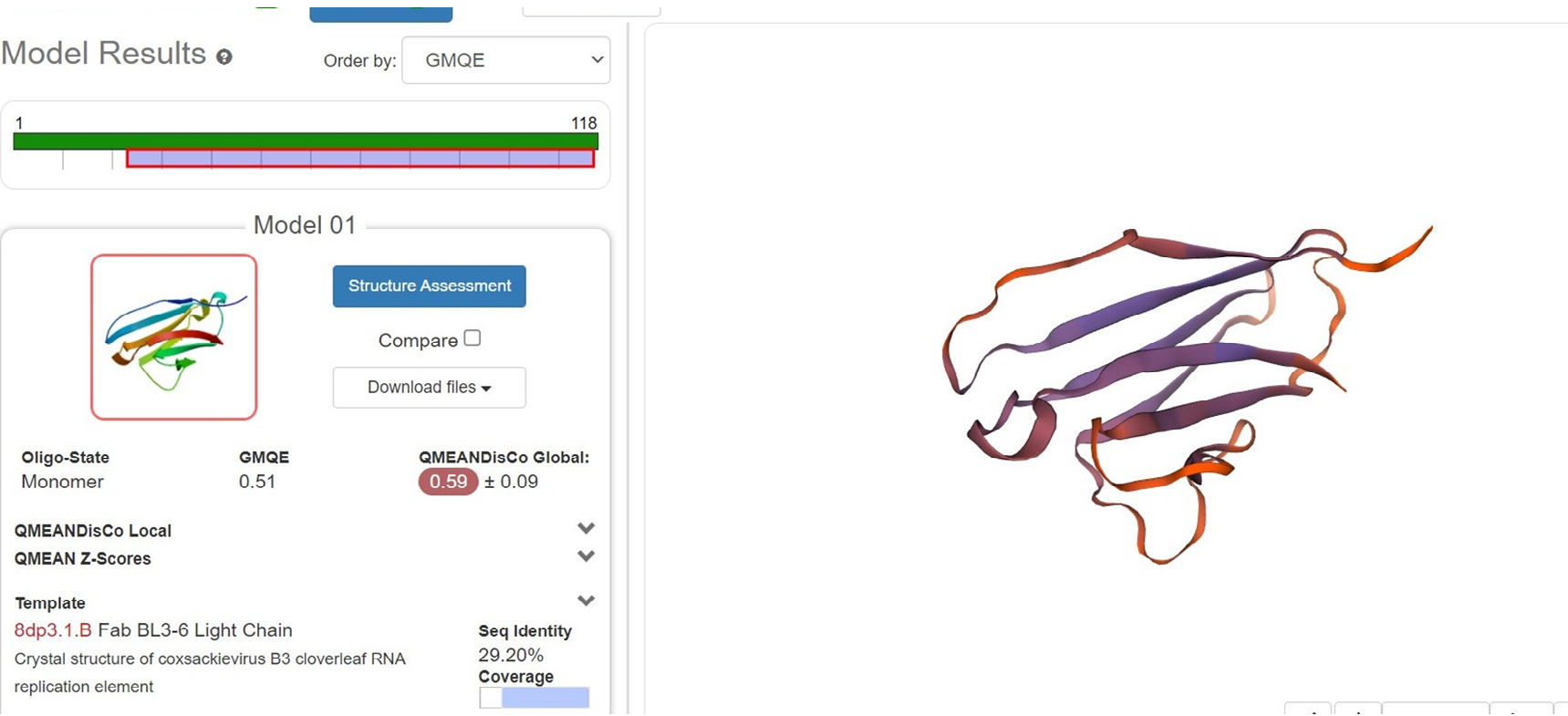

First Modelization of Anti-HRP Protein (Figure 3)

Figure 3: First Modelization of anti-HRP protein.

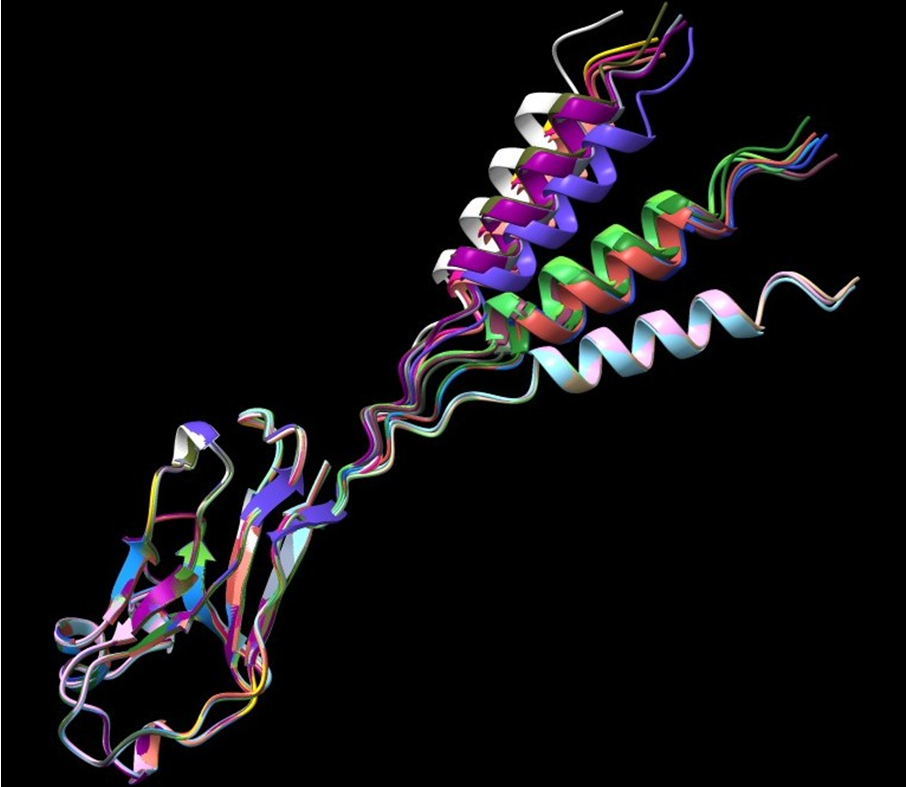

AlphaFold

5 models predicted and for each 4 seeds are tested → 20 predictions Superimposition done from residue 26 The RMSD is on average from 0.6 to 0.3 A.

The only variability is at the level of α-helix (Figure 4).

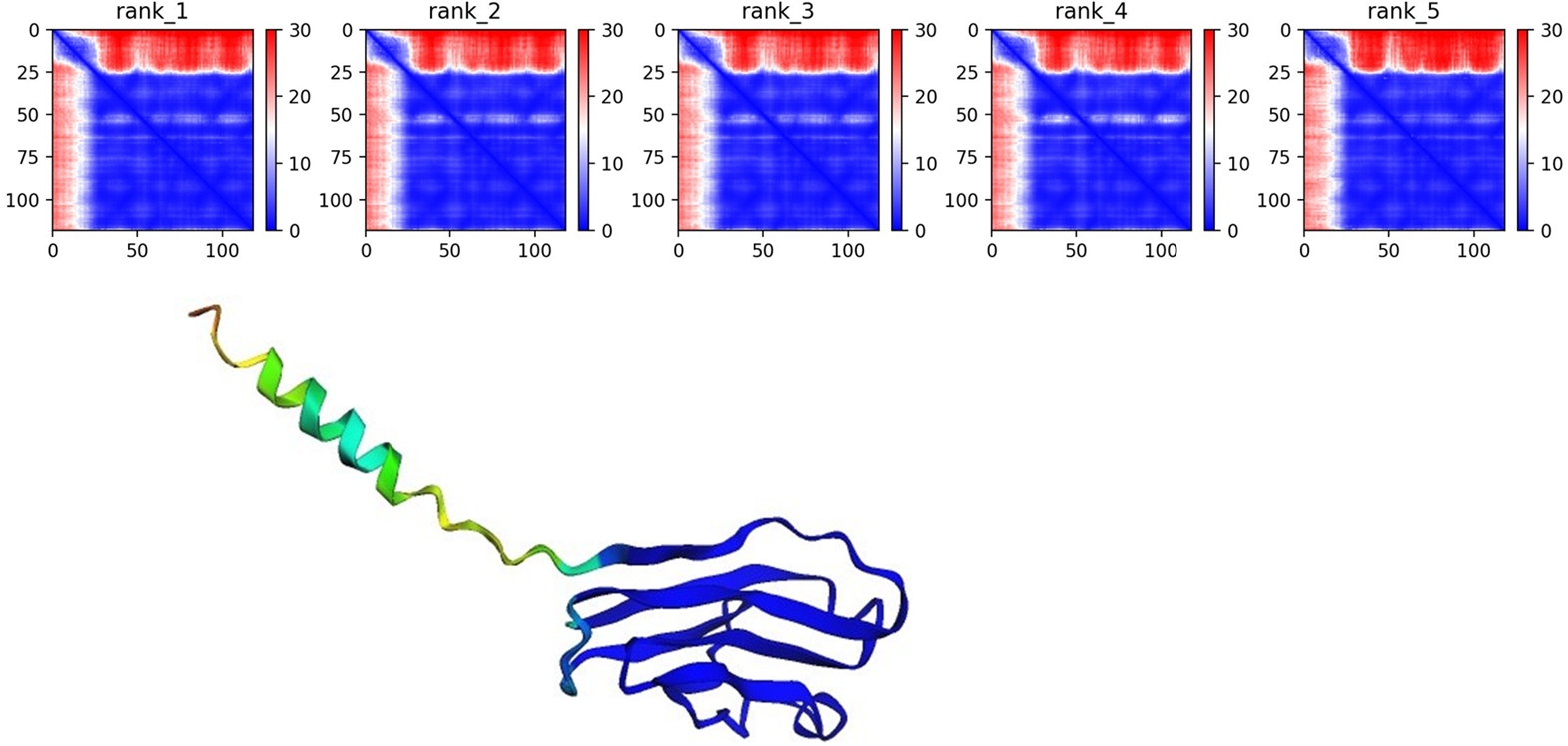

Parameters of the AlphaFold Prediction

Predicted alignment error plot (PAE) The absolute error in A of the relative position between residues Local confidence of the model:

Dark blue : large confidence Red : low confidence 0-25: red → low confidence (up to 30 A of error). 25-118: blue with some regions in white → more confident (Figure 5).

Figure 5: Parameters of the AlphaFold prediction.

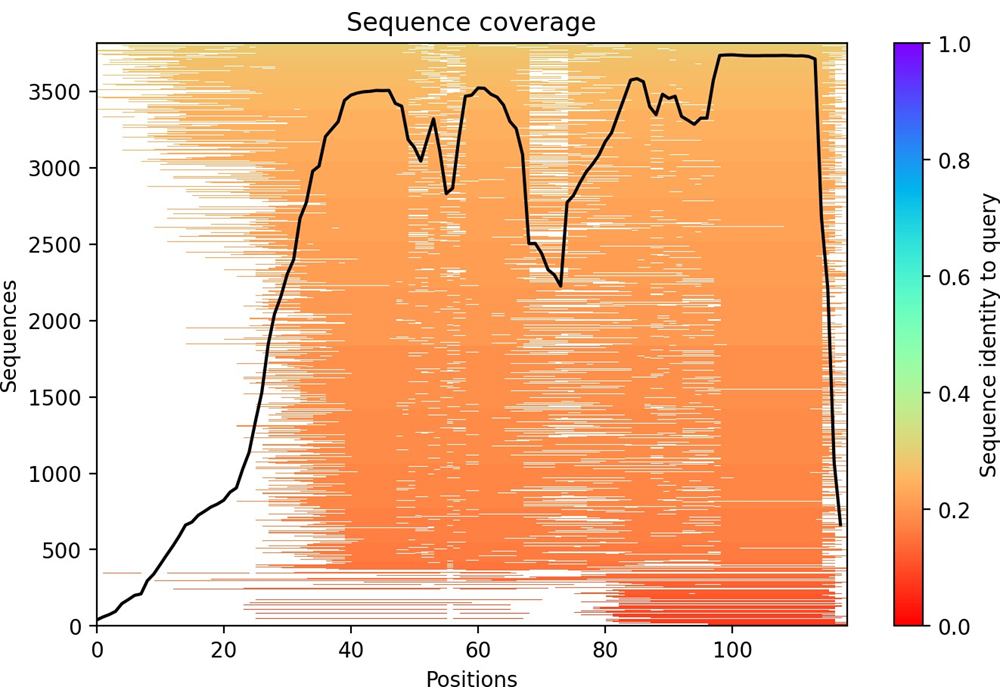

Multiple-Sequence Alignment (MSA)

The sequences used in the alignment ordered from largest identity (top) to the lowest identity (bottom). White parts are not covered. The black lines indicate the coverage of the sequence.

0-24 residues: not well covered by the sequence alignment → α-helix predicted. 24- 118 residues: identity found in the range of 0.2-0.3, the pic is for the last 30 residues (Figure 6).

Figure 6: Multiple-Sequence Alignment (MSA).

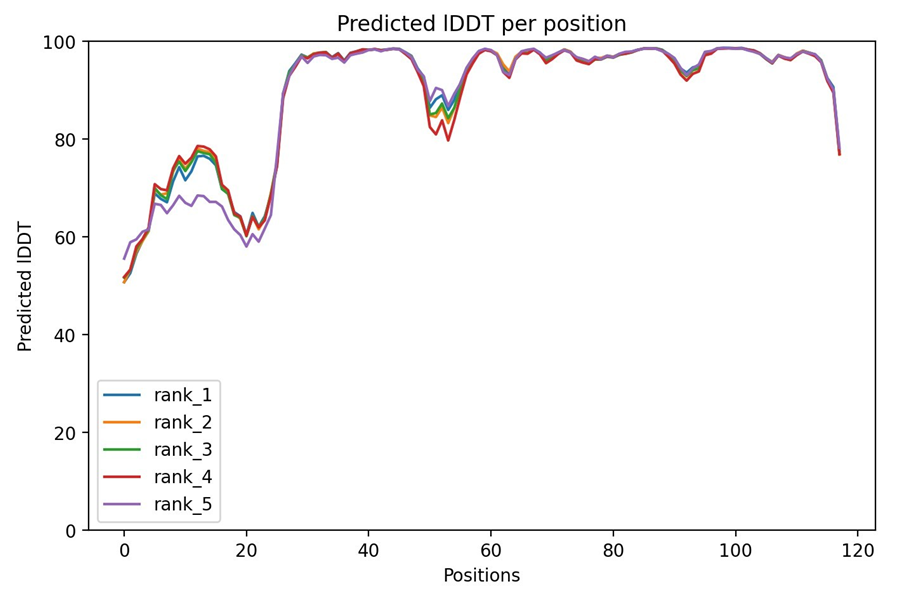

lDDT: Local Distance Difference Test

It evaluates local distance differences of all atoms in a model including validation of stereo chemical plausibility.

plDDT > 90 modelled to high accuracy
plDDT between 70 to 90 modelled well
plDDT between 50 and 70 low confidence 0-20 residues: have a plDDT between 80 and 50 → this region is majoritary modelled with low confidence, with a pick at 80 which indicated that a portion is well modeled.

20-118 residues: have an lDDT higher than 90 however some regions (around position 50 and after 110) have a score between 90 and 70 → this regions is model with high accuracy with two regions well modeled (Figure 7).

Figure 7: lDDT: Local Distance Difference Test.

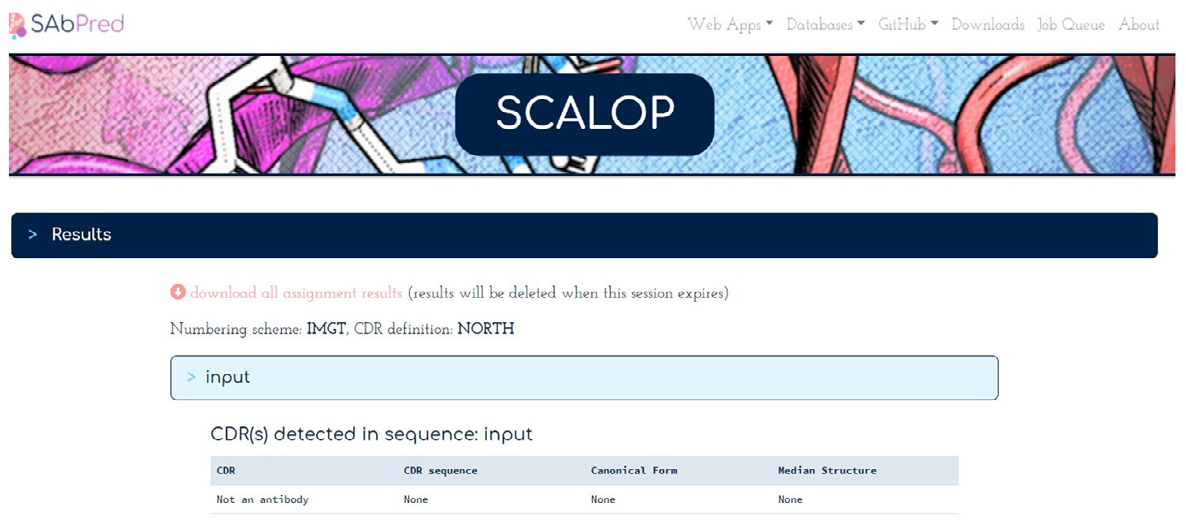

SCALOP

SCALOP is a sequence-based canonical form predictor for five of the six complementarity- determining regions (H1, H2, L1, L2 and L3) on an antibody (Figure 8).

Figure 8: SCALOP: Sequence-based antibody Canonical Loop structure annotation. (https://opig.stats.ox.ac.uk/webapps/sabdab-sabpred/sabpred/scalop).

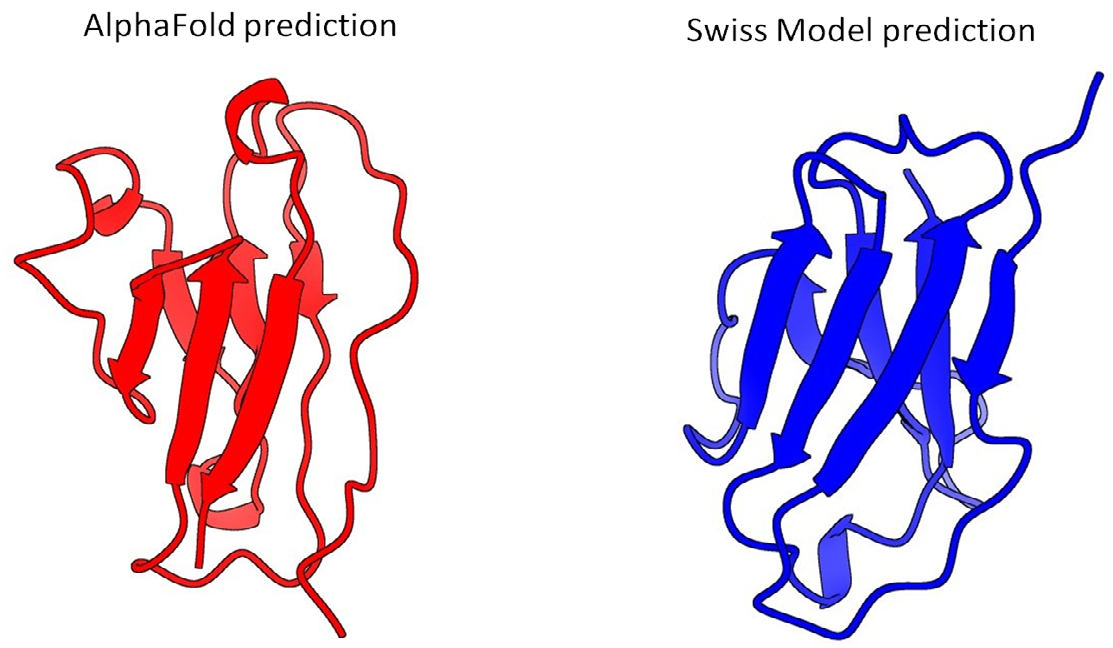

Primitive Invertebrate Antibody-Final Predictions (Figure 9)

Figure 9: Primitive invertebrate antibody-final predictions.

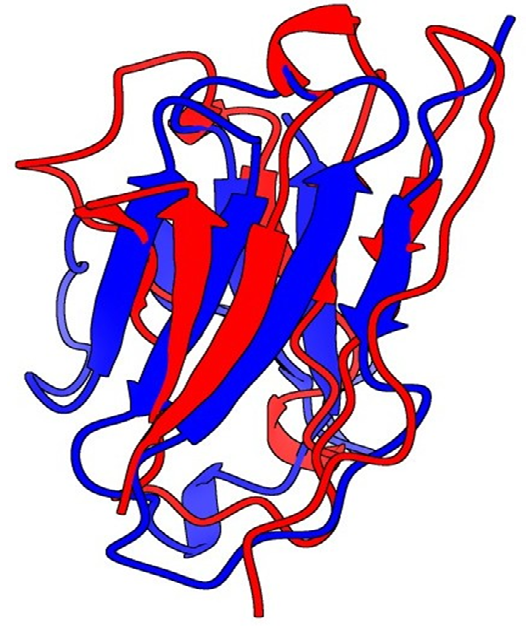

Superpose of the Predictions Red: AlphaFold prediction Blue: Swiss Model prediction (Figure 10).

Figure 10: Superpose of the predictions.

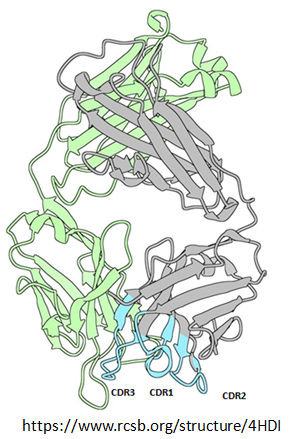

4HDI

Green: light chain Grey: heavy chain Light blue: CDRs

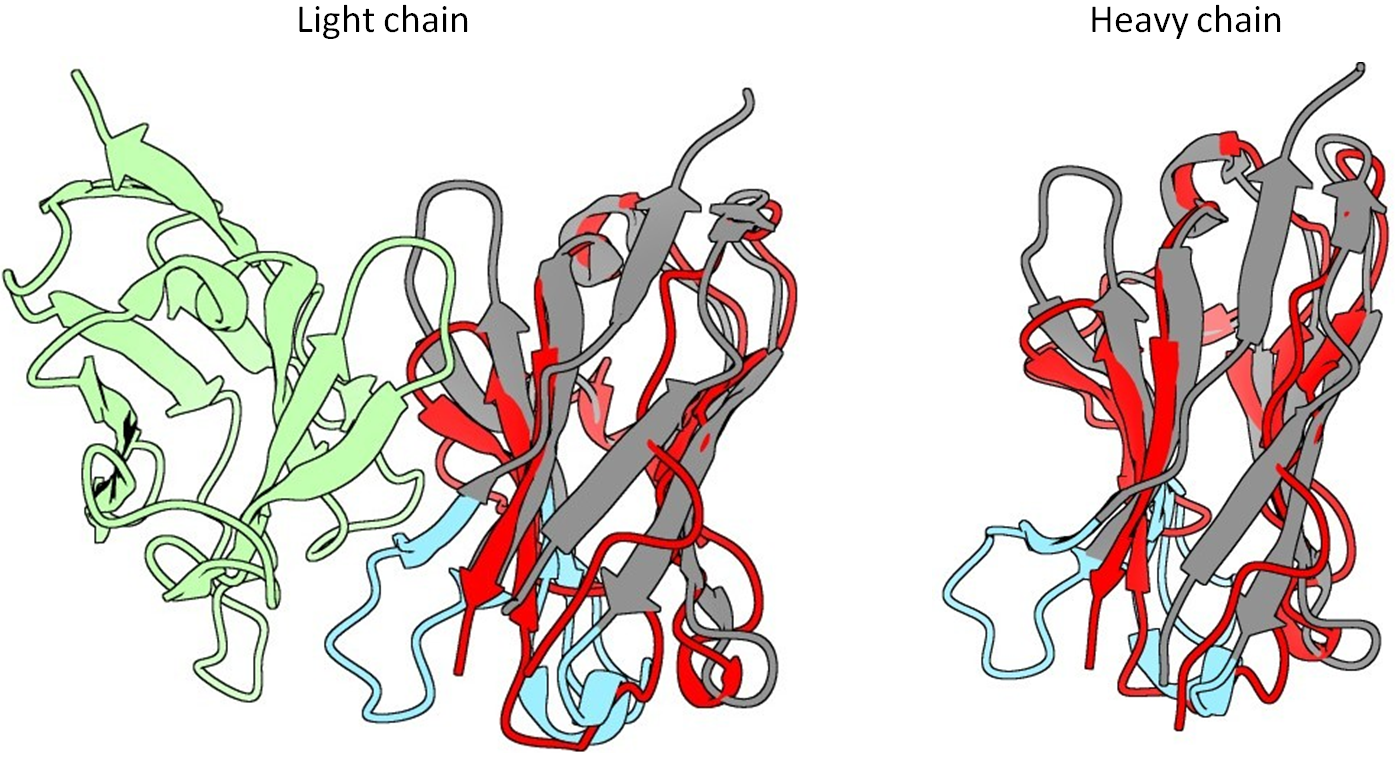

Superpose of AlphaFold prediction and X-ray structure of a Fab (4HDI) The SSM superpose in Coot aligns the prediction with the heavy chain (Figure 12).

CDR1: 26-35 CDR2: 50-58 CDR3: 99-109 (Figure 11)

Figure 12: Superpose of AlphaFold prediction and X-ray structure of a Fab (4HDI).

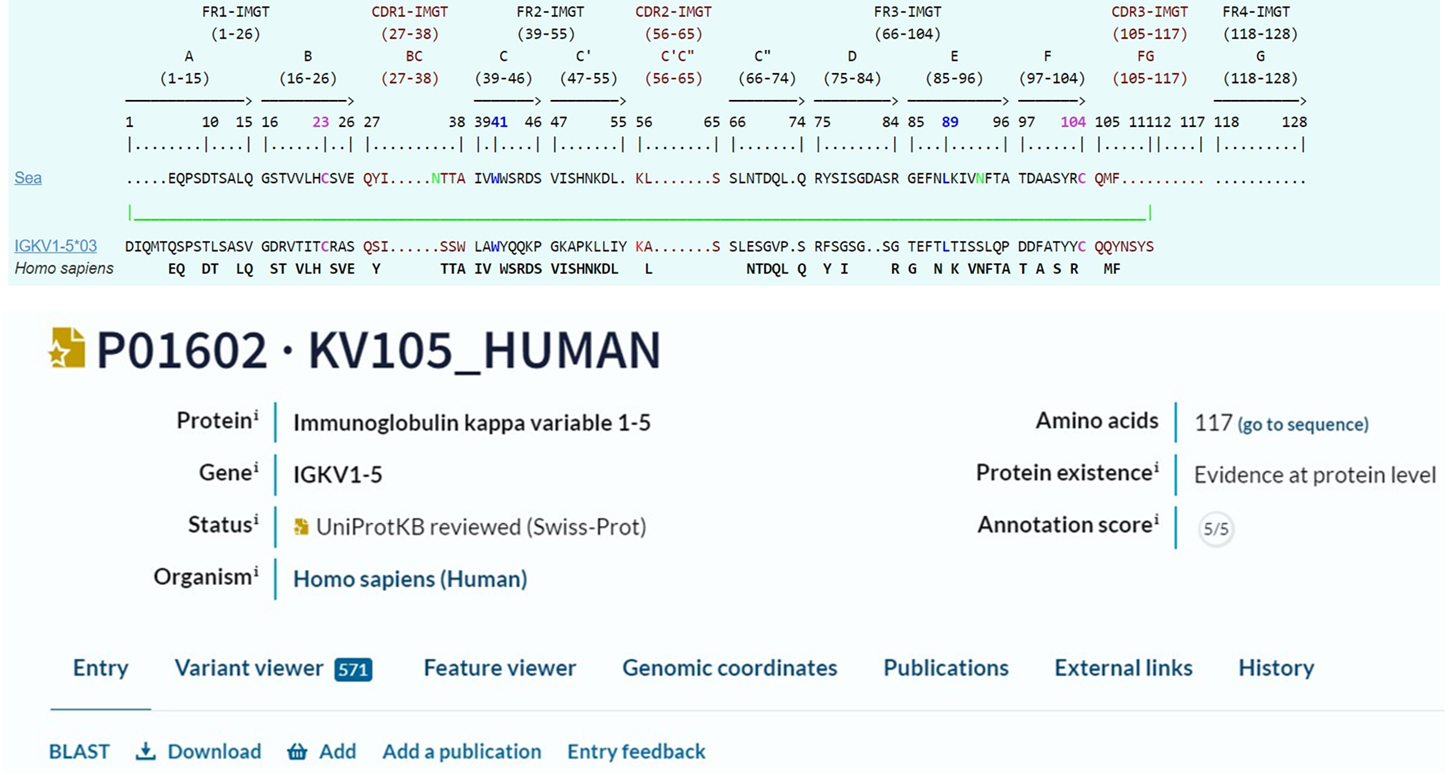

IMGT/DomainGapAlign (Figure 13)

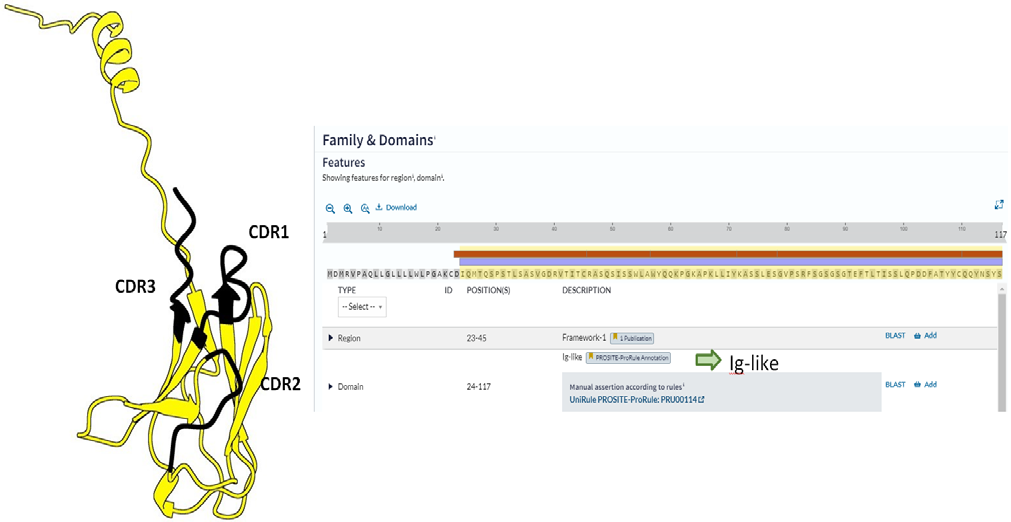

AlphaFold Prediction of IGKV1-5*03 Homo Sapiens

CDR1: 46-55 residues CDR2: 72-78 residues CDR3: 111-117 residues (Figure 14).

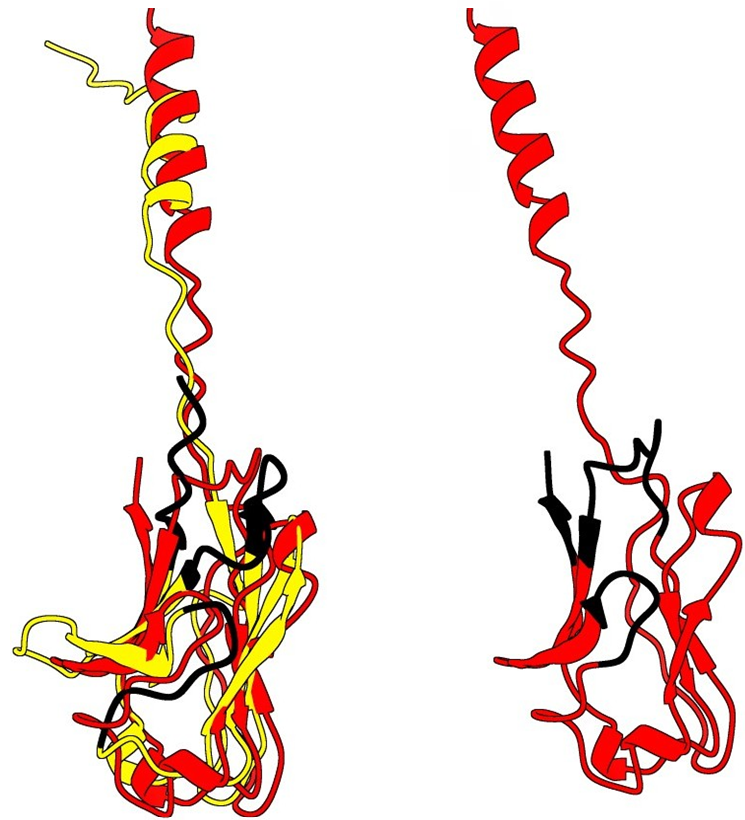

AlphaFold Prediction Superposed

Yellow: IGKV1-5*03 Homo sapiens. Red: Invertebrate Primitive Antibody from Starfish (Figure 15). Possible CDRs based on the superposition: CDR1: 48-58 CDR2: 69-73 CDR3: 115-118

Discussion

It seems clearly that our primitive antibody shares similarities with the Fab (4HDI) from the Heavy chain of Mus musculus in terms of amino-acids when we have a look to CDR1:26-35 residues. CDR2: 50-58 residues CDR3: 99-109 residues and in terms of morphology in 3D (Modelization), when compared always to the Fab ‘4HDI: 3E5 IGG3 Fab. No similarities were found with THE LIGHT CHAIN, except in the model 01, where it is shown slight similarities (Sequence

identities of 29, 20%) with Fab BL3-6 Light Chain: what is a weak percentage. A comparison of our antibody with IGKV1-5 03 was also productive in terms of alignments for CDR1: 46-55 residues, CDR2:72-78 residues, CDR3: 111-117 residues. These last predictions were done with AlphaFold ones. This work presents the interest to name CDR3 in our research. It was not the case in our precedent work [1].

Conclusion

Our primitive antibody would present CDR1, CDR2, CDR3 (determining regions) as seen precedent and, more specially, similarities with Fab (4HDI) (by the superpose in Coot aligns the prediction with the Heavy Chain) less with IGKV1-5 03 Homo sapiens.

The main work is now to persuade that it consists in true observations+ and confirm the existence of the IPA (Invertebrate Primitive Antibody).

+We thanks greatly the Doctor JA Marquez: EMBL (Grenoble) and his laboratory for their skillful and technical competences in this work in which, more and more people, dare to speak of Invertebrate Primitive Antibody.

References

Leclerc M (2024) Determination of the CDR (CDR1, CDR2) Complementary-Determining Region Invertebrate Primitive Antibody from Sea Star. Mathews J Immunol Allergy 8(1): 25.
Ehrenmann F, Kaas Q, Lefranc MP (2010) IMGT/3Dstructure-DB and IMGT/DomainGapAlign: a database and a tool for immunoglobulins or antibodies, T cell receptors, MHC, IgSF and MhcSF. Nucleic Acid Res 38: D301-D307.
Ehrenmann F, Lefranc MP (2011) IMGT/3Dstructure- DB: Querying the IMGT Database for 3D Structures in Immunology and Immunoinformatics (IG or Antibodies, TR, MH, RPI, and FPIA). Cold Spring Harbor Protoc 6: 737.
Vincent N, Osteras M, Otten P, Leclerc M (2014) A new gene in A. rubens: A sea star Ig kappa gene. Meta gene 2: 320-322.
