Rib-Based Anchors are Associated with Proximal Translational Deformity in Early Onset Spinal Deformity Patients undergoing Growth-Friendly Surgical Treatment

Introduction

Early Onset Spinal Deformity (EOSD) is characterized by abnormal curvature of the spine greater than 10° before the age of 10 years [1]. Due to the risk of progressive spinal deformity with growth, EOSD may be associated with coronal or sagittal imbalance, and/or compromised pulmonary function [2]. The management of EOSD is challenging, with treatment options consisting of casting, bracing, or “growth-friendly” fusionless constructs, such as spine-based traditional growing rods (TGR), or rib-based constructs, which include the Vertical Expandable Prosthetic Titanium Rib (VEPTR, Synthes, Paoli, PA) [3].

Complications associated with the management of EOSD with growth-friendly constructs are well documented in the literature. These include wound dehiscence and surgical site infection following multiple lengthening operations [4, 5], and proximal rib fractures associated with rib-based anchors [5]. Furthermore, increased thoracic kyphosis often seen in EOSD patients can be worsened by posterior-based distraction systems [6, 7, 8, 9]. Anedoctal clinical findings noted during the care of EOSD patients with proximal rib-based anchors led the authors to believe that long term use of these implants appears to potentiate the apparent proximal thoracic kyphosis in surgically treated patients. No studies to date have evaluated the the effect of a rib-based anchor on the relationship between the rib and adjacent anterior spine.

The primary purpose of this study was to determine the effect of rib-based anchors on the distance between the proximal anchor rib/ribs and the anterior vertebral body of the spine at the same level. We hypothesized that over time rib-based anchors would be associated with an increase in distance between the rib anchor point and the associated anterior vertebral body. Such an increase may act to magnify the existing thoracic kyphosis. The combination of kyphosis and anterior spinal translation may lead to difficulties with exposure of posterior elements of the proximal thoracic spine at the time of future surgical procedures.

Methods

Following Institutional Review Board approval, a retrospective review of all patients aged 0-18 with a diagnosis of EOSD from a single tertiary level institution treated with growth-friendly posterior surgery was performed. Inclusion criteria included use of proximal rib anchors, a minimum of 2-year follow-up, and representative radiographs pre- operatively, post-operatively, and at 1-year and 2-year follow-up. Exclusion criteria consisted of patients who underwent a fusion procedure as the index procedure or within the 2-year follow-up from the initial growth friendly implantation, as well as those with incomplete radiographic records. Demographic data including age, sex, and diagnosis was retrieved from the electronic medical record.

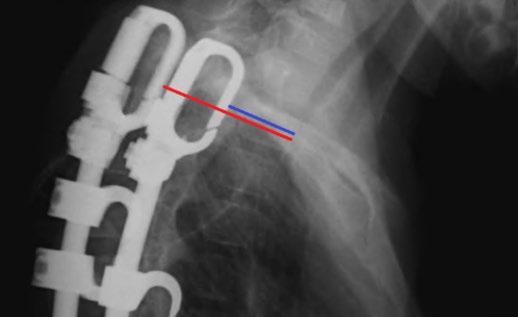

Radiographic assessment was conducted using IMPAX (AGFA; Mortsel, Belgium). Thoracic kyphosis, measured from the superior end plates of T1 and T12, was assessed on upright lateral images obtained pre-operatively, immediately post-operatively, and at 1 and 2-year follow-up. The distance from the anterior aspect of the rib hook to the corresponding anterior vertebral body cortex was measured and termed the “Translational Distance” (Figure 1). This distance was assessed on upright lateral images obtained immediately post-operatively and at 1- and 2-year follow-up. All measurements were performed by members of the research group who were not directly involved in the surgical or clinical care of the patients included in the study. Computerized tomography (CT) of the proximal implants were obtained on a very limited number of patients, and for that reason were not part of the analysis. Clinical variables for this study included age, gender and EOSD etiology. Data analysis consisted of a repeated measures ANOVA with pairwise comparison for mean kyphosis and translational distance. Statistics were generated using IBM SPSS Statistics-v24.

Click to enlarge

Results

Twenty-seven patients qualified for inclusion in the study (13 female, 14 male) with a mean average age at proximal rib-based construct implantation of 5 years (range, 1y-9y). Etiologies of EOSD included congenital 11% (n=3), neuromuscular 62% (n=17), syndromic 11% (n=3), and idiopathic 15% (n=4). The mean and standard deviation for sagittal angular kyphosis across time are presented in Table

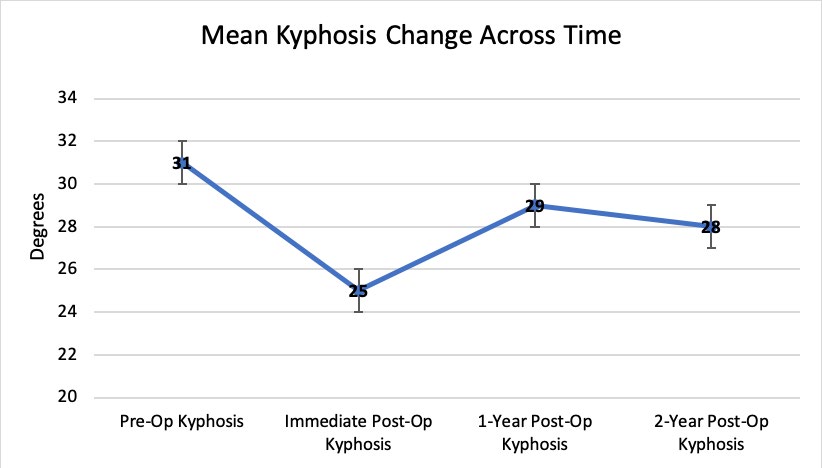

1 and Figure 2. Pairwise comparisons for mean kyphosis at any time point did not show significance (p>0.05).

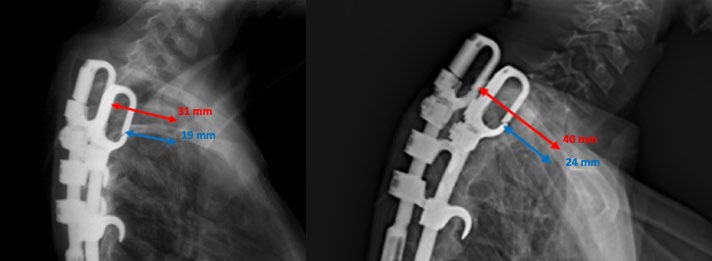

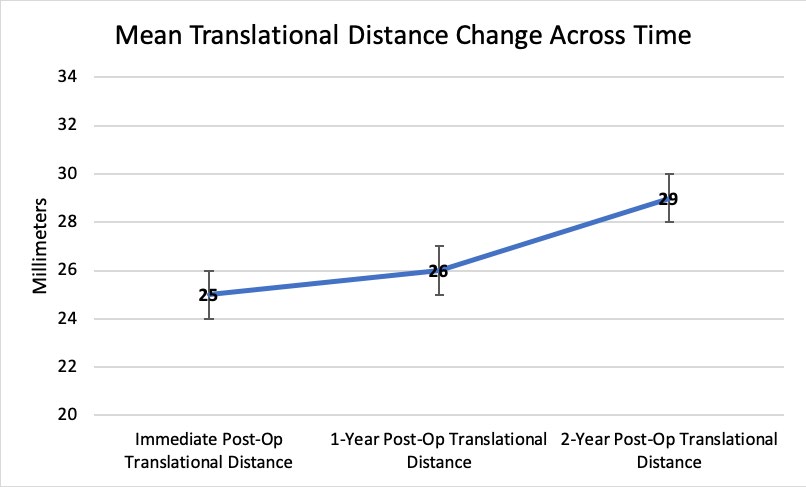

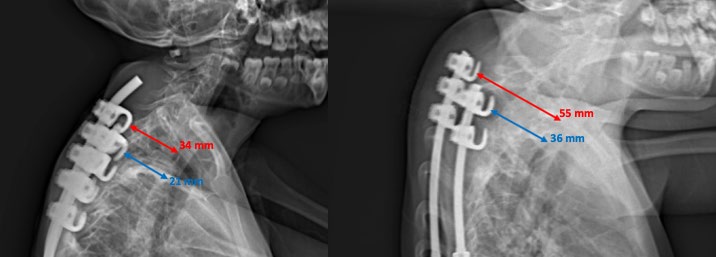

Twenty-one (78%) patients demonstrated an increase in translational distance from the rib anchors to the anterior vertebral body over the follow-up period. Change in mean translational distance and standard deviation over time are presented in Table 1 and Figure 3. Representative radiographs highlighting this increase in mean translational distance are shown in Figures 4 and 5. Pairwise comparisons of translational distance showed statistically significant increases between immediate post-op and 2-year follow-up radiographs (p=0.001), as well as between 1-year and 2-year follow-up (p=0.005) (Table 1).

Click to enlarge

Click to enlarge

Click to enlarge

Click to enlarge

Discussion

Distraction-based, posterior non-fusion techniques are utilized frequently in the surgical management of EOSD.

Each consist of proximal and distal anchors attached to the spine or ribs which connect with an expandable rod. Following implantation, periodic lengthening procedures are performed to control deformity progression and promote continued spinal growth. During the time period in which this patient cohort underwent surgical management for EOSD, the most frequently used rib-based device in growth- friendly spine constructs was the Vertical Expandable Prosthetic Titanium Rib (VEPTR). Other rib-based systems generally include the use of standard transverse process or laminar hooks. Although VEPTR use was limited originally to patients with EOSD associated with fused ribs, recent reports have validated the efficacy of VEPTR in a diverse group of patients with and without chest wall abnormalities [7, 10]. Studies have demonstrated a range of effects of the VEPTR device on pulmonary function in EOSD patients, from improvement in vital capacity to decreased deterioration of overall pulmonary status [8].

Rib-based cradles that are part of the VEPTR system were utilized commonly for the surgical management of EOSD in the authors’ practices from 2006 until approximately 2015 when other devices became available. This was particularly true for those patients who were felt to benefit from proximal rib fixation at part of a fusionless, growth-friendly construct. The authors tended to use rib fixation proximally rather than spine anchors in patients younger than 7 years of age who either failed nonoperative management of EOSD or presented with a deformity or physical limitations that precluded attempted casting or bracing.

As the authors followed this cohort of EOSD patients with proximal rib fixation, it became clinically and radiographically apparent that many patients developed increased proximal thoracic deformity over time. At the termination of the growth-friendly treatment, the majority of these patients underwent definitive instrumented spinal fusion, colloquially referred to as “graduation” in the literature [11, 12]. While performing the exposure of the posterior thoracic spine in many of our patients at the time of final fusion, the actual proximal thoracic deformity appeared to be clinically greater than that expected and planned for based on the proximal kyphosis measured on preoperative imaging. The combination of underlying proximal kyphosis and associated rib prominence appeared to generate an anatomic deformity that often caused significant difficulties with both surgical exposure of the proximal spine and final implant placement.

In this patient cohort, implantation of a growth-friendly posterior device with proximal rib fixation led to a reduction in radiographic thoracic kyphosis immediately following the index procedure. This finding of initial reduction in kyphosis confirms the results of Gantner, et al. [13], who reported an

11° improvement in kyphosis following VEPTR implantation. Despite an immediate reduction in angular kyphosis at the time of the index procedure, our results demonstrate a modest increase in thoracic kyphosis over time, which is comparable to other reports of EOSD patients managed with VEPTR [7, 8].

In contrast to these previously well-described findings regarding thoracic kyphosis, the unique aspect of this study was the investigation into changes in the distance from the proximal rib fixation point and the anterior aspect of the adjacent vertebral body (Translational Distance). Review of the lateral radiographic images demonstrated a statistically significant increase in the measured distance both at 2-year post op versus immediately post index procedure, as well as between 1- and 2-year post-implantation. To our knowledge, no previous investigators have assessed the relationship between the rib anchors and the spine itself in patients with long-term proximal rib fixation. Specifically how and why this increased rib-to-vertbral body distance occurs is unclear. We propose that these changes are most likely the result of mobility of the rib at the costovertebral junction in combination with gradual ploughing of the device and subsequent remodeling of the ribs during the period of distraction.

Regardless of the etiology, rib-based proximal anchors appear to alter the relationship between the point of rib fixation and the adjacent spine. Use of proximal rib- based anchors are associated with significantly increased translational distance between the point of rib fixation and the anterior cortex of the associated vertebral body when comparing immediate post-operative images to those at 2-year follow-up. From a clinical and anatomic standpoint, this secondary deformity seems to potentiate the effect of the proximal thoracic kyphosis. This combination of deformities appears to become most problematic at the time of implant revision surgery or during conversion of an existing posterior growing construct to a final fusion.

There are several limitations to this study, including those inherent to retrospective reviews. A relatively small cohort of patients was available for analysis, which limited the statistical power of this study. Because this was a single institution study, standardization of radiographic technique and patient positioning was a goal in all cases. However, due to the variability in patients’ mobility and physical characteristics, true standardization may have been compromised.

In addition, the authors acknowledge the potential role that progressive spinal rotation may have played in altering the relationship between the rib cradle and the adjacent anterior vertebral body as viewed with standard radiographs. Computerized Tomography evaluations of the proximal ribs and the associated rib cradles may have provided more detailed information. However, these were obtained infrequently in this cohort so as to limit overall radiation exposure, and never in a sequential fashion.

These results demonstrate that the use of rib-based anchors may lead to an increase in distance, between the rib utilized for proximal fixation and the associated vertebral body, generating radiographic evidence of increasing anterior translation of the spine at that level. This radiographic finding, in conjunction with inherent or increasing proximal thoracic kyphosis, may lead to unforeseen anatomic alterations, which may be a source of unexpected surgical difficulties at the time of revision or final fusion procedures. Awareness and appreciation of this potential deformity pre-operatively may prove valuable to those involved in the later surgical care of an already complicated patient population.

Acknowledgement

No funding or support was sought or gained for the purposes of design, implementation, or preparation of this work. There was no pharmaceutical and industry support that requires acknowledgment.

There was no support from any of the following organizations: National Institutes of Health (NIH); Wellcome Trust; Howard Hughes Medical Institute (HHMI); and other(s).
