Surgical Treatment of Adult Acquired Pesplanovalgus Deformity Report of 15 Patients

Introduction

Flatfoot disease usually involves the symptoms of foot pain, and restricted mobility which are caused by the lesions of foot joints and soft tissue in patients with flatfoot. Adult acquired flatfoot disease refers to a-secondary flat foot disease in adults with symptoms. The incidence of flatfoot in UK is 3%; and it is common in female patients over 40 years old [1]. The posterior tibial tendon dysfunction remains the most common aetiology. With the development of foot deformity, the failure of the spring and Deltoid ligaments lead to changes in joint position (mainly the talonavicular joint), resulting in joint degeneration of the mid-foot and hind foot [2]. Brearton divided the stage II of Myerson classification of tibialis posterior dysfunction, into A stage (early stage) and B stage (late stage). In Stage IIa, there is heel valgus, with arch of foot slightly or moderately flat; Over 35% of the talonavicular joints are uncovered. Stage II-b shows the arch of foot collapsed obviously, with mid-talus-navicular joint abduction, and over 35% talus-navicular joint uncovered. As the disease progress, this uncovering of talus increases [3, 4].

Lee points out those stage III patients are with rigid flat foot, fixed hind foot deformity, stiffness, accompanied by a certain degree of osteoarthritis [5]. Triple arthrodesis is considered to be effective in stabilizing joints and relieving pain. However, Tang has found that triple arthrodesis has some defects in remodelling the arch of foot and improving the force line of hind foot [6]. Triple arthrodesis and medial wedge calcaneal osteotomy is reported to improve the shape of the arch of the foot [7]. Also, triple arthrodesis using tricortical iliac bone graft, seem to have been associated with a good outcome [8]. No single procedure or group of procedures can be applied to all patients with adult flat foot because of the variety of underlying aetiology and grades of deformity.

As the posture of the foot progresses into hind foot valgus and forefoot abduction through attenuation of the medial structures of the foot, the medial column begins to change shape. The first ray elevates and the joints of the medial column may begin to collapse. Medial column fusion has also been described to correct adult flat foot [9]. The current paper evaluates the outcome of a series of patients with rigid flat foot who underwent medial column fusion mixed with other procedures.

Methods

This retrospective study included 15 adult patients with valgus rigid flatfoot deformity managed in Scarborough hospital between January 2015 and December 2020. All these patients underwent bony and joint procedures. The inclusion criteria included: adult-elderly patients with valgus foot deformity; degenerative hind and mid foot disease (caused by tibialis posterior insufficiency; Stage III is included). Exclusion criteria included diabetic neuropathy/ Chariot foot, peripheral arterial disease, adolescent flat feet and post-traumatic flat foot.

The average age at the time of surgery was 59 (range 25- 72) years. The left foot was involved in cases 4 and the right in 11 cases. Average follow-up duration was 19.5 (range, 15– 27) months after surgery. Four of these patients had prior surgery on the foot and in two cases, the ankles were fused.

Preoperative detailed medical history and physical examination including the clinical assessment of the whole lower limb to identify the site joint deformity which has led to pesplanovalgus deformity. The range of movement of the hind and mid-foot joints, site of pain and any neurovascular deficit is checked. The site of valgus deformity is divided to deformities at or above the ankle joint (two cases, one at the level of the knee and the other one at the site of a fused ankle) or deformities below the ankle joint. Deformities at the subtalar, talonavicular, mid-tarsal, or the tarsometatarsal (TMT) joints. The most suitable procedure is contemplated to correct the deformity at the site it is arising from.

Routine X-ray included weight bearing anteroposterior and lateral films of the affected foot to analyse the radiological changes and the degree of navicular uncovering, subluxation/ dislocation, and assessing the severity of the osteoarthritis. Preoperative radiological examination included Meary angle, Kite angle and Pitch angle, medial cuneiform metatarsal angle and standing lower limb alignment angles.

MRI examination/Ultrasound scan was performed when needed to assess the condition of posterior tibial tendon. CT or three-dimensional CT reconstruction was also used to determine the joint arthritis and fusion of the arthrodesis.

Results

Final review was conducted on all the 15 patients face to face, five patients were contacted by phone (covid restrictions) and the completion of Manchester-Oxford score. Final radiological assessment was performed six months after surgery, all the patients were followed up. All the patients had relief of pain in the medial and lateral ankle joints and were able to walk full weight bearing, enjoy recreational activities. Younger patients were able to go back to work. Mean period of followup was 24.2 months (9- 48 months). At the time of final follow-up, twelve patients were pain-free. The VAS pain score was markedly reduced from a mean of 7/10, to 0/10. In three cases complained of mild pain which continued for an average period of 6 months (3-8 months) after surgery, the mean of 3/10. All patients developed stiffness in the midfoot, however, was satisfied for being able to move the ankle on toes. All but three patients witnessed a significant improvement of the shape and gait. No patients had difficulty walking on even ground. The leg swelling continued for an average 3 (2-8) months. The mean preoperative Manchester oxford Q index was 68.5, the mean of the score became 45 in 6 months (this is considered to be a significant improvement), with p Value <0.001. Mean

improvement of the Manchester Oxford score improvement to 50-55 scores is considered a fair score of improvement. Complications and postoperative mean scores of more than 55, is considered to be of a poor outcome.

The results are considered good, if the pain relief and the deformity correction is significant and the Manchester Oxford score has improved (mean 45) and there are radiological signs of angle improvement and union with minimal complication not affecting the outcome. Fair results are considered for patients who have developed mild recurrence of the pesplanovalgus deformity not necessitating revision surgery. Two patients had mild recurrence of valgus deformity proximal to cuneiform metatarsal fusion. Mean Manchester Oxford foot score was 45-55. Poor results is considered for patients who continue to have pain and the deformity is not corrected and further surgery deem to be necessary. The Mean Manchester Oxford foot score was above 55.

One of the patients had the valgus deformity at the talonavicular joint, initial surgery was cuneiform navicular fusion which failed to address the deformity. The patient was offered to have the fusion extended to the talonavicular joint; however, the patient refused further surgery. Overall patient satisfaction was rated as good in 12 patients with, fair for 2 patients, and poor in one patient.

The mean preoperative Meary angle was 25.8 ± 5.4º, this significantly got improved on 6 months X-ray to become 6.9 ± 7.7º (p value <0.001). The mean preoperative AP talo- metatarsal angle was 10º, this also significantly got improved Age/ sex diagnosis Procedure

69F R.Pes planus (talar plantar subluxation)

59F, Valgus knee in association with ankle replacement, and pesplanovalgus

25F Valgus deformity with tarsometatarsal and hind foot arthritis

30M Pesplano valgus, tarsal coalition Triple arthrodesis Fair, X-ray and MO score improvement 24-Dec

59F Degenerative flat foot (R) Medial column shortening (talus MT) and subtalar fusion, CCJ fusion Significant 19-Dec on 6 months X-ray to become -6º (p value <0.001). The mean preoperative calcaneal pitch was 12.5 ± 3.7º, this also got better on 6 months X-ray to become 3.2 ± 4.1º (p value <0.001).

Statistical Analysis

Pre- and postoperative values of MOXFQ-Index, VAS scores, and radiologic measurement included Meary, Kite, Pitch) were recorded. Whitney U-test was used for non-normally distributed continuous variables and t-test was used for normally distributed variables. Statistical significance was accepted for P values <.0.5. The statistical analysis was performed using SPSS Statistics version 16.0 software (SPSS Inc., Chicago, Illinois, USA) (Table 1).

The improvement of Manchester- oxford score before and after surgery Followup duration and complications Medial column shortening (talus MT) and subtalar fusion Significant 19-Dec Supracondylar osteotomy of femur Significant 18-Dec Triple and medial TMT fusion Significant 72/12 Had to remove screws

Discussion

Triple arthrodesis is considered to be the procedure of choice for acquired rigid pesplanovalgus, there is however some debates about this in the literature. The common complications of triple arthrodesis are non-union, varus deformity of hind foot, secondary arthritis of the remaining points of the mid foot and the ankle joint, infection of surgical site, and the failure of internal fixation. Walling, et al performed triple-joint arthrodesis on 25 patients with flatfoot [10]. One patient (4%) had talonavicular joint nonunion after operation; 2 patients (8%) had calcaneal varus deformity due to the inadequate correction of the flatfoot; 1 patient (4%) had no significant improvement in pain after operation, and the arch of foot failed to return to normal height. Mann et al performed 3-joint fusion on 18 cases of adult flatfoot. At the last follow-up, the AOFAS score increased significantly, but 3 patients developed bone non- union [11].

The results of double arthrodesis (talonavicular and subtalar joints) through a medial approach were better. Brilhault, et al. evaluated 14 patients treated using double arthrodesis. The average follow-up time was less than 21.5 months [12]. All deformities were well corrected. None of them had bone non-union. Jackson followed up 8 patients with 100% of the fusion rate and whose average fusion time was 5.25 months. After joint fusion and osteotomy, 26 patients were followed up for the last time [13]. Calcaneal valgus deformity and flat arch deformity were corrected. In the current series, the calcaneocuboid fusion was not performed in most of the patients without any complications, the duration of the operation was shorter and only one incision was used. In a cadaveric study, using medial and lateral column fusion, it was found that the combination of fusion significantly increased lateral and calcaneocuboid pressures with loading compared with isolated medial column fusion [14]. We have not found that non-inclusion of the calcaneocuboid joint does not have a negative impact in the correction of rigid pesplanovalgus.

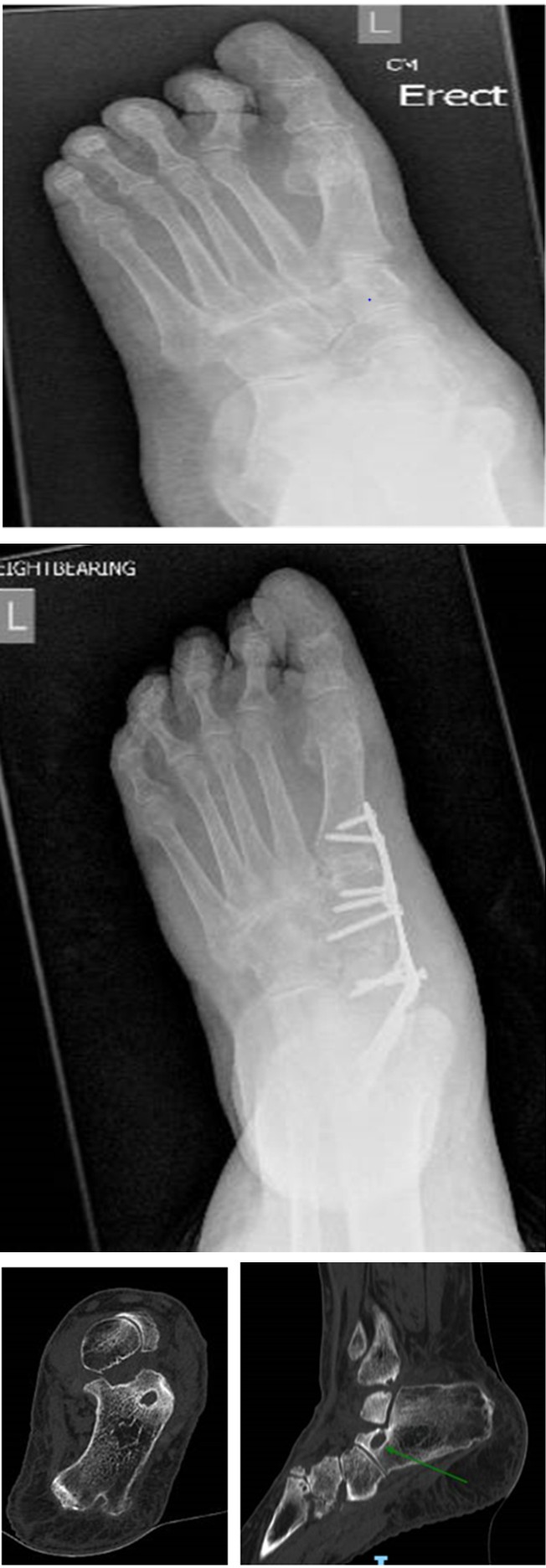

In this series, in one case lateral column lengthening (Evan’s procedure was performed to aid in the correction and equalizations of the medial and lateral column. The longer the medial column, the more joints need to be fused in order to shorten the column. The medial column consists of forefoot, mid and rear foot joints, the talonavicular joint (rear foot), and naviculocuneiform and the first tarsometatarsal joints (forefoot). The loss of medial column support can be viewed as having either a direct or indirect causal effect on pronation during the gait cycle. There were two cases of recurrence of valgus deformity at the talonavicular joints; we recommend involving the talonavicular joint in the medial column fusion.

Identifying the peak of valgus foot deformity, and any mechanical lower limb malalignment which may be leading to pesplanovalgus deformity and planning corrective surgery, would be beneficial. Deformity at the knee or the ankle may lead to valgus foot deformity and has to be addressed accordingly.
