The Use of Bone Hook in the Retrieval of Tibial Bony Cut. Technical Tip

Introduction

Despite the constantly increased number of replaced ankles, Total ankle replacement remains a technically significant demanding procedure. To date, numerous clinical studies have demonstrated a long learning curve associated with this procedure [1]. Intraoperative complications included fractures and malpositioning of components. Instrumentation for ankle arthroplasty was fairly crude, requiring a fair amount of free-hand technique.

The aim of this paper is to share the experience of using bone hook to retrieve distal tibial bone cut, which makes this difficult step, safe and easier.

Technique

Distal tibial cut in total ankle arthroplasty is performed with guidance of the jigs and intraoperative X-rays. The piece of bone cut is in-between the two malleoli, it is attached posterior to the capsule and soft tissue. The manual of different ankle arthroplasty techniques advice using osteotomies, rangers, or other surgical instruments, to remove all resected tibia bone. Notes Caution is given is that is pressure is applied to either the internal surfaces of the medial malleolus or lateral malleolus, this may cause fracturing. This fracturing would be increased if either of these surfaces are notched by aggressive cutting of the tibia. Often the piece of bone is split to take out in pieces, attempts to remove the resected bone in one piece is extremely difficult and impossible [2]. Levering instruments to remove the bone, can fracture the malleoli, and should be avoided. Pituitary ranger and laminar spreader can help.

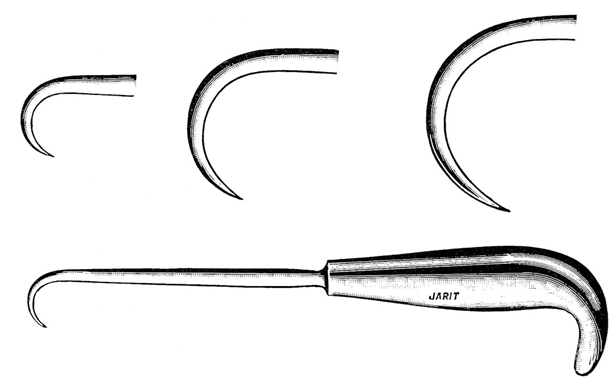

The use of blunt bone hook passed gently behind the posterior part of the resected tibia and slow pulling the bone in forward direction, does not require levering on malleoli and is safe. This can be helped using pair of Kocher’s and jolting movement to disrupt the capsular attachment in the back (Figure 1).

Click to enlarge

Discussion

The most common reasons for intraoperative fractures include extensive and inaccurate use of saw blade in combination with limited visualization, insufficient instrumentation, and improper sizing of Prosthesis Component. The incidence of the intraoperative malleolar fractures is given between 10% and 38% in the current literature. The overall rate of the intraoperative malleolar fractures may decrease with increasing surgeon experience [3].
