Telmisartan Matrix Tablets Using Trigonella foenum-graecum Seed Mucilage: Fabrication and Description

Nagaraj K*
* Corresponding author
ISSN: 2642-6315  10.23880/pdraj-16000131  Received: June 02, 2022  Published: June 27, 2022
 — views
 26 references
 4 figures
 4 tables
PDF
Keywords
Matrix Mucilage Tablets Telmisartan Trigonella foenum-graecum
Abstract

The authors aimed to create Telmisartan (TSN) tablets with a long half-life by combining herbal and synthetic polymers. TSN matrix tablets were made with Trigonella foenum-graecum seed mucilage (TFGSM) and ethyl cellulose. The proposed tablets were tested for official and non-official tests, including TSN discharge, and the flow properties of the blend were evaluated. TSN matrix tablets have a high TSN and meet the pre-and post-formulation requirements. There were no chemical interactions between TSN and the polymers used in the study. When coupled with other polymers, TFGSM was proven to be a useful polymer for managing medicine release.

Introduction

Oral drug delivery systems are safe and effective and gained attraction by all age range patients as it is convenient, easy to manage, and carry [1]. The antihypertensive medication Telmisartan (TSN) was chosen as the medicine of choice for the current trial [2]. It belongs to the class of angiotensin receptor blockers, which work by blocking the angiotensin-II receptor [3]. This decreases blood pressure by preventing vasoconstriction [4]. TSN’s absolute bioavailability is determined by the dosage. The medication has a high affinity for plasma proteins (>99.5%). It has a terminal elimination half-life of about 24h [5]. Prolonged drug delivery systems with zero-order drug release can be achieved by various techniques among them matrix system is simple, economical, and effective [6, 7]. The use of costly polymers can be released by economical and easily available herbal seed mucilage from Trigonella foenum-graecum seed mucilage (TFGSM) (commonly known as Fenugreeks) [8].

Materials and Methods

Material

Telmisartan was gifted from Dr. Reddy’s labs, Hyderabad, Telangana, Ethyl Cellulose, Lactose, Magnesium stearate and silica powder were from Fischer Chemic Ltd, Hyderabad. Distilled water was used whenever it is required.

Methods

Identification of Telmisartan: TSN was identified based on its physical appearance, melting point, and solubility. Method to Estimate Telmisartan: To make 10g/ml solutions, TSN was dissolved in phosphate buffer pH 2.0.λmax was found to be 234nm after further diluting with the same buffer and scanning in a double beam UV-VIS Spectrophotometer from 200 to 400nm [9, 10]. Telmisartan Calibration Curve: The procedure for plotting the TSN calibration curve (Chart 1) [11].

Figure 1: Calibration curve of Telmisartan. Pre Formulation Studies: The flow parameters of the granules were illustrated in Table 3.
Click to enlarge
Figure 1: Calibration curve of Telmisartan. Pre Formulation Studies: The flow parameters of the granules were illustrated in Table 3.

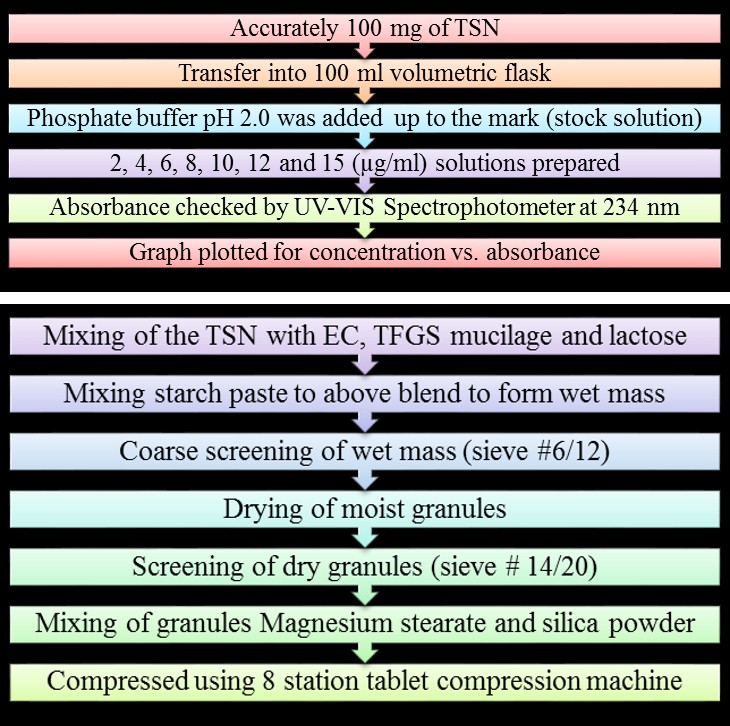

Chart 1: Procedure for obtaining Telmisartan calibration curve. Extraction of Mucilage: The extraction and purification were done according to Ahad et al studies [12, 13]. Fresh Trigonella foenum-graecum seeds were soaked in water overnight, ground, and treated with acetone to precipitate the mucilage, then dried, sieved with # 80, and stored in an airtight container until use.

Drug Excipient Compatibility

Differential Scanning Calorimetry (DSC): To rule out any drug-excipient interactions, DSC studies of TSN and formulation blend were performed using a Perkin Elmer FTIR spectrophotometer. Each sample was heated independently in an aluminium pan at 10°C/min from 50 to 300°C under nitrogen at 50ml/min. FTIR Study: Bruker IR spectrophotometer was used to create FTIR spectra and distinctive peaks of TSN and TSN with an excipient blend. Formulation of Tablets by Wet Granulation Technique: Steps involved in the preparation of Fenugreeks Telmisartan matrix tablets (FTMT) (Chart 2) [14, 15, 16, 17].

Chart 2: Steps involved in matrix tablet preparation. Pre Formulation Studies: To guarantee that the dried wet granules went readily from the hopper to the tablet dyes for compression, flow patterns were applied to them [18, 19]. Post Formulation Studies: On the manufactured tablets, the following parameters were measured. Thickness of Tablets: A sliding calliper was used to control the thickness of five tablets from each batch [20]. Uniformity of Weight: Each batch had 20 tablets weighed disjointedly, with [21] the mean weight resolute. Individual weights’ unorthodoxy was afterwards projected. Tablet Hardness and Friability: A Pfizer tester was used to evaluate the hardness of 5 pills from each batch at random.

Following de-dusting, 10 pre-weighed tablets from each batch were subjected to 100 falls (4 minutes) from a height of 6 inches before being weighed [22].

Assessing Drug Content: The technique outlined in Chart 3 hampered TSN content in the FTMT [23, 24].

Figure 2: Zero-order plots of prepared matrix tablets.
Click to enlarge
Figure 2: Zero-order plots of prepared matrix tablets.

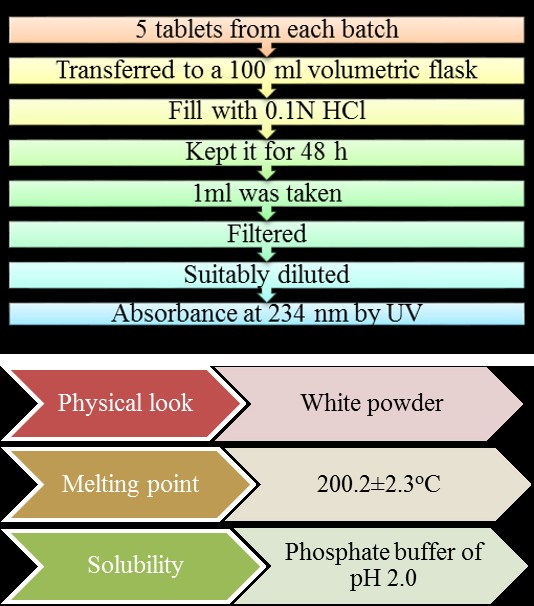

Chart 3: Procedure for determining the drug content in prepared tablets.

In Vitro Dissolution Studies: The dissolution conditions utilized for pharmaceutical dissolution are summarized in Table 1 [25, 26].

ParameterDescription
USP ApparatusII
Rotation (rpm)100
Medium0.1MHCl for the first 2h than in pH 6.8
Mediumphosphate buffer solution for 10 h
Volume900ml
Temperature37±0.5℃
Sampling at1, 4, 6, 8, 10 and 12h
Wavelength234nm

Table 1: In vitro dissolution conditions.

Results and Discussion

Results TSN Description

In Chart 4, the appearance, melting point, and solubility of TSN were listed.

Chart 4: Telmisartan identification parameters.

Compatibility Studies

There was no loss of specific peaks or emissions of new peaks when comparing the DSC of the TSN thermogram to pure TSN, demonstrating that TSN is not incompatible with the polymers used (Table 2).

DSC sampleEndothermic events (°C)ΔH FusionInference
T onsetT peakT endEnthalpy (J)
Telmisartan195.54200.25211.28-298.08An endothermic peak
Telmisartan+ Polymers190.51195.84199.69-258.32A shift in peak to left due to positive
blending of Telmisartan with polymers

Table 2: DSC thermograms of drug and polymers used.

The FTIR spectra revealed that the usual TSN bands were not recovered in the physical combinations, indicating that TSN and EC and TFGSM polymers have no unfavorable interactions.

Calibration Curve: TSN calibration curve shows a slope of 0.0155x +0.06 with a regression (R2) value of 0.9909 (Figure 1).

Figure 3
Click to enlarge
Figure 3
Flow properties
FormulationAngle of repose (o)Bulk DensityTapped DensityCarr’s IndexHausner’s Ratio
FTMT-124.51±0.090.451±0.020.496±0.029.973±0.021.099±0.02
FTMT-227.67±0.150.526±0.010.541±0.012.773±0.041.028±0.01
FTMT-326.28±0.080.355±0.020.381±0.026.824±0.021.073±0.02
FTMT-425.29±0.260.402±0.030.446±0.019.865±0.051.109±0.03
FTMT-525.65±0.850.523±0.010.557±0.036.104±0.031.065±0.02
FTMT-629.68±1.050.502±0.040.533±0.025.816±0.021.061±0.03

Table 3: Flow parameters of prepared granules. Readings in mean ±SD; The number of trials (n=3)

Post Formulation Studies

The thickness (5mm) and weight of the FTMT were determined to be uniform, indicating that the medicine and excipients were added and blended systematically. The fact that the hardness was > 4Kg/cm2 and the friability loss was minor (1%) shows that the FTMT is robust. The TSN content in FTMT was deemed to be sufficient according to the criterion (Table 4). In vitro, TSN is released from the formulation in a controlled manner. One of the formulations that demonstrated regulated release over time was FTMT-5 (Figure 2).

Uniformity of weight (mg)Hardness (cm²)Thickness (mm)Friability (%)Assay (%)
FTMT-1298.8±1.744.8±0.044.52±0.040.61±0.0198.8±1.49
FTMT-2298.4±1.955.6±0.024.56±0.050.29±0.0197.8±2.68
FTMT-3299.1±1.844.9±0.074.59±0.090.57±0.0596.9±1.85
FTMT-4297.7±3.285.1±0.034.58±0.070.36±0.0299.7±2.05
FTMT-5299.3±2.265.8±0.094.52±0.090.59±0.0298.9±2.35
FTMT-6297.9±1.256.2±0.014.59±0.030.55±0.0197.2±1.65

Table 4: Physical description of the prepared matrix table. Values in mean ±SD; the number of trials (n=3)

Figure 4
Click to enlarge
Figure 4

Conclusion

In this study, the authors discovered that the Telmisartan matrix tablet extends the emission rate for more than 12 hours with enhanced bioavailability and no need for repetitive dosing and dose. It was also shown that Trigonella foenum-graecum seed mucilage when combined with Ethylcellulose, can be a good polymer for controlling drug release with fewer side effects and costs, as well as increased patient satisfaction and effectiveness.

Acknowledgments

The authors would like to thank Dr Reddy’s Labs, Hyderabad, and Telangana, India for providing the gift sample of Telmisartan.

References

  1. Kumar DJ, Ahad HA, Anuradha C, Kumar CS, Reddy B, et al. (2010) Dual acting oral floating matrix tablets of ranitidine hydrochloride. International Journal of Applied Biology and Pharmaceutical Technology 1(2): 1-6.
  2. Sharpe M, Jarvis B, Goa KL (2001) Telmisartan: a review of its use in hypertension. Drugs 61(10):1501-1529.
  3. Yusuf S, Diener HC, Sacco RL, Cotton D, Ounpuu S, et al. (2008) Telmisartan to prevent recurrent stroke and cardiovascular events. New England Journal of Medicine 359(12): 1225-1237.
  4. Vitale C, Mercuro G, Castiglioni C, Cornoldi A, Tulli A, et al. (2005) Metabolic effect of telmisartan and losartan in hypertensive patients with metabolic syndrome. Cardiovascular diabetology 4: 6.
  5. Benson SC, Pershadsingh HA, Ho CI, Chittiboyina A, Desai P, et al. (2004) Identification of telmisartan as a unique angiotensin II receptor antagonist with se- lective  PPARγmodulating  activity.  Hypertension 43(5): 993-1002.
  6. Hindustan AA, Babu UA, Nagesh K, Kiran DS, Madhavi KB (2012) Fabrication of glimepiride Datura stramonium leaves mucilage and poly vinyl pyrrolidone sustained release matrix tablets: in vitro evaluation. Kathmandu university journal of science, engineering and technology 8(1): 63-72.
  7. Chinthaginjala H, Gandla CB, Challa MR, Pradeepkumar B, Ahad HA (2019) Formulation and in vitro evaluation of floating tablets of dicloxacillin sodium using different polymers. Journal of Young Pharmacists 11(3): 247-253.
  8. Petropoulos GA (2002) Fenugreek: the genus Trigonella. 1st (Edn.), CRC Press, London, pp: 226.
  9. Pandey A, Sawarkar H, Singh M, Kashyap P, Ghosh P (2011) UV-spectrophotometric method for estimation of telmisartan in bulk and tablet dosage form. International Journal of Chem Tech Research 3(2): 657-660.
  10. Haripriya M, Antony N, Jayasekhar P (2013) Development and validation of UV spectrophotometric method for the simultaneous estimation of cilnidipine and telmisartan in tablet dosage form utilising simultaneous equation and absorbance ratio method. International Journal of Pharmacy and Biological Sciences 3(1): 343-348.
  11. Kondawar M, Kamble K, Raut K, Maharshi K (2011) UV spectrophotometric estimation of amlodipine besylate and telmisartan in bulk drug and dosage form by multiwavelength analysis. Int J ChemTech Res 3(3): 1274-1278.
  12. Ahad HA, Kumar BP, Haranath C, Reddy KS (2009) Fabrication and evaluation of glimepiride Cordia dichotoma G. Forst fruit mucilage sustained release matrix tablets. Int J Chem Sci 7(4): 2555-2560.
  13. Ahad HA, Rajesh V, Gupta M, Lasya D, Harish N, et al. (2010) Fabrication and in vitro evaluation of glimepiride hibiscus esculentus fruit mucilage sustained release matrix tablets. Int J PharmTech Res 2(2): 91-100.
  14. Kousar S, Ahad HA, Chinthaginjala H, Babafakruddin P, Lakunde J, et al. (2022) Gas Generating Floating Tablets: A Quick Literature Review for the Scholars. Asian Journal of Research in Chemistry 15(2): 171-175.
  15. Chinthaginjala H, Ahad HA, Bhargav E, Pradeepkumar B (2021) Central Composite Design Aided Formulation Development and Optimization of Clarythromycin Extended-Release Tablets. Indian Journal of Pharmaceutical Education and Research 55(2): 395-406.
  16. Raghu U, Ahad HA, Satish P, Siddeshwara S, Dhanalakshmi A, et al. (2018) A quick reference to plant gums and mucilages used as a tablet binder. Int J Pharm Sci Res 9(12): 207-210.
  17. Ishaq BM, Babu DC, Munna S, Ahad HA (2017) Quantification of tapentadol in rat plasma by HPLC with photo diode array detection: Development and validation of a new methodology. Future Journal of Pharmaceutical Sciences 3(1): 46-52.
  18. Krishna LV, Chandra PJ, Ragataragini T, Lakshmi BR, Kumar ES, et al. (2016) Formulation and evaluation of floating drug delivery system of enalapril maleate. Int J Trend Pharm Life Sci 2: 801-812.
  19. Hindustan AA, Haranath C, Yarragunta R, Kandlapalli S, Rashi A, et al. (2022) A Tablet Matrix with Hibiscus rosa Sinensis Leave Mucilage for Effective Treatment of Rare Lymphangioleiomyomatosis Using Sirolimus. Trends in Pharmaceutical Sciences 8(1): 43-50.
  20. Annepogu H, Hindustan Abdul A, Nayakanti D (2020) Determining the Best Poloxamer Carrier for Thiocolchicoside Solid Dispersions. Turkish Journal of Pharmaceutical Sciences 17(4): 372-380.
  21. Shravani Y, Ahad HA, Haranath C, Musa GBM, Adam AAO, et al. (2020) Comparative in vitro Relative examination of Dissimilar brands of Rabeprazole sodium Gastro- Resistant Tablets. Int J Life Sci Pharma Res 10(5): 1-5.
  22. Anuradha C, Ahad HA, Abhilash A, Prabhuraj K, Swapna K, et al Pharma Research Library. International Journal of Medicine and Pharmaceutical Research 1(1): 127‐134
  23. Patel J, Kevin G, Patel A, Raval M, Sheth N (2011) Design and development of a self-nanoemulsifying drug delivery system for telmisartan for oral drug delivery. International journal of pharmaceutical investigation 1(2): 112-118.
  24. Gaur PK, Mishra S, Bajpai M (2014) Formulation and evaluation of controlled-release of telmisartan microspheres: In vitro/in vivo study. Journal of food and drug analysis 22(4): 542-548.
  25. Chella N, Narra N, Rama Rao T (2014) Preparation and characterization of liquisolid compacts for improved dissolution of telmisartan. Journal of drug delivery.
  26. Patel B, Parikh R, Swarnkar D (2012) Enhancement of dissolution of telmisartan through use of solid dispersion technique-surface solid dispersion. Journal of pharmacy & bioallied sciences 4(S1): S64-S68.
