Siderophore Producer Pantoea Brenneri AS3 as a Fungicidal Agent

Introduction

Fighting against plant diseases caused by harmful microorganisms and increases the quality and productivity of economically important crops is an urgent problem of global agriculture. The national economy is experiencing a huge annual economic loss due to the development of fungal infections of grain and solanaceous crops [1]. Plant pathogenic fungi cause loss of major food crops of the world, namely barley, rye, durum wheat, maize, rice, potato, tomato.

The intensive use of chemical fertilizers and pesticides in agriculture ensures high productivity and quality, but this approach is expensive and creates risks to the environment and human health [2]. Because of the undesirable features of these substances in recent years a growing interest in environmentally friendly biological preparations. Different bacterial genera are vital components of soils. They are involved in various biotic activities of the soil ecosystem to make it dynamic for nutrient turn over and sustainable for crop production [3]. They stimulate plant growth through mobilizing nutrients in soils, producing numerous plant growth regulators, protecting plants from phytopathogens by controlling or inhibiting them; improving soil structure and bioremediating the polluted soils by sequestering toxic heavy metal species and degrading xenobiotic compounds (like pesticides).

Bacteria are the most abundant microorganisms within soil, and those that have a beneficial effect on plant growth or health are commonly referred to as plant growth promoting rhizobacteria (PGPR) [4]. The mechanisms by which PGPR can act beneficially on plant growth have not been fully elucidated, but proposed mechanisms include production of plant growth regulators such as indole-3-acetic acid (IAA), asymbiotic nitrogen fixation, solubilization of soil phosphorus compounds and other nutrients, and antagonism against plant pathogens through the excretion of siderophores, cellulose, protease, antibiotics and cyanide [5]. The range of useful properties of soil microorganisms is of interest to search for new strains that may be used as biopesticides and biofertilizer in agriculture.

Thus, the aim of the work was to study and characterization of antagonistic properties of Pantoea brenneri AS3.

Material and Methods

We used bacterial strain is Pantoea brenneri AS3, isolated from samples soil of the Republic of Tatarstan and identified by molecular genetic analysis methods. Bacteria were grown in medium LB [6] (G/l dH2O): Tryptone - 10; yeast extract - 5; NaCl - 5; agar - 2; pH 8.5 Following phytopathogenic fungi were used in these experiments: Alternaria alternate - Isolated from infected roots of lettuce and parsley. Fusarium solani isolate TVD_Fungal-Culture126; Fusarium tricinctum strain Z5; Fusarium oxysporum strain CEF-06; Fusarium avenaceum strain 1; Fusarium sp 1.5 isolated from infected potato tubers. Identification of the micromycetes conducted on morphological characteristics and by molecular genetic analysis methods.

The fungi were cultivated in the Czapek medium (NaNO3, 3.0 g; K2HPO4, 1.0 g; MgSO4 x 7H2O, 0.5 g; KCl, 0.5 g; FeSO4 x 7H2O, 0.01 g; agar, 15 g; distilled water, 900 ml; pH 4.5) [7]. The plates were incubated at 28°C for 5-14 days. Cultivation of bacteria was carried out in 100 ml flasks at a volume ratio of medium volume to the volume of the flask 1: 5 on a laboratory shaker intensity 200 rev / min at a temperature of 37ºC rocking. Seed served 12- hour inoculum. Characteristics of the biochemical properties of the strain P. brenneri AS3 production siderophores and antifungal metabolites.

Siderophore production was assessed on chrome azurol S (CAS) agar plates by observing the color change from blue to colorless. The plates were incubated at 30°C for 5-7 days [8]. Seeding was carried out in duplicate with 5 ml of cell suspension, washed M9 minimal medium, previously grown on a rich medium LB. M9 media [9]. (G / l dH2O): Na2HPO4 * 12H2O - 16.82; KH2PO4 - 3; NaCl - 0.5; NH4Cl - 1; pH 7.4. On medium, in addition after autoclaving made sterile micronutrients, 1M MgSO4 * 7H2O - 2 ml; 1M CaCl2 - 0.1 ml; 20% Glucose - 10 ml. We used as a control strain Salmonella typhimurium, which forms siderophores. The density of the test and control cells of the strain was OD600=0.1.

The ability to form a line of catechol siderophores studied on M9 minimal salt medium in a volume of 20 ml with the addition of bipyridyl (3.36 L) at Arnow method. Sowing was carried out on medium, making the cell suspension Pantoea brenneri AS3 strain washed M9 medium until OD600 = 0.1. The culture was incubated for 72 hours at 37° C with shaking 200 rpm / min. As a control, an M9 medium supplemented with 5 m FeSO4, sowing was conducted in the same manner as in the experiment. Catechol siderophore concentration measurement series were carried out as follows: every hour in aliquots of 400 ul and was centrifuged at 13 k / min for 2 minutes, then a 96-well plate were added 50 ul of the supernatant; was added 50 ul 0.5 M HCl, and the mixture 50mkl NaMoO4 NaNO2 and 50 .mu.l of 1M NaOH. Absorption measurements were performed on a spectrophotometer at a wavelength of 490nm.

A calibration curve is constructed by 2,3- dihydroxybenzoic acid (2,3-DHBA) from 0 to 1000 mM in increments of 25 mm. According to the formula of the calibration curve y = 0.0019x + 0.0401 we found the amount of siderophore produced. Theoretical value of biomass is determined by the formula: M = (A-B) 1000 / V, where M - dry biomass g / l; A mass of cells with Eppendorf; B - mass of the empty Eppendorf; V - volume of QOL taken for centrifugation ml. The actual measured cell biomass after centrifugation by drying in a vacuum evaporator firm Labconco FreeZone 2.5.

In Vitro Antagonistic Activity Assay

The interaction of Pantoea brenneri AS3 with pathogenic fungi was performed using the in vitro dual- culture analysis. The 8 mm diameter mycelial disc was cut from the target fungi colony that had been cultured on Czapek plates for seven days was placed on fresh Czapek plate. Test bacterial strains grown on LB plates for 48 h were cut with a sterile scalpel (8 mm). Bacterial blocks were placed at the distance of 3 cm from the fungal block on the same agar plate. Control plates without bacterial strains were prepared simultaneously. The plates were incubated at 28°C for 7-14 days and examined for the inhibition zones of fungal growth. To calculate the percent of inhibition we repeated these experiments for three times. The growth inhibition of the test fungus was calculated using this formula:

Inhibition (%) = [(R-r)/R x 100] where R- (A control value) represents the radial growth of fungus in control sets. r- The radial growth of the fungus in sets with bacteria.

Results and Discussion

Strain Pantoea brenneri AS3 was isolated from the forest soil Republic of Tatarstan, Russia. The isolate was characterized as Gram-negative, motile and rod-shaped bacterium 0.5 μm to 1.5 μm length. Colonies were round, smooth and shiny after incubation at 37°C for 24h. Longer incubation (2–3 days) of the isolate resulted in production of yellow pigment.

Iron is an important nutrient for all life forms, but in the soil it is in the insoluble trivalent form (Fe3+). Siderophores are low molecular weight redox active substances that reduce Fe3+ to Fe2+ and are produced by various microorganisms in the soil. Microorganisms produce siderophores for their own purposes and indirectly act as biocontrol agents since they lead to competitive iron deficiency in phytopathogenic organisms.

The strain Pantoea brenneri AS3 demonstrate antagonistic activity against all studied phytopathogenic fungi. Antagonistic activity was measured on the basis of growth inhibition of micromycetes colony compared to the control plates. The highest antagonistic activities of both strains were observed against F. solani (87%). A high degree of growth inhibition (from 58% to 87%) of

Click to enlarge

the bacterial strain discovered in relation to all the investigated representatives of the genus Fusarium, genus and Alternaria alternate (71%). Minimum ability to inhibit fungal growth was observed in relation to the genus Bipolyaris sorokiniana - 33%. Thus, it was found that the strain Pantoea brenneri AS3 during growth forms compounds having fungicidal activity towards micromycetes genera Fusarium, Alternaria and Bipolyaris. The presence of the fungicidal activity of the strain P. vagans can serve as a basis for the creation of new microbial Agri to address the problems associated with plant diseases caused by members of the genus Fusarium, Alternaria and Bipolyaris (Figure 1).

maximum illumination zones (2.0 cm) were observed on the third day of incubation. As a positive control for the products used siderophore strain of Salmonella typhimurium (Figure 2).

Click to enlarge

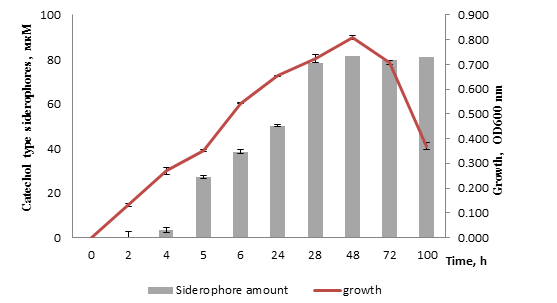

The presence of siderophore of the catechol row was determined by the Arnou method, based on the formation of a complex of a metal with the hydroxyl group of siderophores. Catechol type siderophores at a concentration of 26.78 μM (Figure 3) were detected for 5 h of cultivation of P. brenneri AS3 strain in M9 liquid medium. The maximum siderophore production (82.05 μM) occurred at 28 hours of cultivation, whereas in the control strain Salmonella typhimurium, the maximum siderophore production (50 μM) occurred at 24 hours of cultivation. At the time of maximum siderophore accumulation, the OD590 cell density was 0.739, and the biomass was 6.25 g / l (0.0070 g with 20 ml of medium) (Figure 3).

Click to enlarge

Based on a study showing the high production of siderophore during short cultivation, P. brenneri AS3 strain can be recommended as the basis for creating innovative microbial agrobiotechnologies to solve problems associated with iron deficiency. Based on the study, indicating a high siderophore production over a short period of time, P. brenneri AS3 strain can be recommended as the basis for creating innovative microbial agrobiotechnologies to solve problems associated with plant diseases caused by phytopathogenic microorganisms and iron deficiency. Thus, the strain P. brenneri AS3 has multiple positive effects that can affect the growth and vital activity of plants.

The biocontrol function of the P. brenneri AS3 strain with respect to the pathogenic microflora of plant roots is, on the one hand, due to the stimulating effect on the plant, improving its vital status (increasing the intake of iron microelement), on the other hand, by isolating fungicidal substances and displacing phytopathogenic bacteria and fungi from the rhizosphere as a result of competitive suppression of their growth.

Acknowledgment

The reported study was funded by RFBR, project number 19-38-90208.
