Phytoplankton in Polishing Ponds in the Post Treatment of Anaerobic Reactor Effluent

Introduction

Polishing ponds is the term used for the efluente after- treatment units from UASB reactors since these still have the additional function of removing organic matter. These ponds can be dimensioned as maturation ponds due to high DBO removal that occurs in the anaerobic reactors. Because they are designed with low depths, photosynthetic activity is intense, which makes them more efficient at removing pathogens and also nutrients, especially nitrogen. For the phytoplankton organisms, some conditions of the aquatic environment are essencial to ensuretheir viability [1]. The characteristics of these communities in polishing lagoons depend on some factors such as the light penetration, the temperature and the movement in the water column. However, optical properties, nutrient availability and temperature are important parameters because they directly impact on microorganisms and indirectly on the water viscosity.

Second basically algae control the treatment efficiency and effluent quality, so this system should be designed to optimize the concentration and diversity of species of algae present [2]. The major classes of algae found in stabilization ponds are: Cyanobacteria, Chlorophyceae, Bacillaryophyceae, Euglenophyceae and Zygnemaphyceae, varying their species in each type of lagoon and environment.

The Chlorophyceae class is characterized by the high richness of taxa in comparison to the other classes, and its occurrence is notably observed mainly in brazilian continental waters, eutrophic systems and environments with organic matter. According to the Euglenophyceae only use ammonia as a nitrogen source, therefore it is more dependent on the existence of ammonia nitrogen than organic matter, which explains the presence and frequency of these genres in the stabilization ponds treating domestic sewer, considering the high concentrations of ammonia nitrogen in this environment [3]. The cyanobacteria are tolerant to organic pollution and the main genera found in stabilization ponds are:Oscillatoria,Phormidium, Microcystis and Anabaena[4]. Thus, considered as a variable that indicates the aquatic environment trophic state and as a useful tool in assessing the impact of organic and inorganic contaminants, this study aimed to determine the occurrence and frequency of phytoplankton in polishing ponds (experimental scale) of continuous and semi- continuous flow used in post-treatment of anaerobic efluente, whose final effluent in real scale are usually discharged into the environment, affecting water bodies used as a source of water for human consumption.

Material and Methods

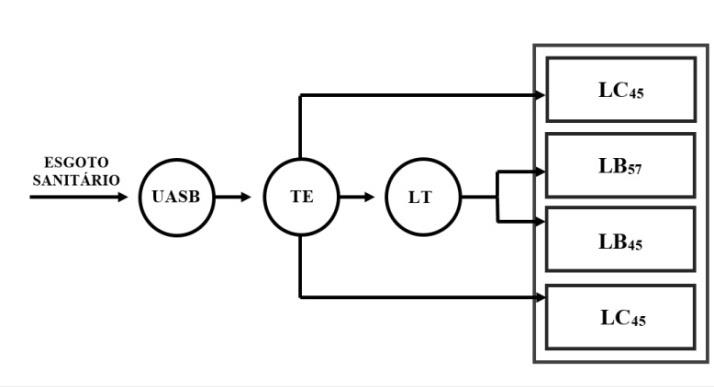

Study Location: The study was conducted at the Experimental Biological Sewage Treatment Station (EXTRABES), located in the city of Campina Grande / PB (07º 14 '22' 'S and 35 ° 53'05' 'W) and monitored from January to July 2015. Experimental System: It consisted of a UASB reactor (built in glass fiber, volume of 450 L, hydraulic retention time (HRT) of eight hours) and four polishing ponds, two of which presenting continuous flow and two characterized by a semi-continuous system (Figure 1). The raw sewage (EB) that fed the UASB came from the the sewage system of the Water and Sewage Company of Paraíba (Cagepa) east interceptor, in Campina Grande / PB, passing by the premises of EXTRABES and was conductedto a 1,000 liters water reservoir, with a continuous flow,through the force of gravity into the UASB reactor. This reactor’s effluent was directed to an equalization tank (ET) and by gravity to continuous flow ponds (LC57 and LC45) and an overflow pond (LT) with with capacity of 430 liters and TDH of 2,4 days, besides feeding the two lagoons that operated in semi-continuous systems (LB45 and LB57) (Figure 1).

Click to enlarge

The four pools were constructed in stone masonry and its characteristics are shown in Table 1.

For qualitative analysis of phytoplankton collections were made at three points in the horizontal plane of the ponds (beginning, middle and end) at different depths: in LC57 and LB57 algae and cyanobacteria were identified in the collected samplesat a depth of 10 cm and 50 cm and in LB45 LC45at a depth of 10 cm and 40 cm. For this, PVC column collectors were used, which were perfectly cleaned and introduced closed and open in each of the selected depths measured in a graduated rule in the tube. The samples were stored in new 500ml PET bottle covered with aluminum foil to avoid exposure to light. To each bottle was added 4 ml of Lugol's solution(I2+KI)4% for phytoplankton preservation and thenwas peformed its idenfication. The identification was done with binocular Olympus CBA microscope, magnification x 400. The classification for classes and genres followed [5]. The relative abundance (A) of each taxon was calculated from the direct count of organisms and the results transformed to percentages according to Equation 1:

At where: A: relative abundance. N: number of identified taxa individuals. n: total number of individuals in the sample. The frequency of occurrence (F) was expressed as a percentage, taking into account the number of samples (Equation 2).

( ) At where: Pa: number of samples in which the taxon occurred. P: the total number of analyzed samples.

The frequency of occurrence of the species was evaluated based on the rating, considering constant when exceeding 50%, common when it was between 10% and 50%, and rare when it was up to 10% [6].

Results And Discussions

According to, the chemical composition of anaerobic sewage treatment effluent is suitable for algal growth. Nitrogen compounds are converted into ammonia, an important source of nitrogen for the micro-algae [7, 8, 9, 10]. Another advantage for the use of anaerobic effluent to the growth of microalgae is the presence of CO2 in the form of bicarbonate, and organic acids which are used in heterotrophic/mixotrophic growth of some microalgae [11].

In the study, the phytoplankton community was composed of 20 taxa distributed in five taxonomic classes, 7 belonging to Cyanophyceae (35%), 5 to Chlorophyceae (25%), 4 to Bacillariophyceae (20%), 2 to Euglenophyceae (10%) Zygnemaphyceae and 2 (10%). Six of the 20 taxa were identified to species level (Cylindropermopsis raciborkii, Monoraphidium arcuatum, Monoraphidium minutum, Phacus longicauda, palea Nitzschia, and Phacus tortus)and fourteen in the genus level(Gomphonema sp, Navicula sp, Cymbella sp, Scenedesmus sp, Chlorococcum sp, Chlorella sp, Cosmarium sp sp Closterium, Phormidium sp, Lyngbya sp, Gleiterinema sp, Microcystis sp, Oscillatoria sp and Planktothrix s_p_). There was a predominance of Chlorophyceae, which were present in the four lagoonsof the system, followed by, Euglenophyceae,Cyanobacteria Bacillariophyceae and Zignemaphyceae.

Click to enlarge

The Chlorophyceae are usually recorded as an important class in the composition of the phytoplankton community. This group has a great ability to develop in a variety of habitats. Usually they are registered in environments with varying trophic degrees, but in greater numbers in eutrophic environments. In the study, the genus Chlorella sp was dominant and frequent in all ponds (Table 2). According in the stabilization ponds, it appears the prevalence of green algae (Chlorophyta), highlighting the microalgae Chlorella sp genre, which are unicellular microorganisms, chlorophyll, without flagella and with great ability to perform photosynthesis [12]. Scenedesmus sp was the common genus in the LB57 ponds, LB45 and LC45 (Table 2). These genres are characterized by being surface algae, for their capacity to produce odor and taste of grass in the water and live well in media with high mineral content and contaminated effluents [13]. Their size may vary from 3-31 µmdepending on the species [14]. They are small and not mobile, with colonies consisting of cells aligned on a flat board and its colonies are usually composed of 4-8 cells [15]. It is relevant that Chlorella and Scenedesmus exhibit high levels of carbohydrates (mainly starch). Carbohydrates from microalgae can be hydrolysed and converted into glucose, which is a significant substrate for heterotrophic microorganisms (such as yeast, bacteria and fungi) for the production of biofuels.

Table 2: Composition and frequency of the observed Clorophyceae occurrence monitoring the liquid mass of the polishing ponds. * CT: Constant; CM: Common; A: Rare; ND: Not Detected The cyanobacteria class is resistant to pollution, waste and anaerobic environments with a high organic load. The presence of about 35% in the study may be related to high turbidity, which discriminates the group cyanobacteria, especially those fixing N2 [16]. According cyanobacteria have the ability to produce acinetos, which function as resistance spores under adverse conditions, allowing the survival of the cell for long periods; it may form gaseous vacuoles called aerobes, which enable vertical migration in the water column, and can fetch the depth at which both light intensity and the concentration of nutrients are favorable; They tolerate large variations in temperature; They are able to store phosphorus in the form of polyphosphates grains in the cytoplasm and can be toxic to other organisms [17].

The semi-continuous flow ponds showed higher frequencies of cyanobacteria, results favored by the transhipment pond (LT) by reducing total solids and subsequently reducing the effluent of these polishing ponds in a semi-continuous system. Filamentous species of cyanobacteria (Cylindropermopsis raciborkii, Phormidium sp, Lynblya sp, Gleiterinema sp, Oscillatoria sp and Planktothrix sp) showed competitiveness with other phytoplankton species. For under limited conditions of nitrogen, but other nutrients available, growth and reproduction of cyanobacteria are possible, which favors the flowering of such species in different types of environments. Probably the competitive success of cyanobacteria found, especially the dominant filamentous species (Planktothrix sp) (Table 3) in relation to other species is based on physiological, ecological and adaptive strategies of the same, and strengthened due to the provision of suitable conditions for their development [18].

Planktothrix sp is a species having solitary trichomes that remain in the water column. The presence of aerobes gives its buoyancy. Adapted for low light intensities, and by the high turbidity which itself can cause and suppress the growth of other phytoplankton species by limiting the entry of light through the water column [19].

Table 3: Composition and frequency of occurrence of cyanobacteria observed monitoring the liquid mass in polishing ponds. * CT: Constant; CM: Common; A: Rare; ND: Not Detected The Euglenophyceae class has preferencefor high levels of ammonia, being favored at high biochemical oxygen demand conditions, and with high load of organic matter and may be a biological indicator of organic pollution of water, the pigmented flagellates genres as Euglena, Lepocinclis, Phacus and Trachelomonas stand out for the presence in shallow biotopes that are rich in organic matter, such as dams, reservoirs, rivers and lakes, and stabilization ponds [20]. There was a continuous presence of the _Phacus longicauda_species in all studied ponds (Table 4).

Table 4: Composition and frequency of occurrence of the observed Euglenophyceae monitoring the liquid mass in polishing ponds. * CT: Constant; CM: Common; A: Rare; ND: Not Detected According Bacillariophyceae (diatoms) respond to low phosphorus concentration giving them a competitive advantage towards the other algal groups [21]. In the study, four taxa were identified: Gomphonema sp, Navicula sp, Nitzschia palea and Cymbella sp (Table 5). These

species are very sensitive to variations in the chemical composition of the liquid mass. They have as a pigment chlorophyll a, c1 and c2, carotenoids and xanthophylls and the cell wall is composed of silica [22]. However, only _Niszchia palea_has been frequent in the four polishing lagoons.

Table 5: Composition and frequency of occurrence of the observed Baccilariophyceae monitoring the liquid mass in polishing ponds. * CT: Constant; CM: Common; A: Rare; ND: Not Detected The division had Zignemaphyceae low diversity (20%) and frequency of occurrence in the lakes (Table 6), mainly the ratio of representatives of this class with acidic water [23]. In turn, Cosmarium sp may occur in the clearest waters and in environments with eutrophic conditions, which is the case of polishing ponds. This genre was evidenced in LC57 as Table 6 [24].

Conclusion

The treatment of domestic sewage in UASBs reactors followed by polishing pond is a sustainable alternative able to preserve the advantages of operational simplicity and low operating and maintenance costs. The phytoplankton community favors the environmental conditions in aquatic environments. Its ability to synthesize organic matter, rapid development, multiplication and sudden disappearance, are dynamic aspects that indicate the quality of the environment in which they are present. In addition, work on the physical and chemical conditions, changing color, turbidity, oxygenation, alkalinity and other properties of the water they inhabit.

Specifically, in sewage treatment, the phytoplankton contributes by embodying photosynthetic pigments called chlorophyll, thus produces oxygen, which corresponds to its main function in the stabilization ponds, directly influencing the realization of aerobic decomposition processes. In the study, 20 taxa were identified over five taxonomic classes: Cyanobacteria (7 taxa), Chlorophyceae (5 taxa), Bacillariophyceae (4 taxa), Euglenophyceae (2 taxa) and Zygnemaphyceae (2 taxa). There was a predominance of Chlorophyceae, which was constant in the four system ponds, followed by Cyanobacteria, Euglenophyceae, and Zignemaphyceae Bacillariophyceae.The microalgae Chlorella sp was the most representative species of microalgae, while Planktrothrix sp was the dominant cyanobacteria.

Importantly, although it has not been performed cyanotoxins detection analysis, the marked presence of species of cyanobacteria during the entire period studied are described in the literature as producing toxins. The release of effluents of these ponds in the environment creates great risks to public and environmental health. Therefore, the discharge of these organisms in water bodies represents an important toxic potential of water, affecting its multiple uses.
